Installation Guide

2of2
2016 QuoizelInc.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
CSE9010PN,CSE9010EK
FINISH: PALLADIAN BRONZE
EARTH BLACK

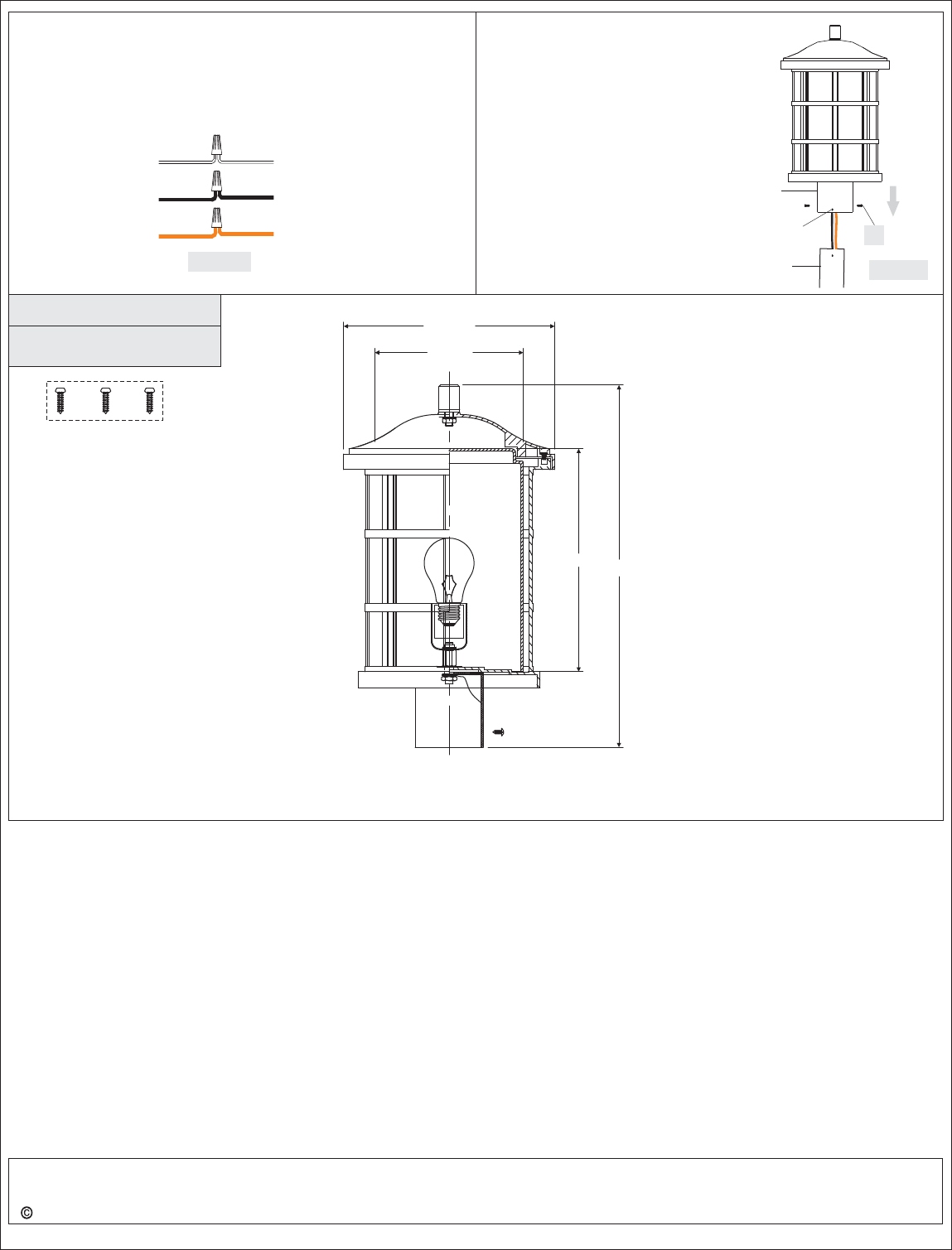

STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
White wire
from supply
White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 4
STEP 5 - Attach Fixture Body
to Post
A. Coat the top 1” of the Post
with Clear Silicone Caulk (not
supplied) and position the
Post Fitter onto the Post. Be
sure to seat it completely,
aligning the holes in the Fitter
with the 1/16” Pilot Holes
drilled into the Post.
B. Secure the Fixture to Post
with (3) Mounting Screws (A).
Your fixture is now
assembled and ready to use.
Enjoy!
Figure 5
Post
Post Fitter
Mounting Hole
10”Dia.
7”Dia.
17.25”
10.5”
A
ReleasedDate:2016-09-30
