Installation Guide

1of2
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
2016 QuoizelInc.
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)MediumBase150WbulbMaximum.
www.quoizel.com Care+Maintenance
LightSource:
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:
Preparation:
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Assembly Instruction Sheet #IS-CSE9010
For Styles CSE9010PN,CSE9010EK
Thank you forpurchasing a Quoizelproduct.
Need assistance withparts or assembly?Call Quoizel customerservice at 1-800-645-3184
or visit us on-line at www.quoizel.com

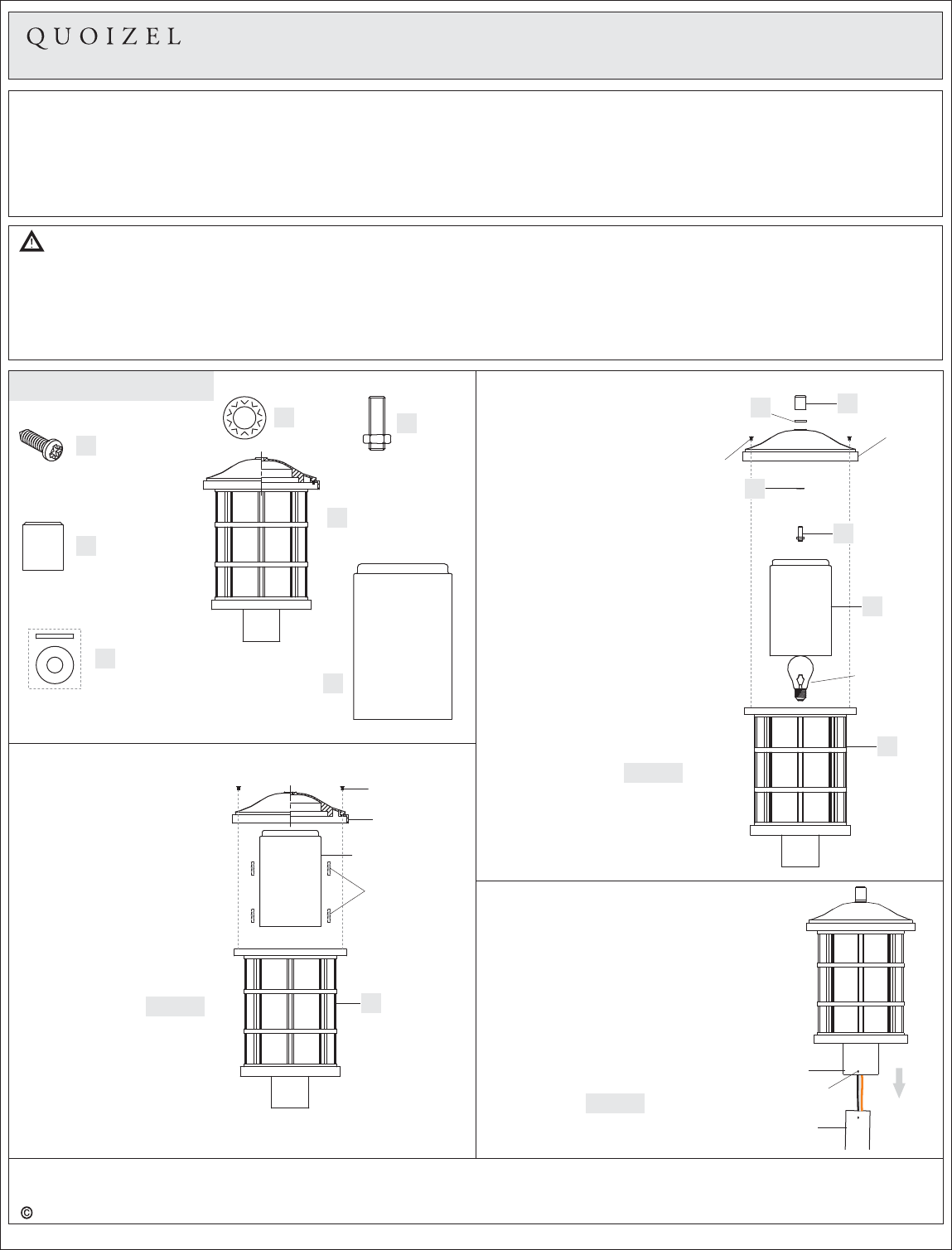

Package Contents
A
Mounting
Screw
x3
Figure 1
STEP 1 remove Fixture
Hood, Shade and Styrofoam
from Fixture Body
-
A. Remove Fixture Hood by
unlock Lock Screw from
Fixture Body (G).
B. Remove the Package
Material and Shade inside
the Fixture Body (G).
Lock Screw
Fixture
Hood
B
Shade
STEP 2 Install Shade,
Fixture Hood and Bulb to
Fixture Body
-
A. Pass Lock Washer (D),
Fixture Hood and Water
Proof Washer (B) over
the Nipple (E), secure
by threading Finial (B)
onto Nipple (E). Hand
tighten until sung.
B. Insert bulb and screw
snugly into place.
C. Place Shade (G) into
Fixture Body (F)
properly. Then Place
the Fixture Hood onto
the top edge of the
Fixture Body (F) and
secure with Lock
Screws. Tighten until
snug.
Fixture
Hood
Lock
Screw
Bulb (not
Supplied)
F
Figure 2
STEP 3 Drill Pilot Holes on Post-
A. Carefully fit the Post Fitter over the
end of the Post (not supplied), making
sure the Post Fitter is fully seated.
B. Mark the drill point for the (3)
Mounting Screws, using (3) Mounting
Holes as reference. After marking hole
locations, remove fixture from post
and drill 1/16” pilot holes for screws.
Post
Post Fitter
Figure 3
Mounting Hole
ReleasedDate:2016-09-30
B
Finial
x1
C
Water Proof
Washer
x1
D
Lock
Washer
x1
E
Nipple
x1
Fixture
Body
x1
F
Shade
x1
G
D
E
G
B
C
Package
Material
