Installation Guide

4 of 5
2020 Quoizel Inc.
visit us on-line at www.quoizel.com

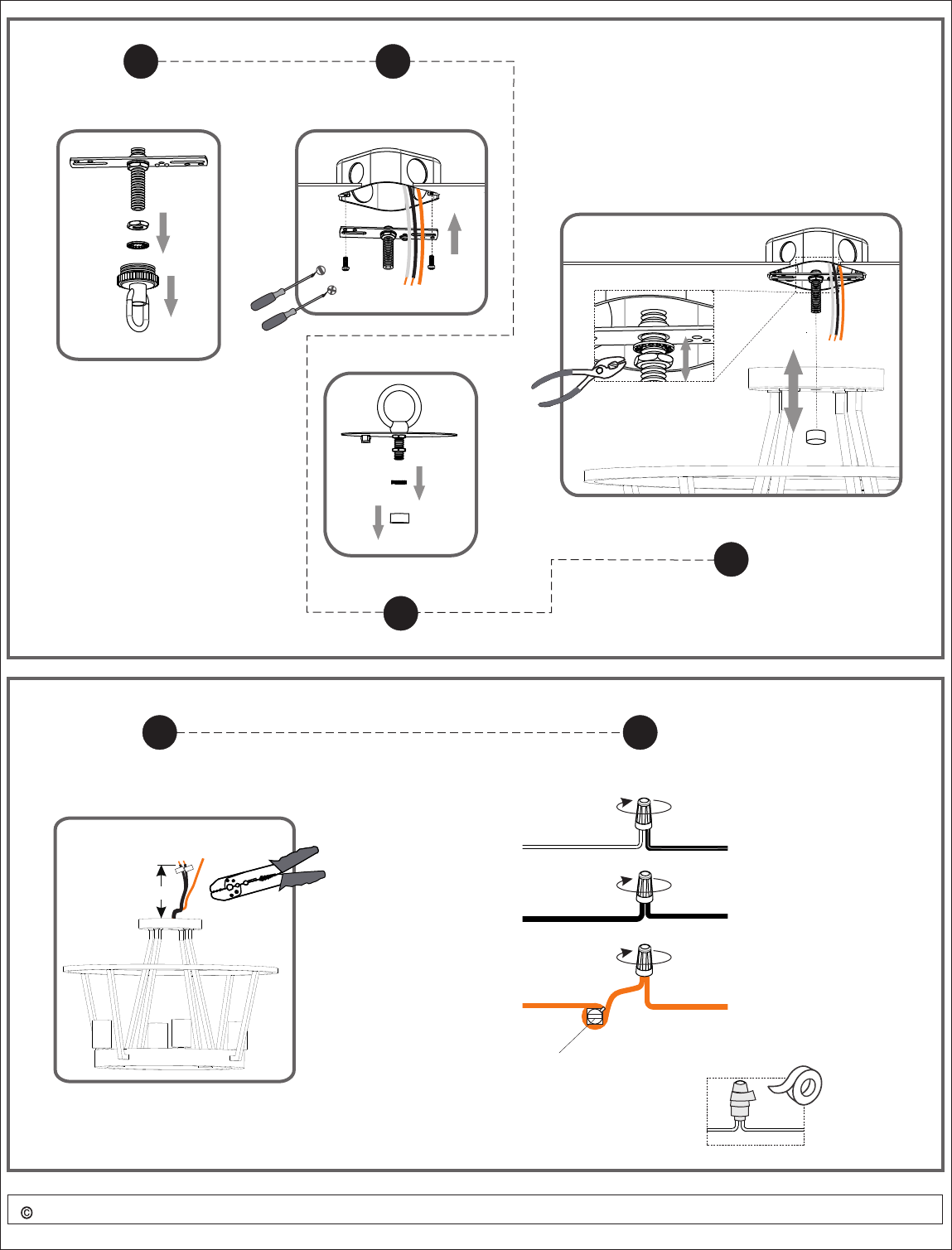

STEP 1B
1 2
4
Install crossbar assemblyRemove canopy chain loop,
one lock washer and one hex nut
Test fitting ceiling canopy to nipple
STEP 2B
1 2
Step 1
Cut supply wires
N
L
*Green Ground Screw
on crossbar optional
White wire (neutral)
from outlet box
Ground wire
from Fixture
Black or Red wire (hot)
from outlet box
Bare or Green ground wire
from outlet box
Supply wire from fixture
ribbed side or identified
with the Label “N”
supply wire from fixture
smooth side or identified
with the label “L”
10"
Released Date: 2020-03-01
3
Remove lock ball
and knurled nut
