Instructions / Assembly

Tools Required For Assembly
4mm & 5mm allen wrenches.
#2 Phillips & #2 Square screw driver.
1/4” x 20 thread tap.
1/4” Drill bit

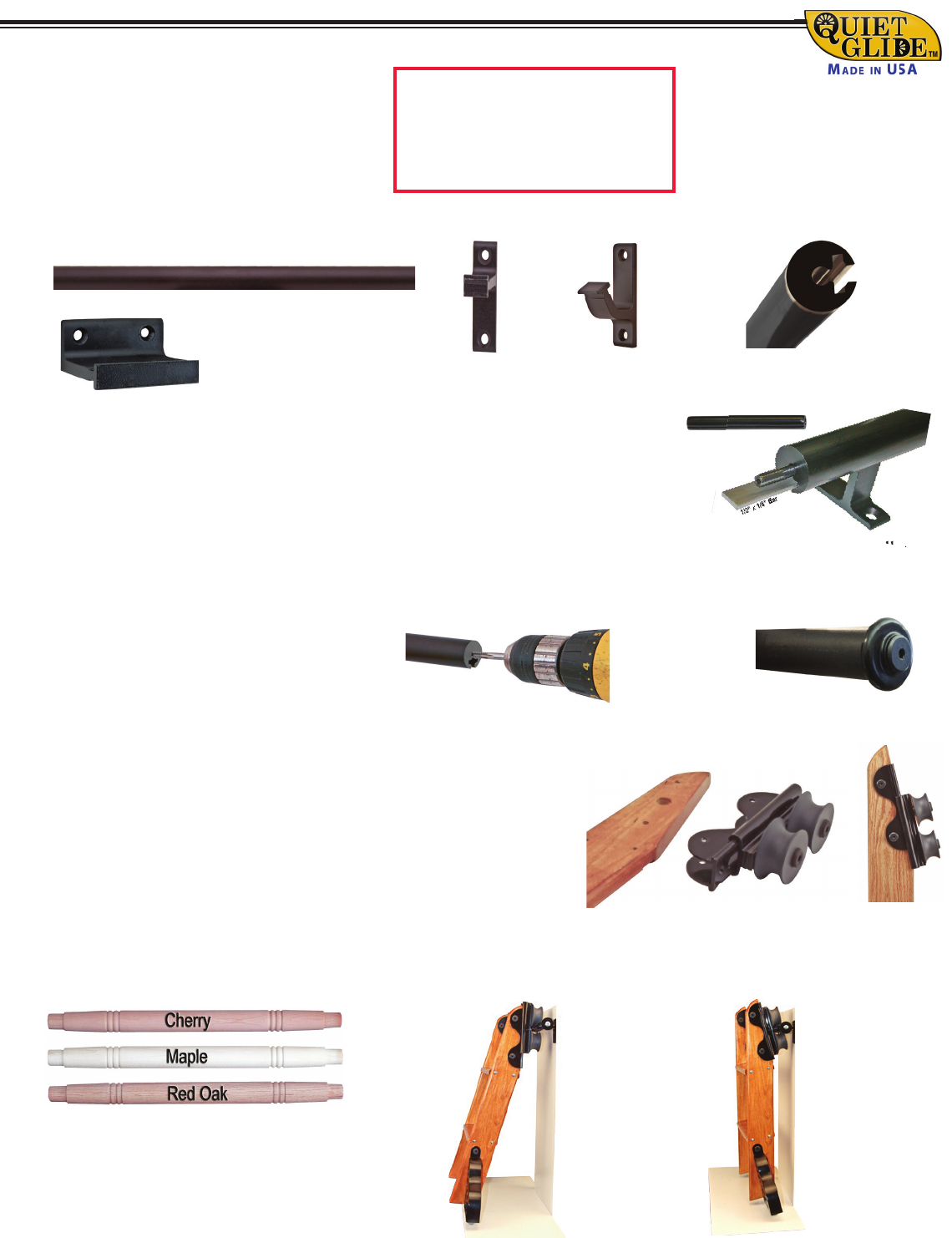

Step 1: Rail Installation
(A) Slide brackets into rail, recommended maximum spacing 32 inches apart. Pre-drill holes in wood if
needed and screw brackets in place.
End View
GENERAL INSTALLATION/SPECIFICATION GUIDE
Please Note!!
Horizontal Bracket
(Roller type)
(C) Tap the end of the rail with a ¼” x 20 tap (not supplied) to screw in the end stop  nial (done before installation
of rail). Install end cap with screw provided using a 4mm Allen wrench.
Note: Leave at least a 7 inch clearance above the rail for the top guide hardware to operate properly, and allow the
ladder to move against the wall for storage.
Rolled steel pin
(B) Use the splice kit to connect rails together. (If applicable)
Insert roll pin halfway into one of the rails. Slide the steel bar half-way into rail.
Secure the splice kit to rail on both sides by tightening the set screws.
Tap the end of the rail with a ¼” x 20 tap (not supplied) to screw in the end stop  nial (done before installation
Aluminum Rail Rod
Vertical Bracket
(Roller type)
Vertical Bracket
(Hook type)
Step 2: Ladder Assembly (if applicable)
Assemble the steps onto the side rails with glue and screws. Glue and pin nail the top turned rung into place.
(B) Drill holes and install top guides to ladder centering
the top dowel (top dowel recommended) of the ladder.
 e placement of the holes will allow a small adjustment
of height of ladder, either up or down.
Top Turned Rung
16-1/4” long x 1-1/4”Dia., 7/8” Dia. ends.
14-3/8” Inside Width Un nished
Install Top Turned Rungs
(C)
Line up bottom rollers vertical to the  oor
when ladder is in the climbing position Pre-drill
holes and install bottom rollers.
Ladder in the
climbing position
Ladder in the
stored position
Use a forstner bit, drill 7/8” hole part way
through for the turned rungs
Part# Description
QG.620.08 Extra Step Support- Black
QG.620.02 Extra Step Support- Satin Nickel
Step 3: Ladder Hardware Installation
(A) Install steps support rods under each step using 5mm allen
Note: Proper Pre-drilling of holes for the wood screws on the bottom of the ladder will prevent splitting of the ladder side rails
