Installation Manual

BI 7.2.3-35 Sep-2016, Rev 7
Follow all the directions of the rack
manufacturer as well as the module
manufacturer.
All roofing manufacturers’ written
instructions must also be followed
by anyone modifying a roof system.
Please consult the roof manufactur-
er's specs and instructions prior to
touching the roof.

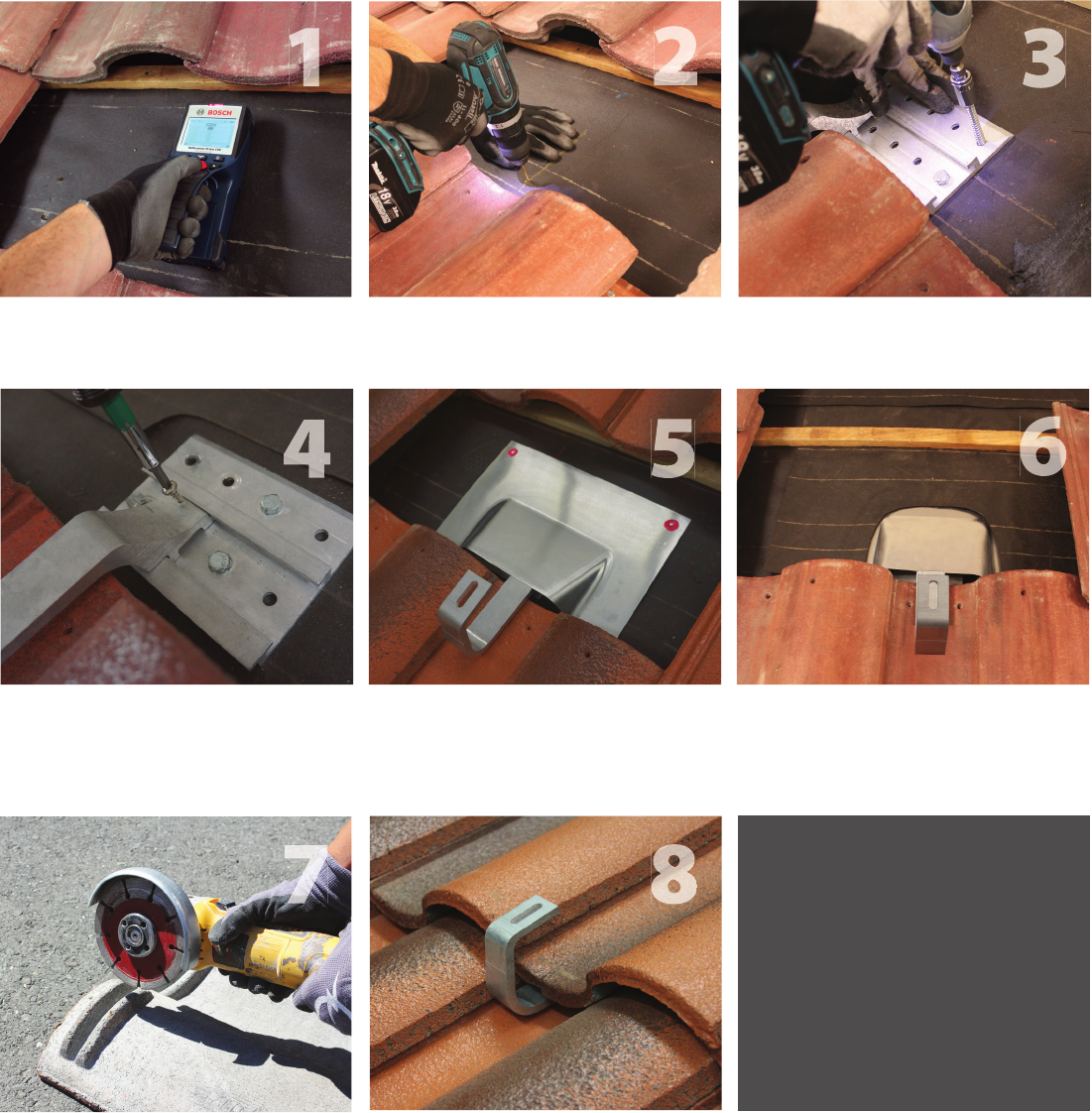

Remove the tile at selected location of the mount.
Locate and mark the center of the ra er.
2
3
8
1
Rest the base plate over center of ra er and mark
center of holes. Drill two 7/32" pilot holes and fill with
sealant compatible with roofing materials.
Connect hook to base plate and drive lag screws into
ra er through the two holes to a solid, snug fit. DO
NOT over tighten lag screws, this may compromise
their holding strength.
Bolt the bottom-mounted rail of your choice to the
hook, using the rail manufacturer's hardware.
Slide hook into desired position within valley of the
tile . Hook must not overhang the sides of the base
plate. Drive self-tapping screw using a #3 Phillips bit
on a screw driver or drill with clutch set at a medium
torque, to secure hook to base. Do not use impact
gun on screw.
6
7
4
Waterproof at underlayment level according to
roofing manufacturer instructions and Tile Roofing
Institute Guidelines.
Cut a clearance notch in the weather guard lug using
a grinder with a tuck point blade. Make sure the tile
seats back down in it's original position. Leave at
least " of tile to prevent breaking through.
5
Carefully clean the underlayment then apply bead of
sealant compatible with roofing materials in the shape
of an upside down U on the backside of the sub-flashing,
see example on page 2, and install flashing over mount.
Fasten sub-flashing to deck with one roofing nail in each
top corner. Do not nail bottom corners.
Quick Hook SB & LB
Instructions for Installing Standard and Low Height Hooks for Bottom Mount Rails
®
Installation Tools Required: stud finder, tape measure, utility knife, drill with 7/32" bit, impact drill with 1/2" socket, #3
phillips power bit, caulking gun, appropriate sealant compatible with roofing materials, roofing bar, hand broom, electric
grinder with a 4.5" triple sandwich tuck point blade.
1
