Lowering the Frames from the First Locking Position
Lowering the QuickJack’s Frames from the First Locking Position is somewhat different from lowering
them from the Top Locking Position.
⚠ WARNING When lowering QuickJack Frames, make sure the Lock Bar and the Release Cam
stay in their tracks. If they get knocked sideways, for example, they can get stuck
on the rail of the track, which could result in the QuickJack not lowering correctly.
To lower QuickJack Frames from the First Locking Position:
1. Press and hold Up on the Pendant Control until the Release Cam clears the Lock Block.

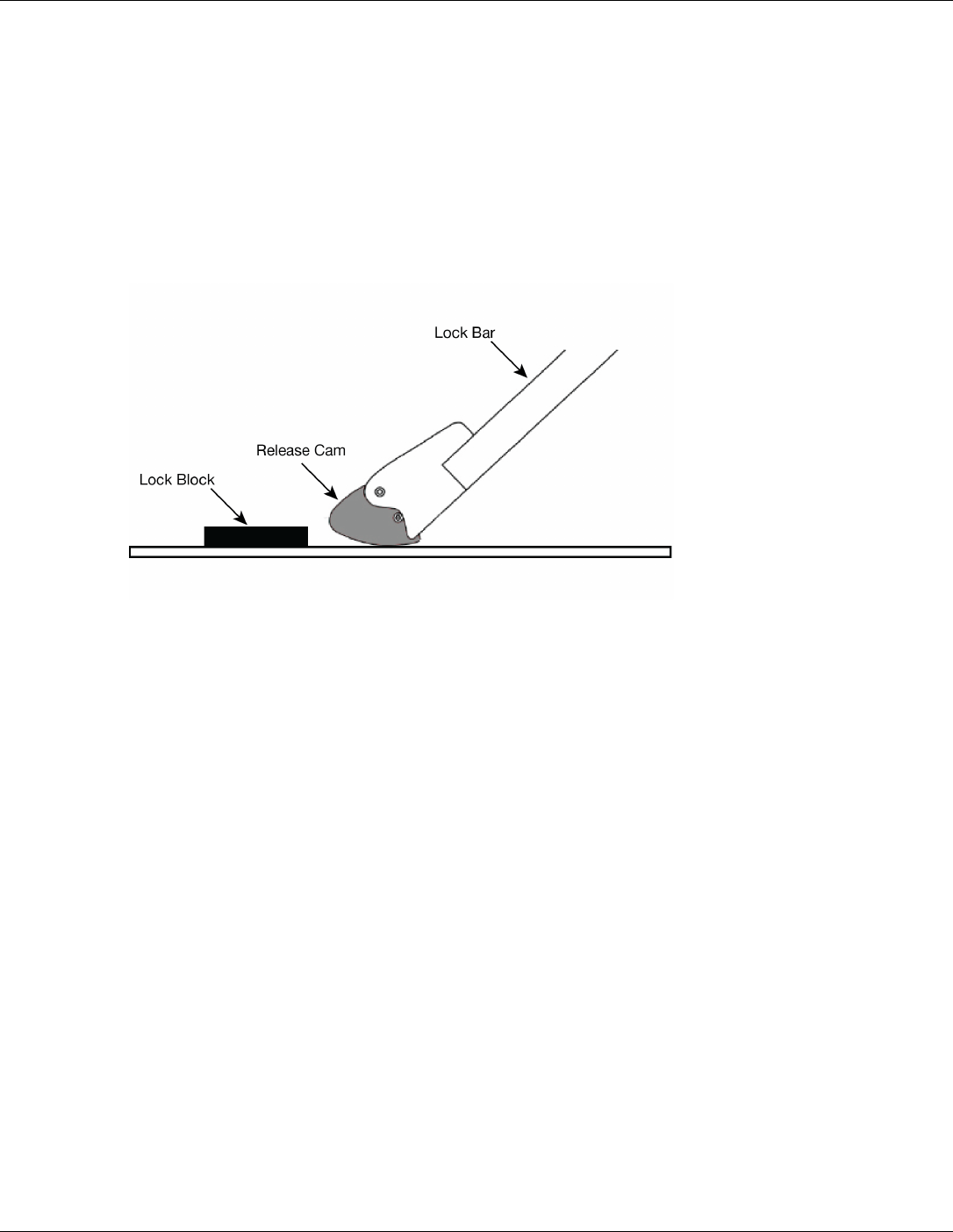

Drawing shows the Release Cam and the Lock Bar moved back from the locking position.
2. Press Down until both QuickJack Frames lower to the ground.
Release the Down button if either side does not clear the Lock Block.
Note: QuickJack recommends pressing Down for a few seconds
after the Frames are on the
ground; this ensures that as much Hydraulic Fluid as possible returns to the Fluid Reservoir.
3. Remove the QuickJack Frames from underneath the Vehicle; you may want to use the Quick
Frame Handles.
4. Move the Vehicle, if desired.
Make sure not to drive the Vehicle on the QuickJack Frames or the Hydraulic Hoses.
