Preparing Your Power Unit
To prepare your Power Unit, you need to:
• find an appropriate location
• install the two fittings on the front of the Power Unit
• fill the Fluid Reservoir
• check the Breather Valve (if your Power Unit has one)
• connect the Power Unit to an appropriate power source
Note: Some Power Units come with a carrier and handle, some with just a handle. There is no
difference in functionality.
Your Power Unit must be located near the QuickJack Frames. Based on the combined length of the
Short and Long Hydraulic Hoses, your Power Unit should be about 10 to 12 feet away from your
QuickJack Frames and out of the way of the Vehicles you will be lifting.
Your Power Unit must also be located near an appropriate power source.
Power Sources for VAC Power Units
If you are using a 110 or 220/240 VAC Power Unit with your QuickJack, simply connect it to an
appropriate power source.
110 VAC Power Unit

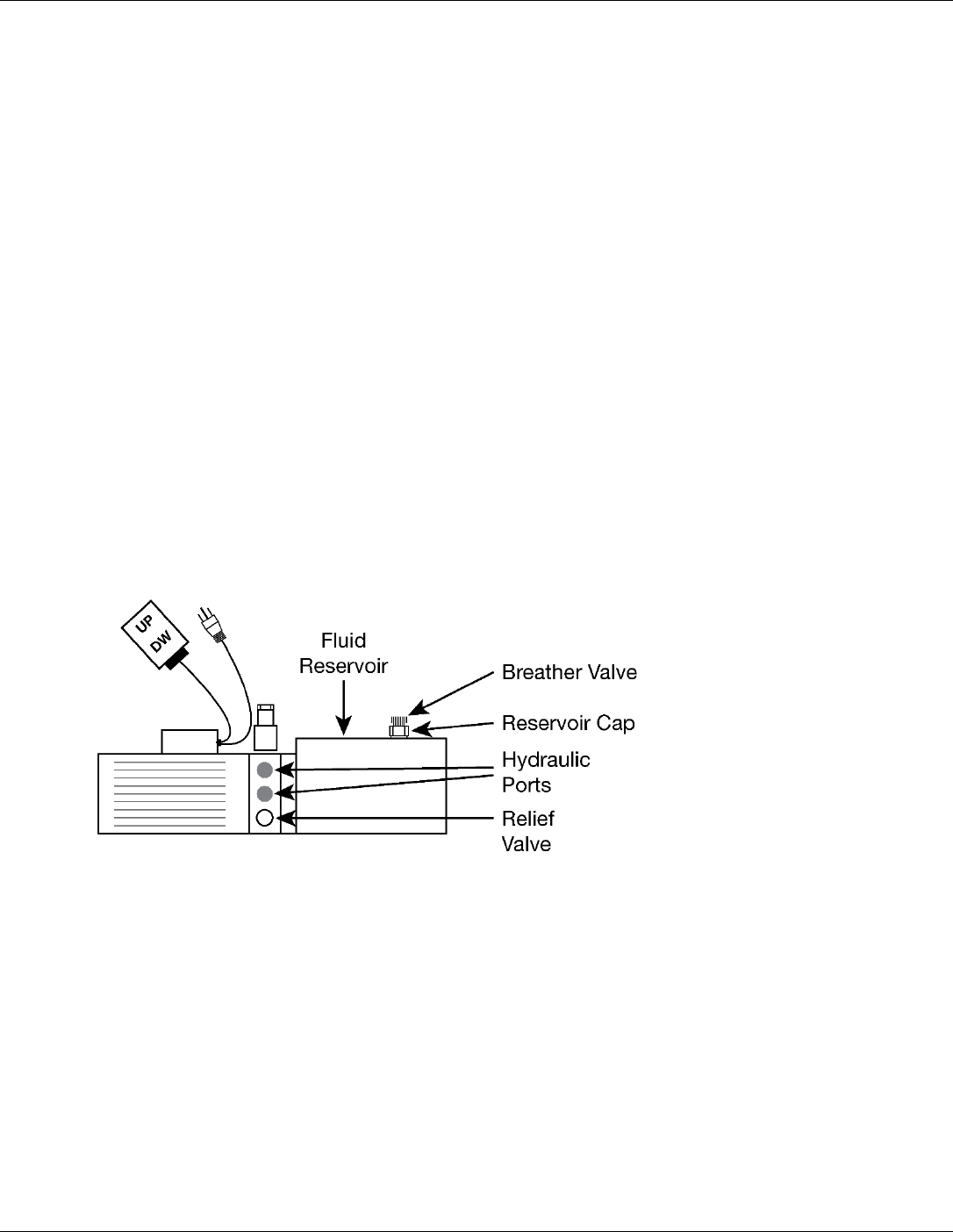

Drawing not necessarily to scale. Some Power Units may be slightly different.
