QuickJack Portable Car Jack 19 P/N 5900959 — Rev. H — May 2018

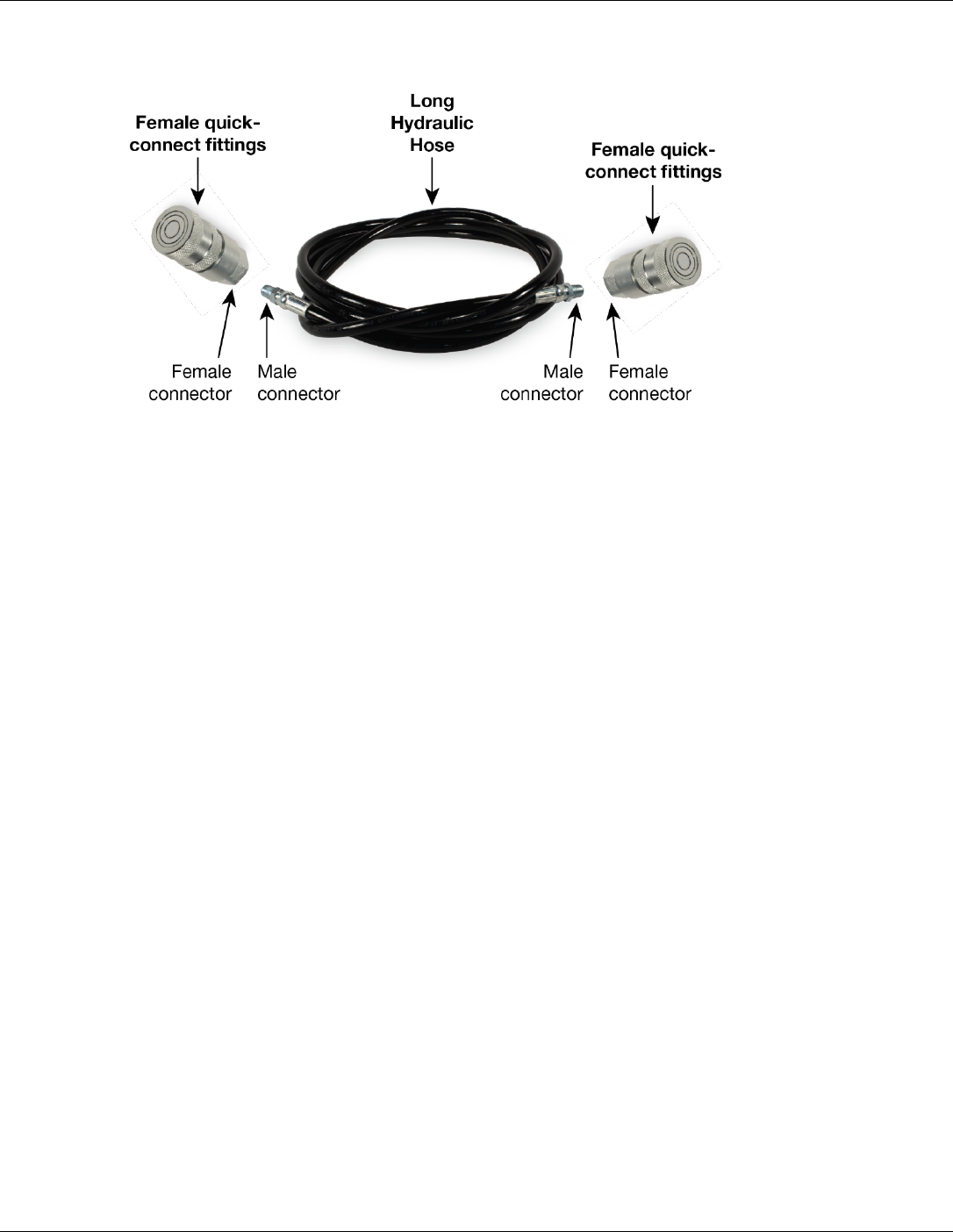

4. Connect the female connector of the female Quick-Connect Fittings to the male threaded
connectors on both ends of both Long Hydraulic Hoses; tighten to 10-11 lb-ft / 13-15 N-m.
5. Connect the female Quick-Connect Fittings that are now on the end of each Long Hydraulic Hose
to the male Quick-Connect Fittings on the Power Unit and the Short Hydraulic Hoses:
• To connect Quick-Connect Fittings: Push the male fitting firmly into the female fitting.
You know you have made a good connection when the ball release sleeve slides forward onto
the female fitting.
• To disconnect Quick-Connect Fittings: Hold the male fitting tightly while pulling the
sleeve on the female fitting until the two fittings come apart.
Except for the connections to the Power Unit, all hoses are now appropriately connected.
Connect the Long Hydraulic Hoses to the Power Unit
after
you install the fittings on the Power
Unit.
