Routing the Short Hydraulic Hoses
After connecting the Short Hydraulic Hoses to the Hydraulic Elbow Fitting on the Hydraulic Cylinder,
make sure to route them
under the side of the QuickJack Frame .
⚠ CAUTION If you mistakenly route a Short Hydraulic Hose over the QuickJack Frame, the
QuickJack will not work correctly and you could damage the hose and/or cause the
Vehicle on the QuickJack to become unstable.

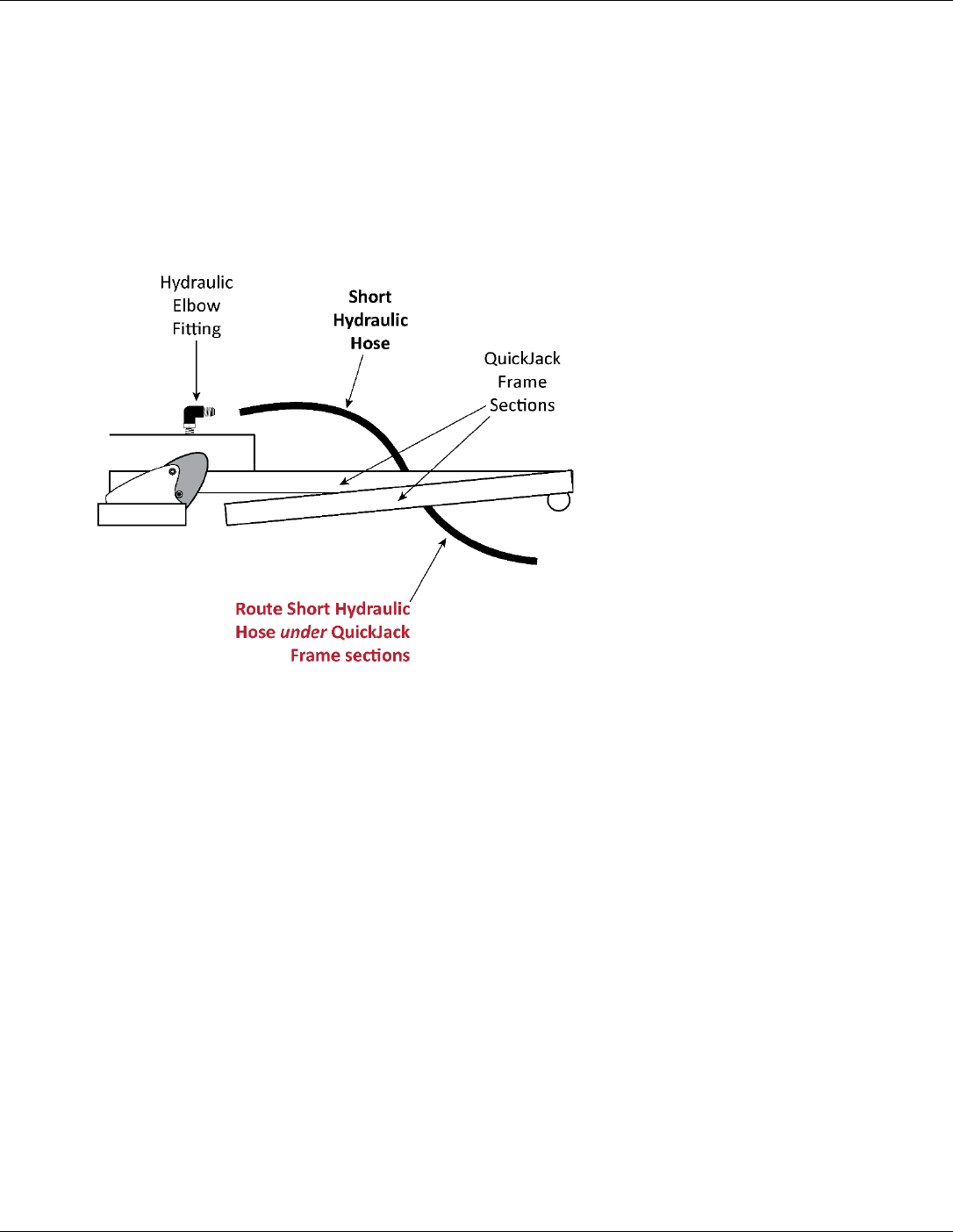

The following drawing is a side view of a QuickJack with the Short Hydraulic Hose being routed under
the QuickJack Frame sections.
Drawing not necessarily to scale. Not all components shown, some exaggerated for clarity.
Preparing the Long Hydraulic Hoses
Your QuickJack comes with two Long Hydraulic Hoses:
• One end attaches to the Short Hydraulic Hose
• The other end attaches to the Power Unit
Both ends require the installation of a female Quick-Connect Fitting.
To set up and connect your Long Hydraulic Hoses:
1. Locate both Long Hydraulic Hoses and remove their protective caps.
2. Wrap all four threaded ends with Thread Seal Tape.
3. Take all four female Quick-Connect Fittings from the QuickJack Assembly Kit.
