QuickJack Portable Car Jack 14 P/N 5900959 — Rev. H — May 2018
Unpacking
Open the packages and arrange the QuickJack components where you will be setting them up.
⚠ WARNING Your two QuickJack Frames are very similar, but they are
not
interchangeable.

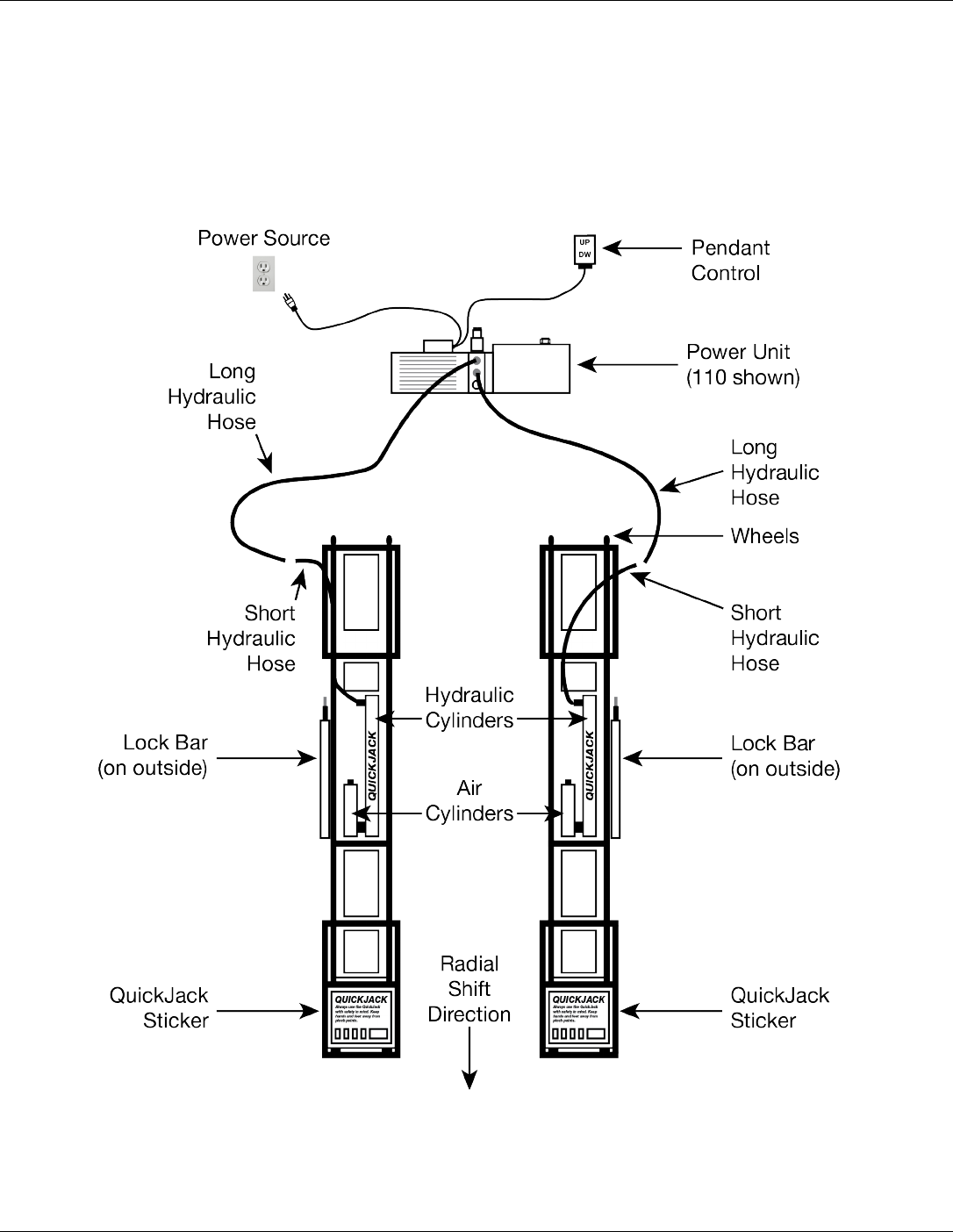

Always line up your Frames as parallel to each other as possible, with the
Lock
Bars on the outside
, as shown below.
⚠ CAUTION Always route the Short Hydraulic Hoses
under
the QuickJack Frames. If they are
routed over the QuickJack Frames, the QuickJack will not work correctly and the
Hoses could be damaged.
