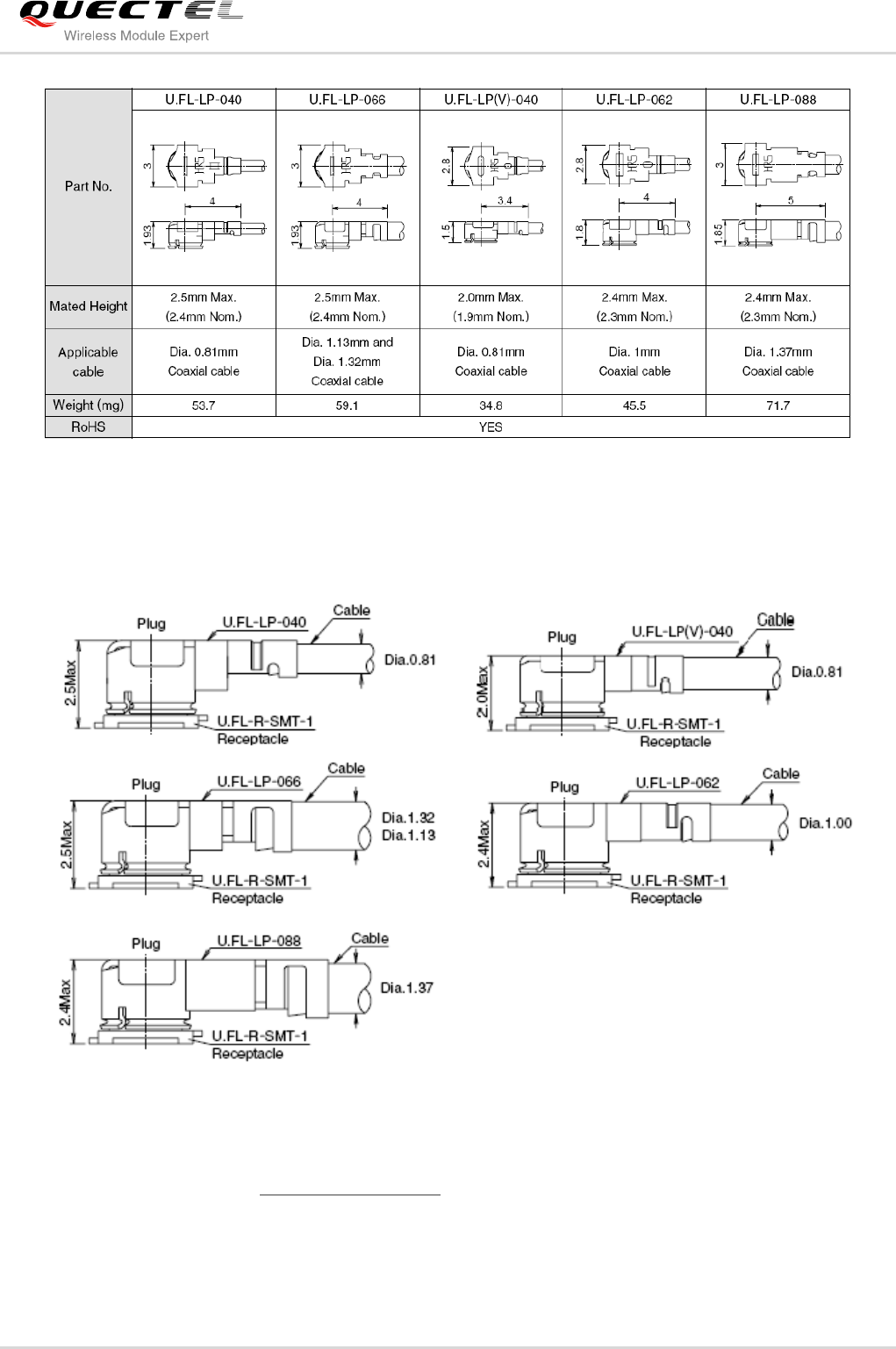

Figure 38: Mechanicals of UF.L-LP Connectors
The following figure describes the space factor of mated connector
Figure 39: Space Factor of Mated Connector (Unit: mm)
For more details, please visit http://www.hirose.com.
