UMTS/HSPA Module Series
UC20 Hardware Design
UC20_Hardware_Design Confidential / Released 45 / 84
For 6-pin USIM connector, it is recommended to use Amphenol C707 10M006 512 2. Please visit
http://www.amphenol.com for more information.

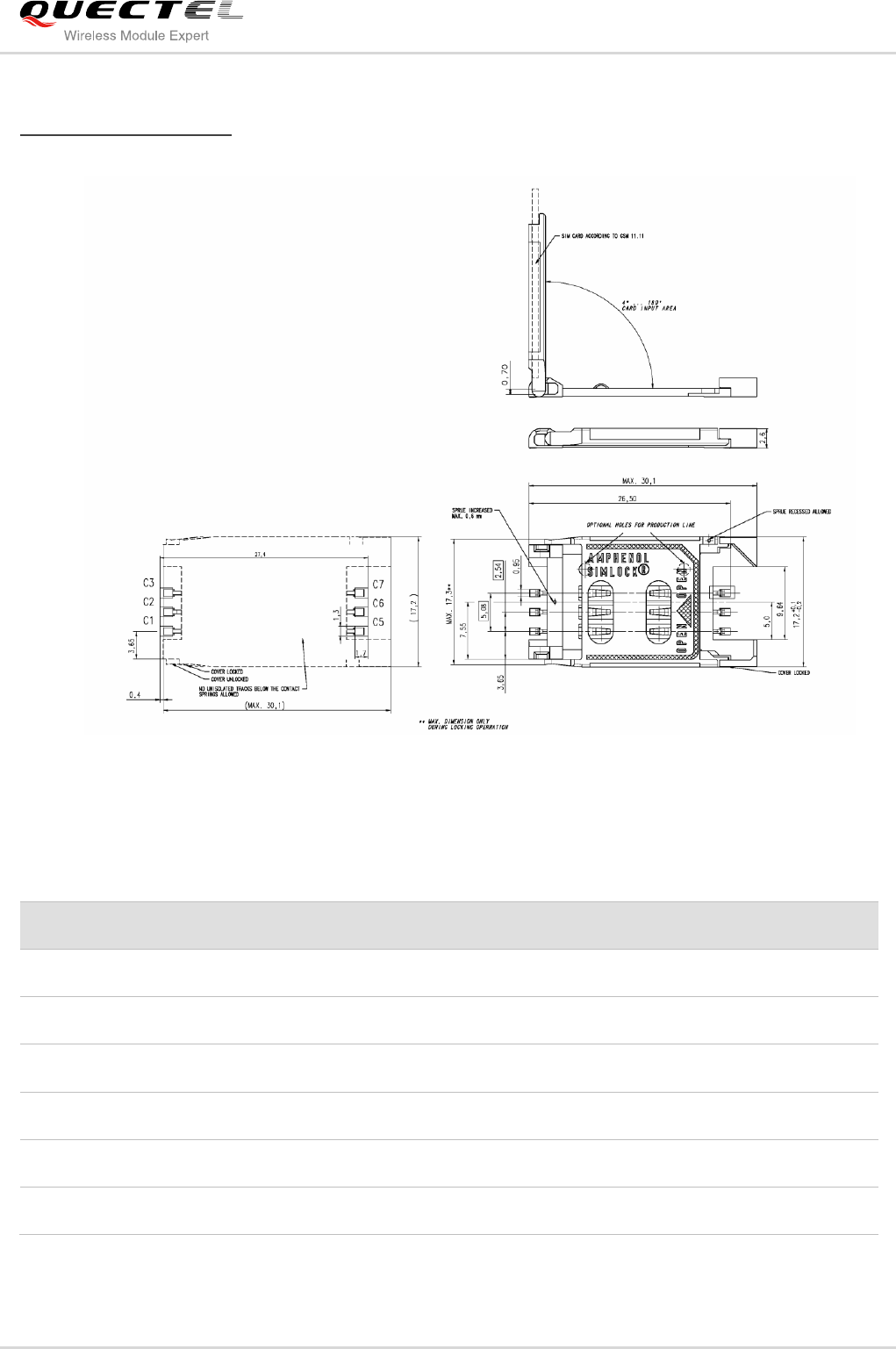

Figure 25: Amphenol C707 10M006 512 2 USIM Card Connector
Table 14: Pin Description of Amphenol USIM Connector
Name
Pin
Function
VDD
C1
USIM card power supply.
RST
C2
USIM card reset.
CLK
C3
USIM card clock.
GND
C5
Ground.
VPP
C6
Not connected.
DATA I/O
C7
USIM card data.
