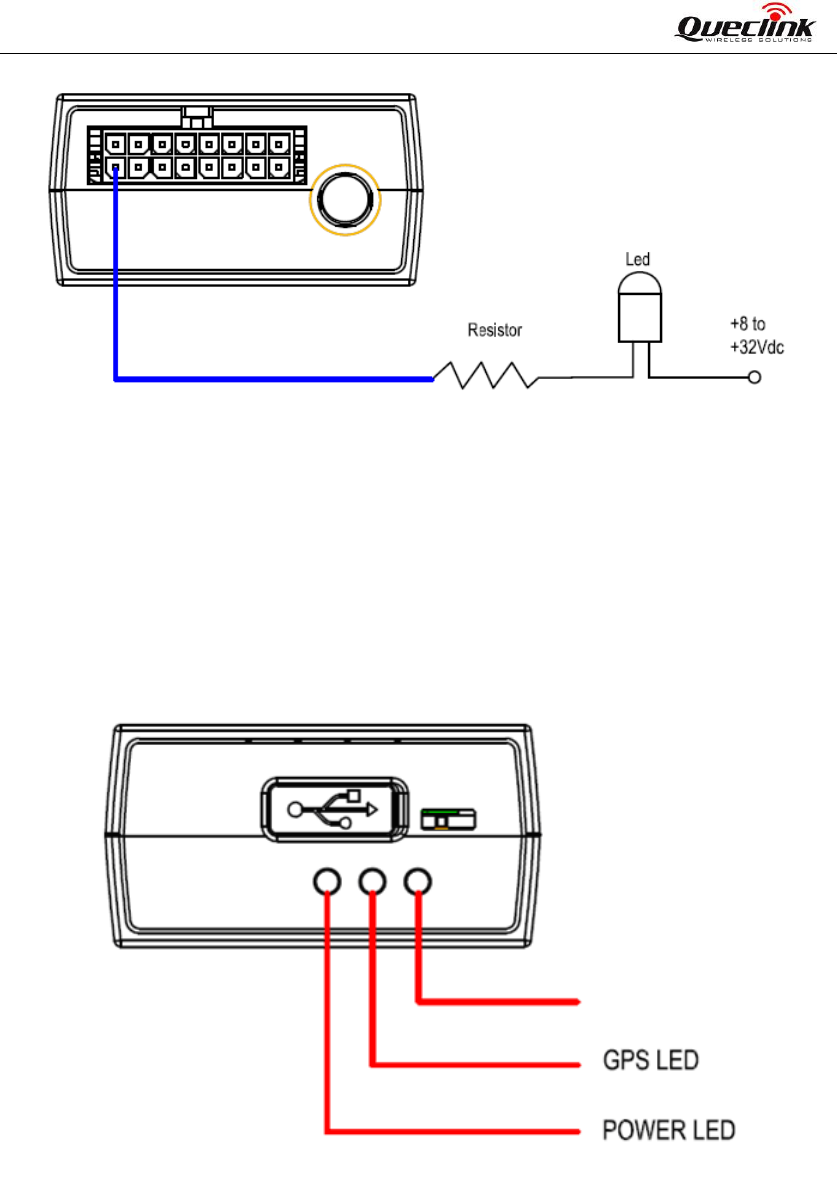

Figure 14. Typical Connection with LED
Note:
1. OUT1 will latch the output state during reset.
2. All outputs are internally pulled up to PWR pin by a diode. So no external fly back diode is
needed when the output is connected to an inductive load.
3.11. Device Status LED
Figure 15. GV300C LED on the Case
Table 10. Definition of Device status and LED
CELL LED
