3.10. Digital Outputs
There are three digital outputs on GV300C. All are of open drain type and the maximum drain
current is 150 mA. Each output has the built-in over current and recovery PTC fuse

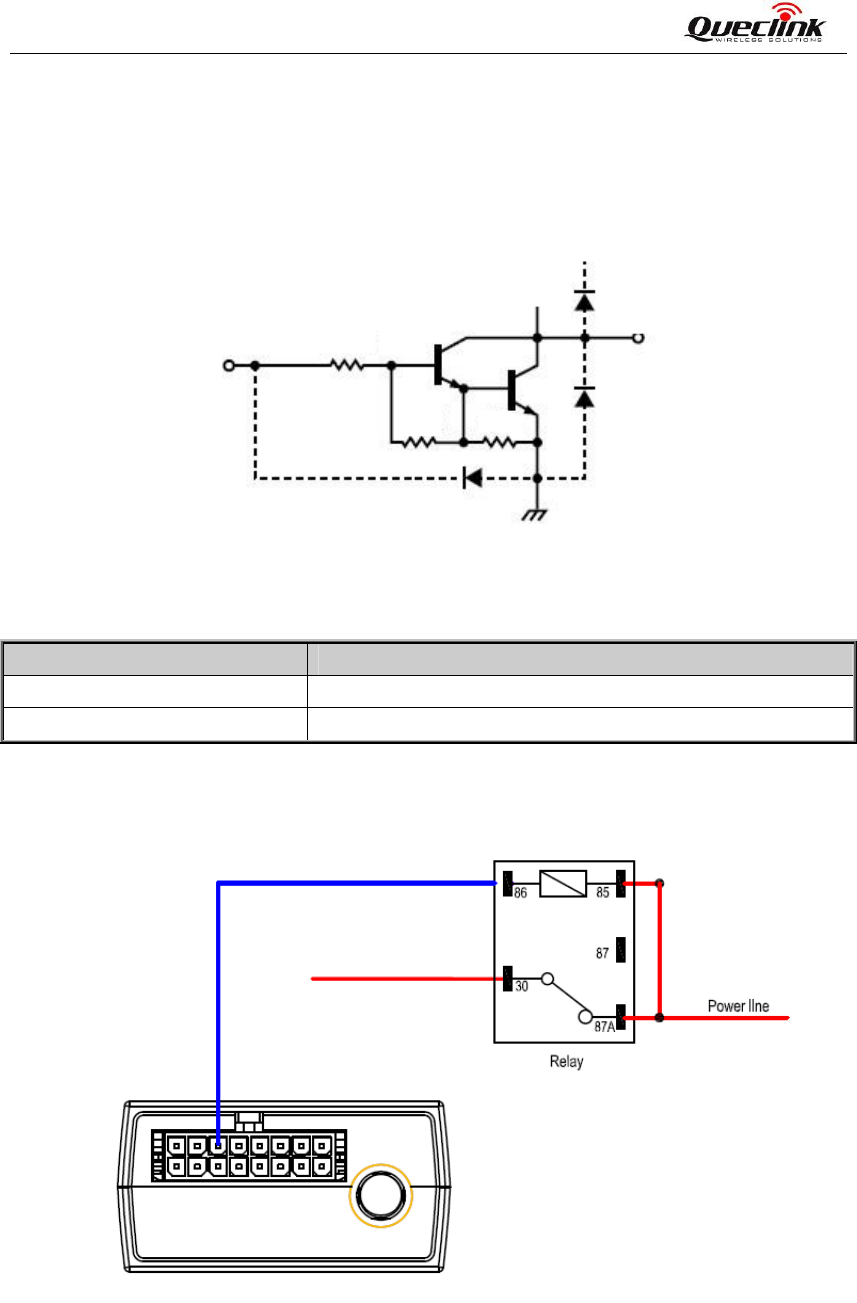

Figure 12. Digital Output Internal Drive Circuit
Table 9. Electrical Characteristics of Digital Outputs
Logical State Electrical Characteristics
Enable <1.5V @150mA
Disable Open drain
Figure 13. Typical Connection with Relay
