3.8. Digital Inputs
Table 8. Electrical Characteristics of the digital inputs
Logical State Electrical Characteristics
Active 0V to 0.8V
Inactive Open

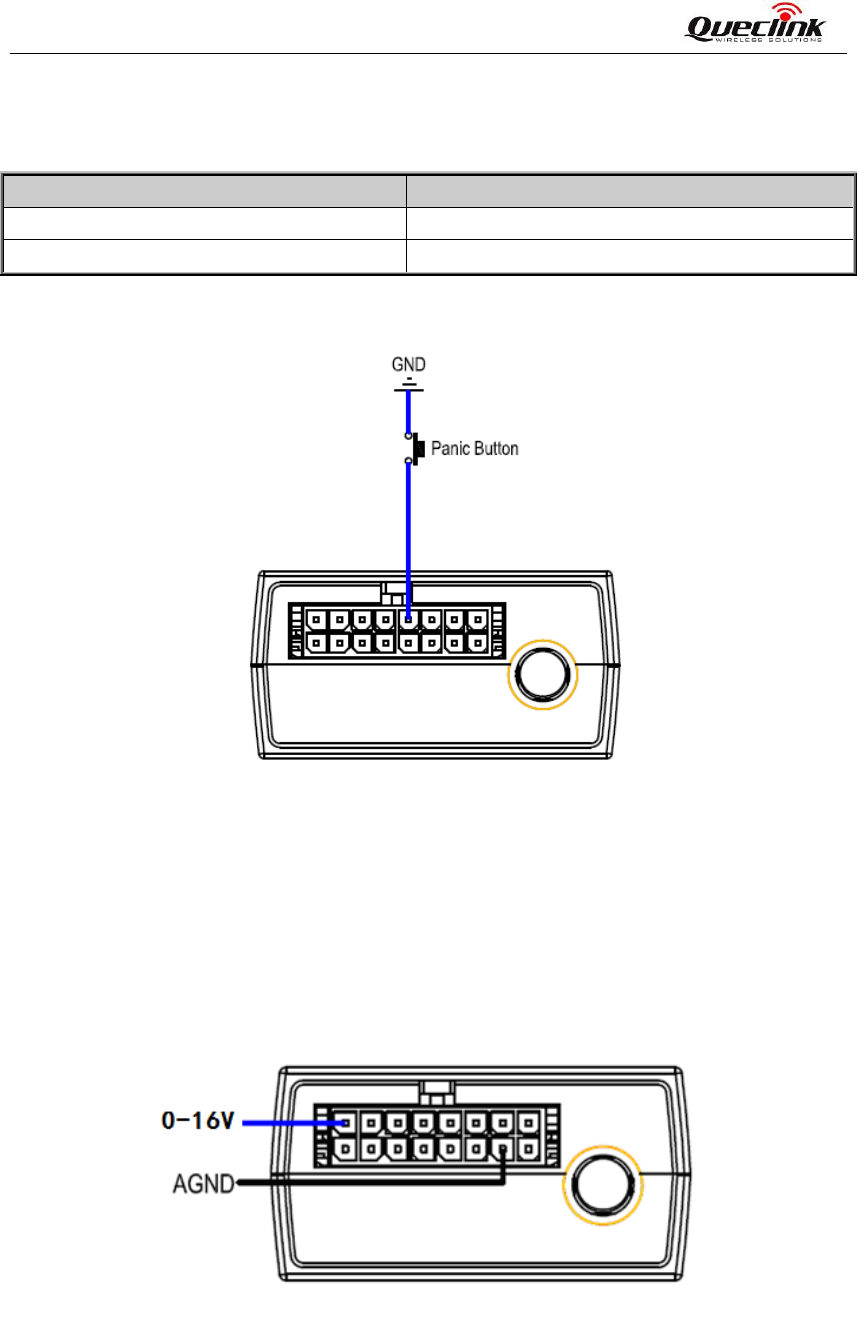

The following diagram shows the recommended connection of a digital input.
Figure 10. Typical Digital Input Connection
3.9. Analog Inputs
There are two analog inputs on GV300C, the analog input voltage range is from 0 to 16V. The
following diagram shows the recommended connection.
Figure 11. Typical Analog Input Connection
Note:
PIN 15 is a multifunction pin: it can be configured as a digital input or an analog input.
