2.4. GV300C User Cable Colour

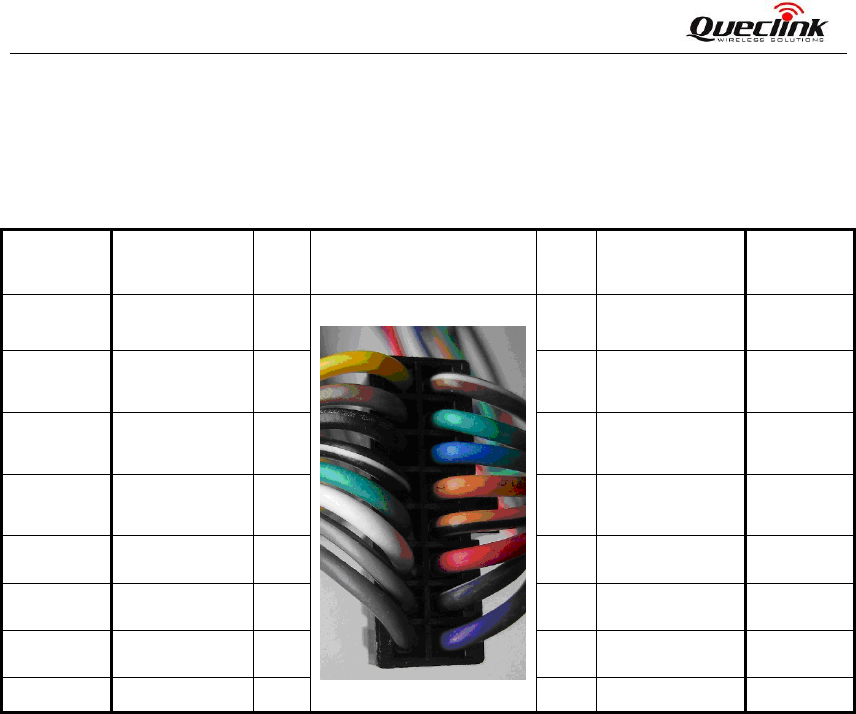

Table 5. GV300C User Cable Colour definition
Definition
Color
PIN
No
Cable
PIN
No
Color
Definition
OUT2 Yellow 8 16 Brown/White AD2
OUT3 Brown 7 15 Green AD1/IN3
GND Black 6 14 Blue OUT1
TXD White/Black 5 13 Orange IN1
RXD Green or Pink 4 12 Orange/Black IN2
IGN White 3 11 Red PWR
AGND Gray/ Black 2 10 Purple/White NC
NC Gray 1 9 Purple NC
