User Manual

antenna with one receiver and omnidirectional (dipole or clover leaf) with the other.
The antenna which has better reception in particular situation will be selected.
During active antenna change you will hear a beep.
Controls in diversity mode:
Up/Down – Changing channels up/down consequently (A1,A2…A8, B1,B2 etc. )
Left/Right – Jumping between channels that only have high RSSI level.
Enter – enter the main menu

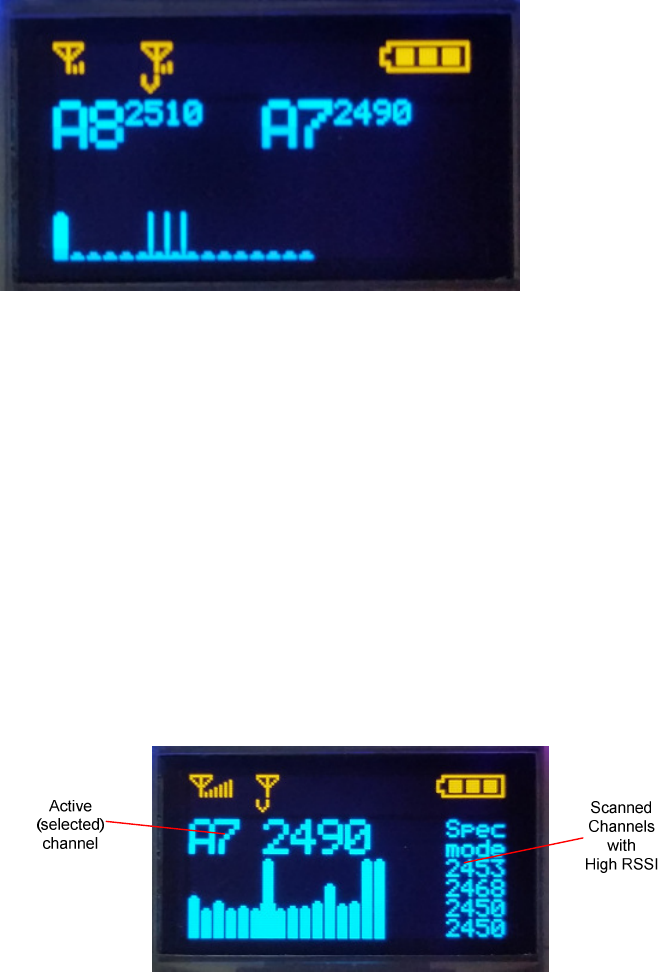

3. Independent Mode
Each receiver module can be controlled independently via navigation button and
display. Each module outputs AV signal to its dedicated output OUT1 and OUT2
respectively. Receiver works as two independent receivers with two antennas and two
independent outputs. Each module can be set on each own frequency.
Controls in Independent mode:
Up/Down – Changing channels up/down for receiver 2
Left/Right – Changing channels up/down for receiver 1
Note: Changing channels can be consequently (A1, A2 etc.) or by jumping on the
channels with high RSSI only. You can choose either option by selecting option Skip
low RSSI in menu On or Off
Enter – enter the main menu
4. Spectrum Analyzer mode
