Chapter 2 SDLT 600 Tape Drive Specifications
Recording Media Specifications
SDLT 600 Product Manual 33
Media Structure 2 Super DLTtape II media comprises several layers, as shown in figure 3.

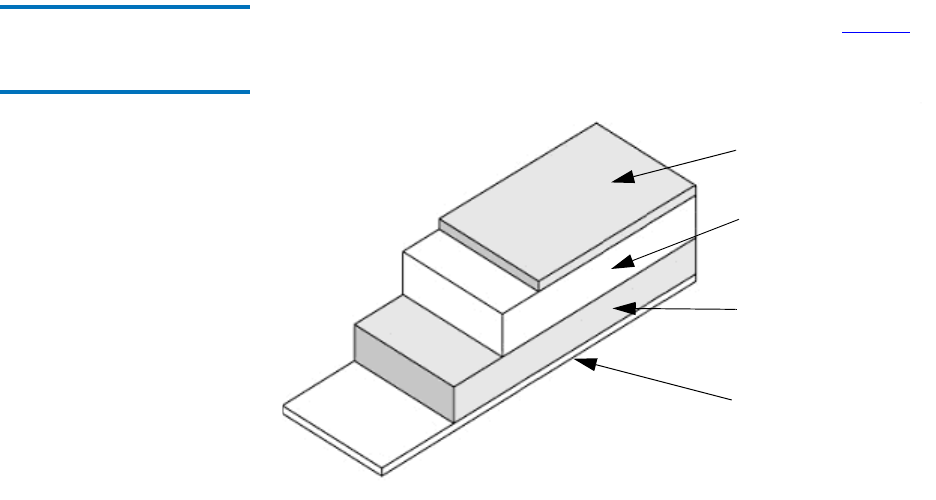

Figure 3 Multiple Layers
Comprise Super DLTtape II
Media
Layers not drawn to scale
High Coercivity
Magnetic Layer
Under Layer
Enhanced Base
Film Layer
Back Coat Layer
with Servo Guides
