Data Cartridge Inspection Procedure
SDLT 600 Product Manual 109

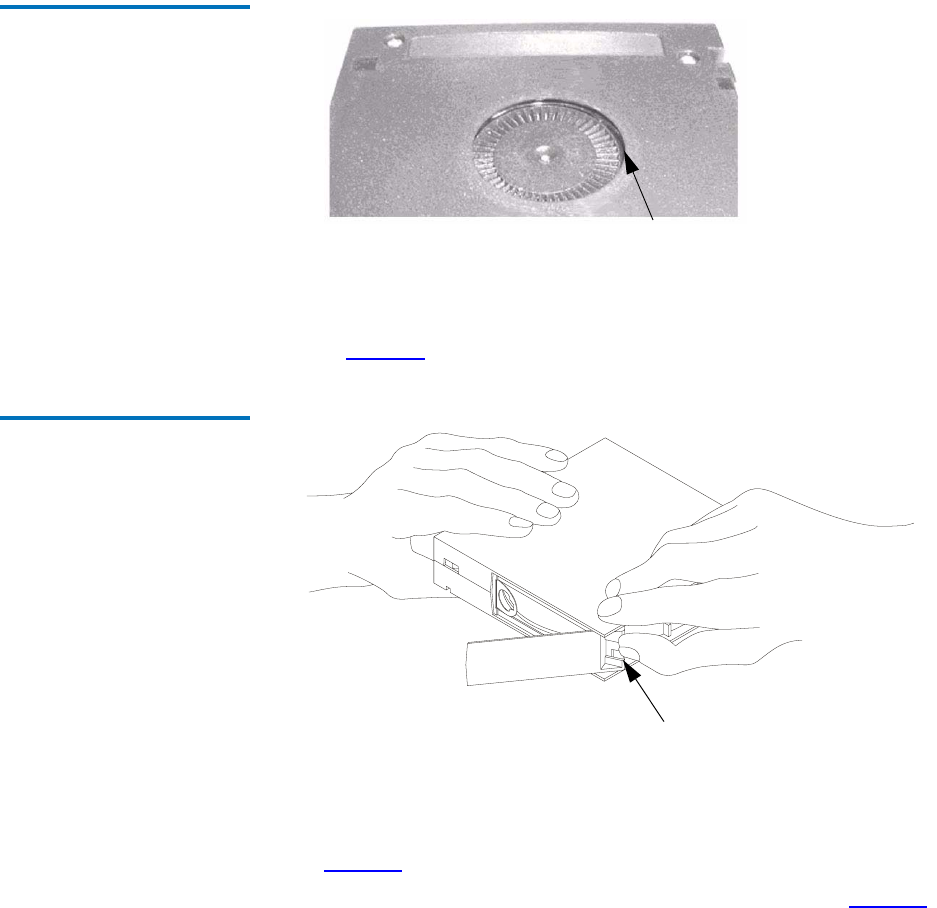

Figure 30 Faulty Data Cartridge
Spring-loaded Reel Hub
7 Once again, look at the end of the data cartridge, holding it as shown
in figure 31
.
Figure 31 Opening the DLTtape
VS1 Data Cartridge Door
8 On the right side corner of the data cartridge is a small tab in a cut-
out portion (the door pivot notch) of the data cartridge. Using your
thumb, gently lift up on the tab and swing the door open as shown in
figure 31
.
9 Look at the end of the data cartridge, holding it as shown in figure 33
.
Use care that you do not touch the tape leader.
Data cartridge hub is recessed slightly, and when pressed, does
not return to a position that is flush with the plastic shell
Tab in the door pivot notch
