Chapter 3 DX-Series Remote Management
System Status
62 Quantum DX-Series User’s Guide

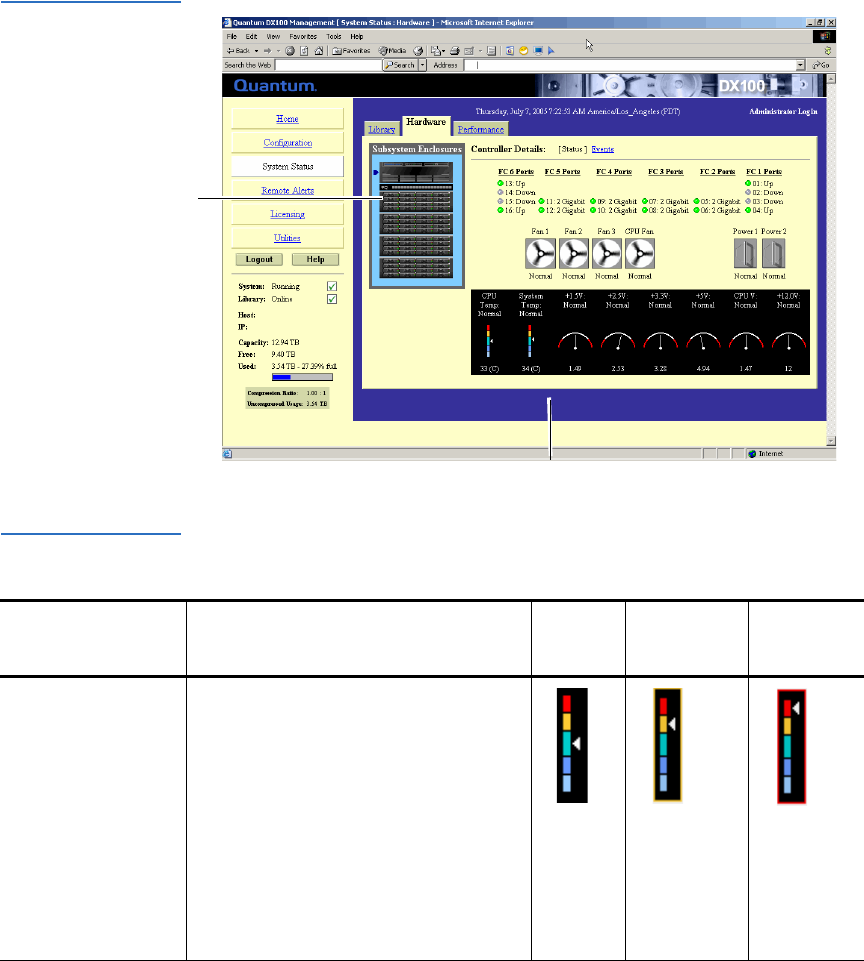

Figure 38 Controller
Details
Controller
status and
temperature
Controller details
Table 10 Controller
Temperature Details
Field Description
Normal
State
Warning
State
Failed
State
Controller
Temperature
Displays the current temperature of
the DX-Series system’s internal CPU
as well as the external system
temperature. There are three states
displayed: normal, warning, and
failed. The warning and failed states
also display a flashing amber box
around the temperature gauge for
warning and a red box for failed. If
the controller reaches 50°C (122°F),
a failure is displayed.
