Chapter 3 DX-Series Remote Management
Configuration
Quantum DX-Series User’s Guide 51

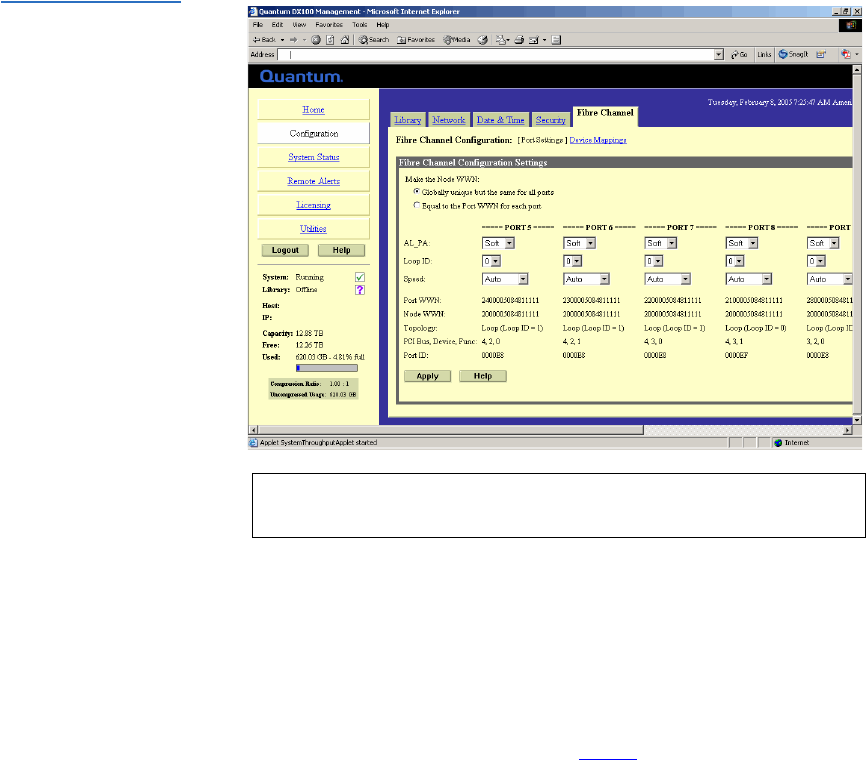

Figure 31 Fibre
Channel Configuration
2 While the Port WWNs are always unique, the Node WWNs can be set
according to the
Make the Node WWN section as follows:
a Selecting Globally Unique but same for all ports makes the Node
WWNs the same for all Fibre Channel ports.
b Selecting Equal to the Port WWNs for each port makes the Node
WWNs equal to the Port WWNs.
3 Selecting The Port Settings page (see table 6 for field descriptions)
allows you to set the AL_PA, Loop ID and link speed for each Fibre
Channel port connecting the DX-Series system to the customer SAN
(DX30 has two ports and DX100 has eight ports).
Note: The DX-Series system must be off-line to configure the
Fibre Channel options.
