Chapter 3 DX-Series Remote Management
Configuration
50 Quantum DX-Series User’s Guide

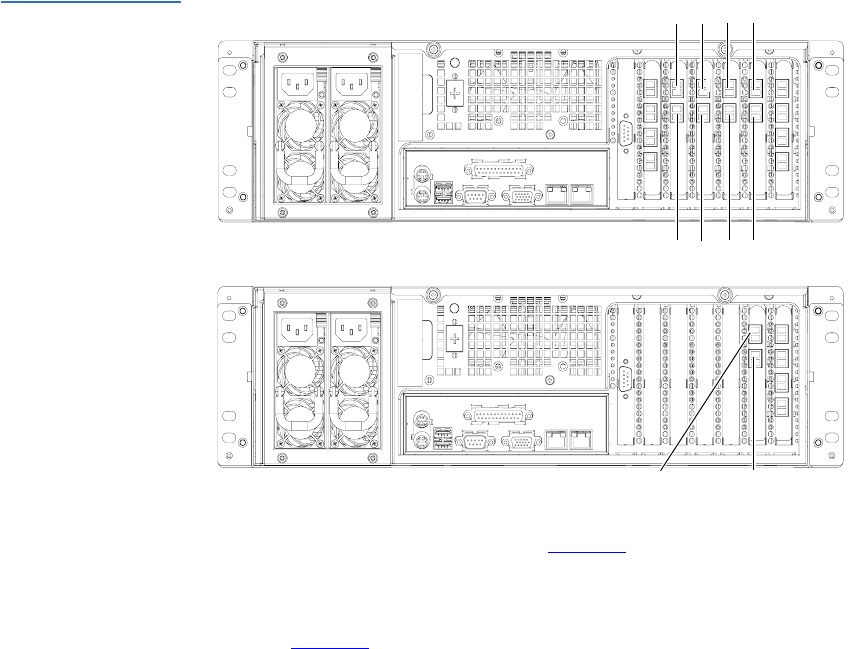

Figure 30 Fibre
Channel Input Port
Locations
DX100 back view (physical configurable ports)
5
6
7
8
9
10
11
12
DX30 back view (physical configurable ports)
65
To access the Fibre Channel page (see figure 31):
1 In the Configuration page, click Fibre Channel.
The management frame displays the Fibre Channel Port Settings page
(see
figure 31).
