Quick Setup Guide

Step 5 - Access Point Quick Setup in Cloud Controlled Mode
 Select “Management Mode” as “Cloud Controlled”, enter Quantum RUDDER
login credentials and click “NEXT”. (If you do not have an account on Quantum
RUDDER, please refer Step 6)
 Select Cloud Controller site, where Access Point’s needs to be added and click
“Next”.
 User can select Access Point’s Operation Mode as Bridge or Router.
Bridge
I. Select Operation Mode as Bridge and click Next.
a. The device would import settings and redirect to Configuration
Summary.

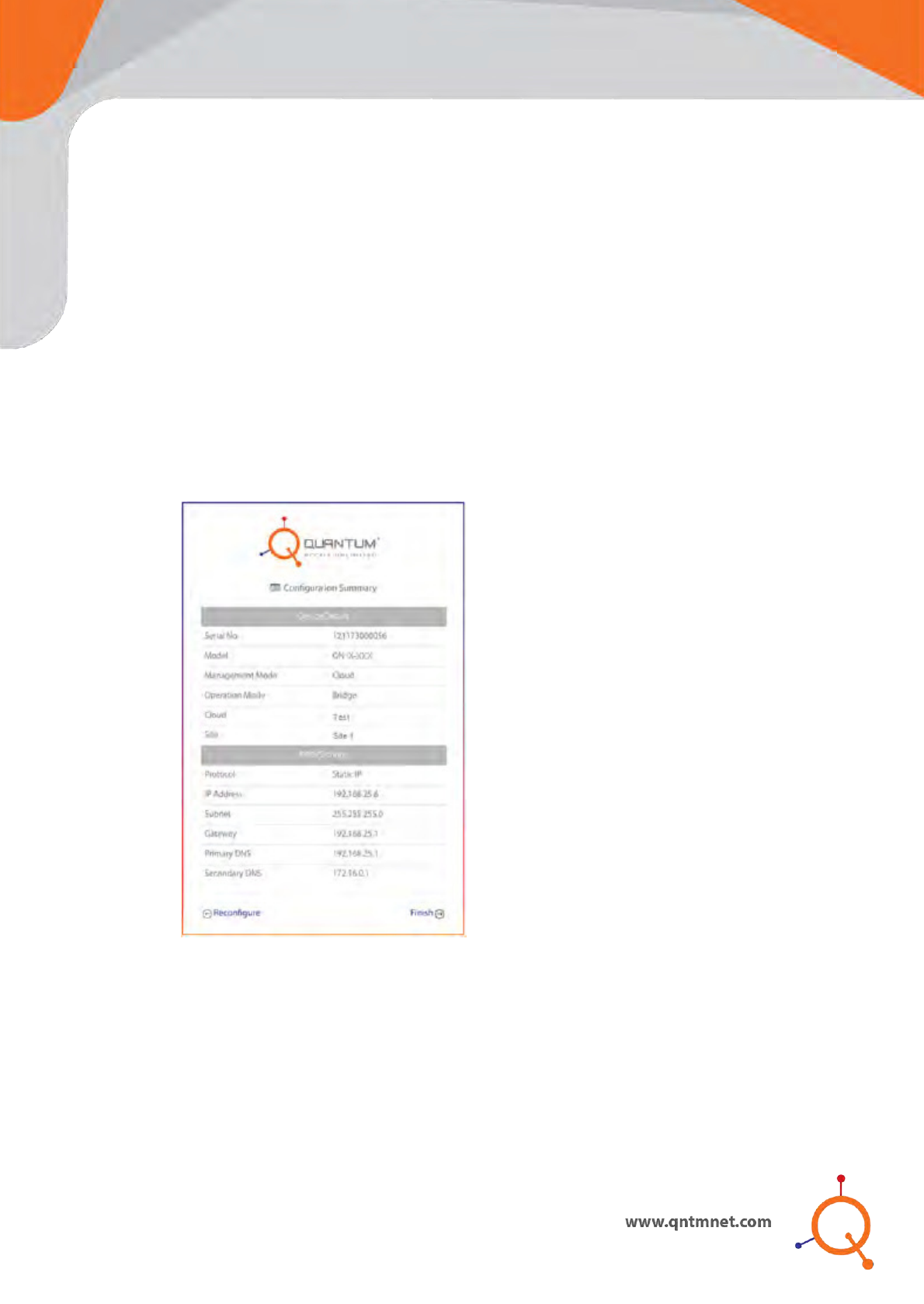

Figure 9
II. Click Reconfigure if any changes required or click Finish to complete the
Configuration.
