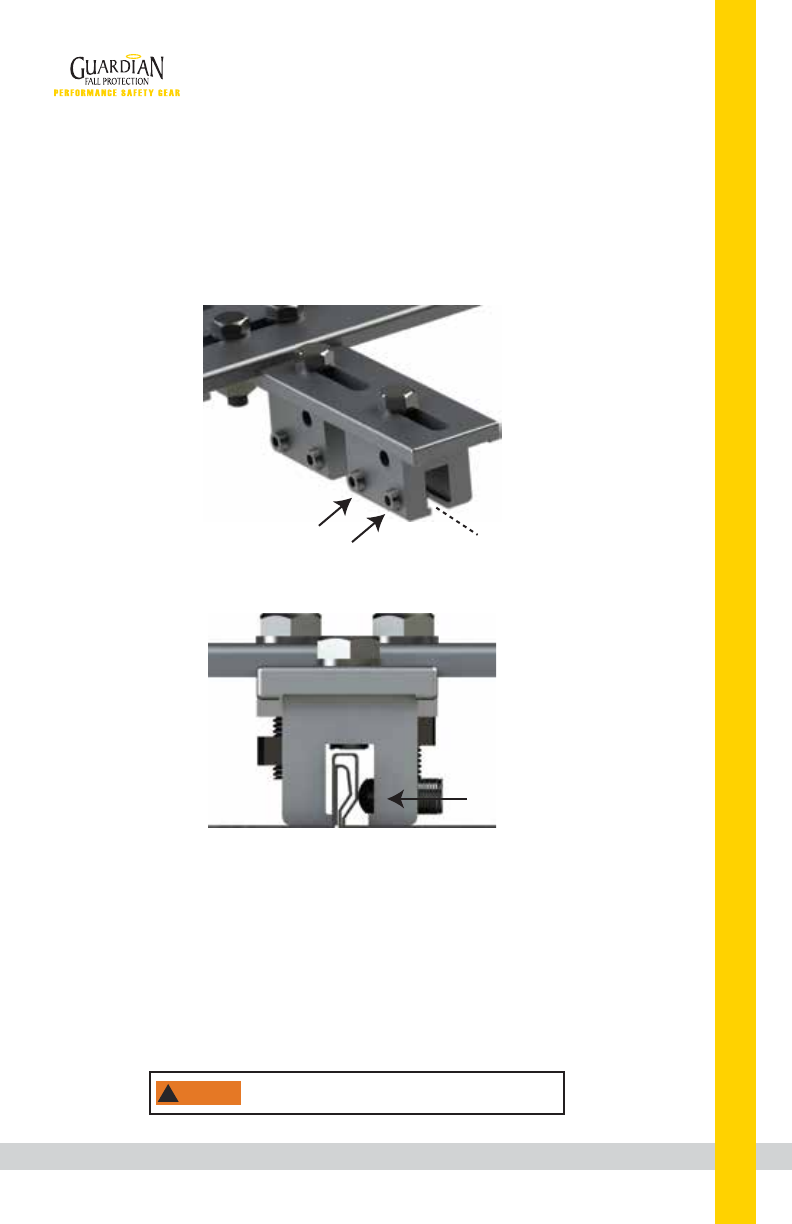

4. Insert Set Screws in bottom two holes of all S-5 Clamps. All Set Screws must face same
direction. Ensure all Set Screws will compress against roof seam when fully installed.
Set Screws
must compress
against roof seam.
5. Use 3/16” Allen wrench attachment (provided with S-5 Clamps) with compatible 1/4” drive
screw gun to install Set Screws.
• If roof material is 22 gauge or thicker, torque all S-5 Clamp Set Screws to
between 13.33-15 foot-pounds.
• If roof material is thinner than 22 gauge, torque all S-5 Clamp Set Screws to
between 10.83-12.5 foot-pounds.
Roof Seam
!
WARNING
NEVER over-torque set-screws; doing so could
strip hardware or damage roof panels.
