3. After startup, check the Logger output for the line APL DEMO: ADC. This indicates that the
correct DemoApp is running.

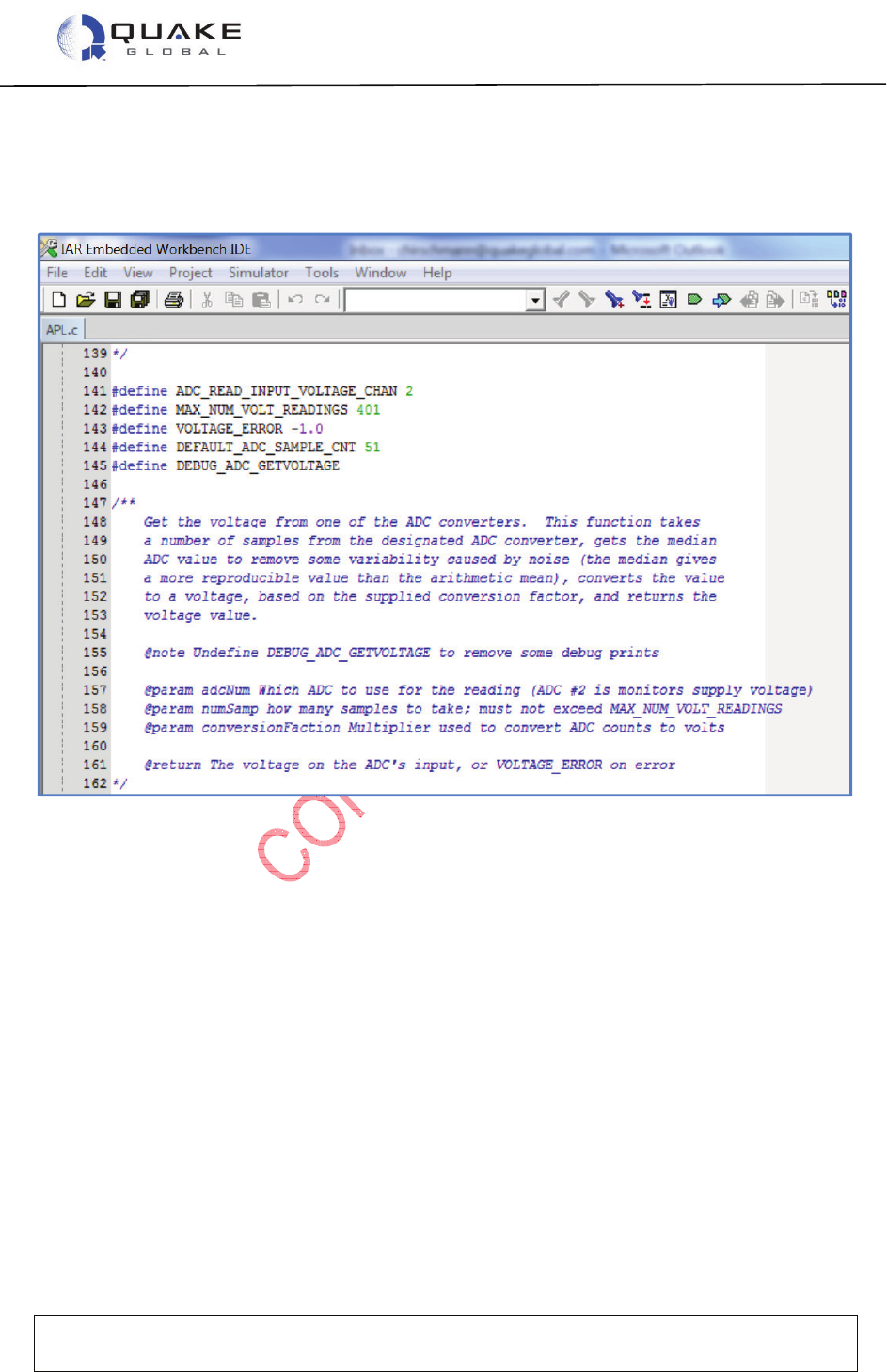

The ADC converter is selected by #define statements in the code, as shown in Figure 12-59.
Figure 12-59: DemoAppADC - Definitions
