user manual

Q-SEE QUICK INSTALLATION GUIDE
M
M
O
O
D
D
E
E
L
L
N
N
U
U
M
M
B
B
E
E
R
R
Q
Q
R
R
2
2
0
0
8
8
-
-
8
8
1
1
1
1
3 | Page

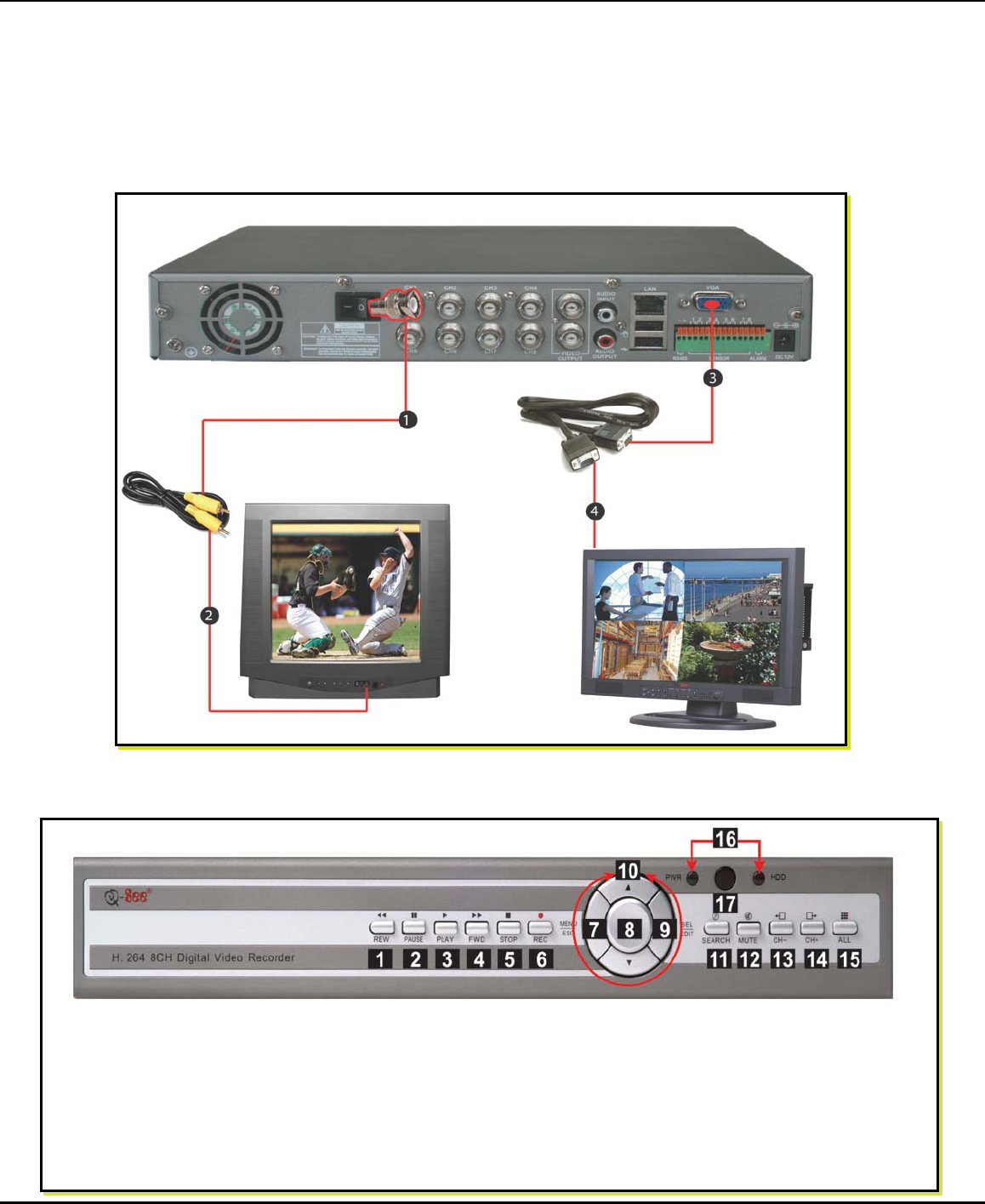

PART 3 - CONNECTING THE DVR TO YOUR TV
1. Plug the BNC to RCA adapter in to Video Out port then connect the RCA cable (not included) to the DVR.
2. Connect the other end of the RCA cable (not included) to the Video Input on the TV if you are using a
television screen.
3. If you are using a PC monitor, plug the VGA cable (not included) to the VGA port on the DVR.
4. Connect the other end of the VGA cable to the monitor.
PART 4 - DVR CONTROLS: FRONT PANEL
1. Rewind 7. Menu/Escape 13. CH-
2. Pause 8. PTZ Mode 14. CH+
3. Play 9. Select/Edit 15. View All Screens
4. Fast Forward 10. Direction Keys 16. Indicator Lights
5. Stop 11. Search 17. Infra Red Receiver
6. Record 12. Mute
