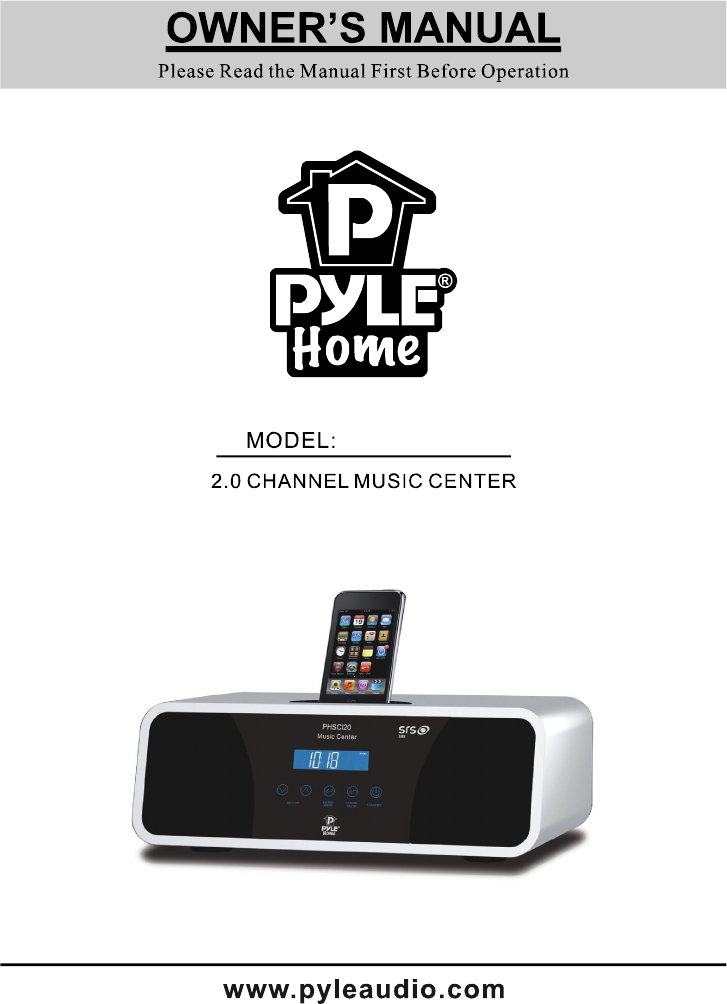

PHSCI20
Table of Contents 1 1 2 2 2 2 2 3 4 4 Table of Contents Package Contents Safety Information Specifications Special Specifications SRS Statement Compatibility Chart System Connection Real Panel Function Operation Instructions How to Power Up the System How to Play Stereo Audio How to Use Sleep Mode (1) How to Use Remote Control Multi-function Control Area iPod Control Area FM/AM Control Area (2) How to Use Touch Key Control System How to Setup Time and Alarm How to Play FM/AM Installing Battery in the Remot
Dear customers: Thank you for purchasing the 2.0 channel music center system. We strongly recommend that you carefully study the operating instructions before attempting to operate the unit and that you note the listed safety information. Safety information: 1. This unit can be used only where the power supply is in accordance with the notes on the rear panel of the unit. 2. To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. 3.
System Connection: PHSCI20 DC INPUT 18V 1.66A .3.
Real Panel Function: Operation instructions How to power up the system Connect the AC adaptor, then turn on the power. How to play stereo audio Press the " " key on the remote control to choose the input mode "iPod, AUX, FM, AM". How to use sleep mode Sleep mode lets you sleep to your system at the selected time. 1. Press " " or touch the" " key to select an amount of time before the system shuts off: 5, 15, 30 minutes or off. 2. Wake up the system by pressing any key when the system in the sleep mode.
Multi-function Control Area 1. " ": Select the following four submenu: ,
iPod Control Area a. Insert iPod into the iPod docking socket. System will turn to "iPod" input mode automatically. And the system will return to the previous input mode when you move out of the iPod. b. The middle area of the remote control (B) is especially designed for iPod player. " " : Controls the play and pause function of the iPod player. " , " , " : Press and hold for 2 seconds to Fast Forward or Fast Reverse. " : Controls the iPod player to play the previous or the next song.
2. If you want to return to the previous subpage, you can touch " ". And if no any operation is done, the system will return to the default interface in 5 seconds. How to Setup Time and Alarm a. Touch " " enter to the first-level subpage, then touch " " to choose , touch " " enter the options interface of
Installing Battery In the Remote Control Note About the Remote Control t Trouble Shooting Possible Reasons/solutions Problem The system has no power. The plug is not inserted properly. The socket has no power. "POWER " button has not been pressed. No sound at all. Incorrect selection of input signal. If mute state is turned on. Sound source machine is not powered. Either of the main channels has no sound. The signal plug is connected incorrectly or lines are short-circuited.
CAUTION: DO NOT REMOVE BACK COVER OF UNIT DUE TO THE POSSIBILITY OF ELECTRICAL SHOCK. THERE ARE NO SERVICEABLE PARTS INSIDE THIS SECTION. PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with an equilateral triangle, "Dangerous Voltage", is intended to alert the user to the presence of uninsulated parts within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.
