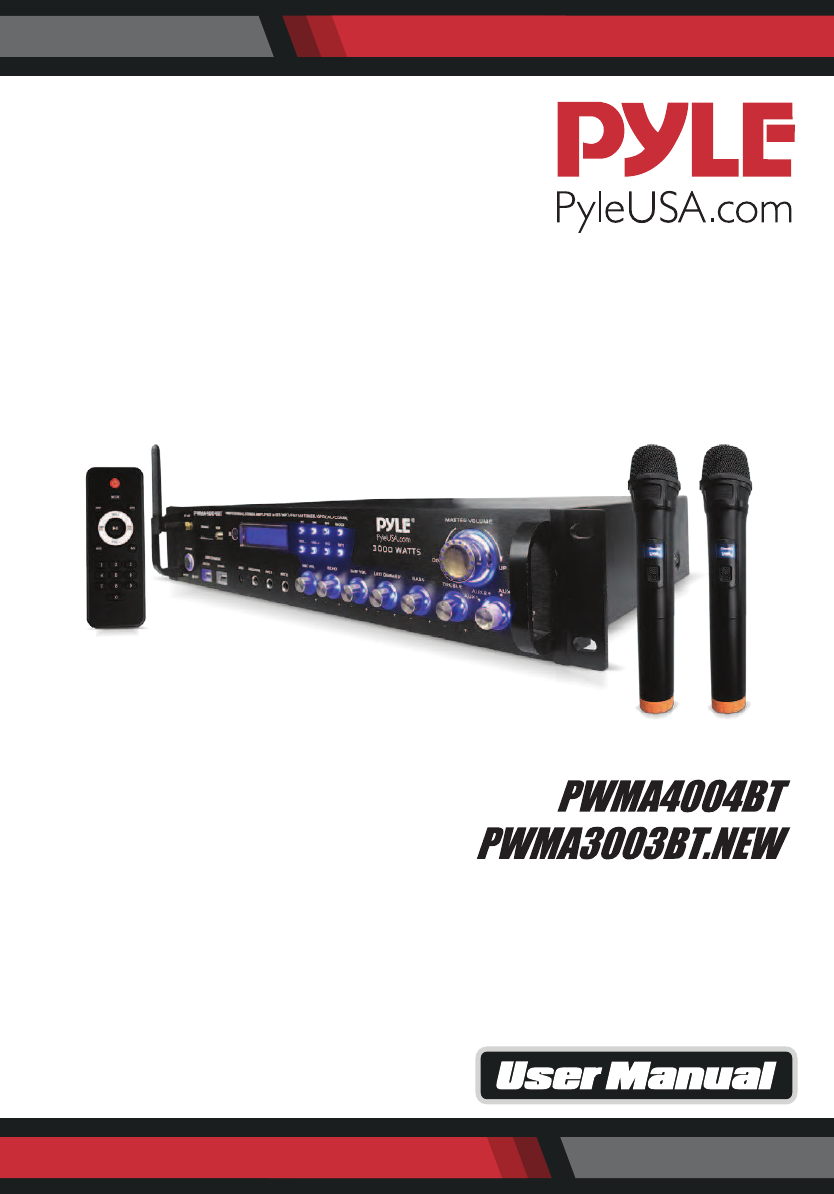

Wireless BT Hybrid Amplifier Receiver Pro Audio Multi-Channel Stereo Pre-Amplifier System with (2) UHF Wireless Microphones & Digital Optical/Coax, MP3/USB/SD Readers, FM/AM Radio, Rack Mount (3000 Watt)
Safety Instructions Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be strong enough to create a risk electric shock to a person. Intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: To reduce the risk of electric shock, DO NOT ATTEMPT TO OPEN THE AMPLIFIER OR REMOVE THE COVER.
5. Enclosure Removal Never remove the enclosure. If the internal parts are touched accidentally, a serious electric shock might occur. 6. Abnormal Smell If an abnormal smell or smoke is detected, immediately turn the power OFF and pull out the power cord. Contact your dealer or nearest service station. FRONT PANEL 23 18 1 22 1 24 25 1 10 20 1 7 6 2 4 8 3 5 9 19 1 17 1 14 1 11 1 12 1 13 16 1 15 1 21 1 1. POWER SWITCH: Press to switch the power unit ON or OFF. 2.
15. TREBLE: Adjusts the master treble 16. BASS: Adjusts the master bass 17. MIC VOLUME: Adjusts the volume level. Turn the knob clockwise to increase the MIC volume . 18. USB/SD: Card input 19. MIC INPUT JACKS 1 & 2 KARAOKE MIC: Connect to these jacks. 20. HEADPHONE JACK: Headphone connect to this jack. 21. INPUT SELECTOR: Turn this button to choose the favorable input 22. USB CHARGE SELECTOR 23. BT ANTENNA 24. REMOTE CONTROL WINDOW 25. AUX 1 Input BACK PANEL 10 1 12 13 14 15 16 17 1 18 19 1.
STEPS FOR CONNECTING WITH WIRELESS BT DEVICE A. Press MODE button under the LCD display screen and enter into Wireless BT mode. B. Search on the Wireless BT device and you can fnd the Wireless BT name "PYLE PRO" C. Select the "PYLE PRO" Wireless BT name and wait for the device to pair. D. The unit will make a signal to confrm that the device has successfully paired and the screen will display "BLUETOOTH CONNECTED" E. Once being paired, you can play music from your BT device.
Remote Control 1. Standby Button 2. Equalizer Button (HaII, Live, Jazz, Rock, Pop, NormaI) 3. Previous Song Button • Short press for previous music in BT/USB/SD system, or for previous program in AM/FM system. • Press and hold this button to auto scan the programs downward in AM/FM system, and automatic memory to the program number. 4. Source Input Volume 5. MODE Menu Control Button. Press to select BT/USB/SD/AM/FM/LINE IN etc. audio input 6.
How to replace the preset radio stations? • Use the remote control to set the radio stations. • Use button of the front panel set the radio stations. NOTE: The preset stations can't be deleted, BUT CAN BE REPLACED. Operations Steps 1. Rotate the input selector switch to the BT/MP3/AM/FM/OPTI/COAX position. 2. Press the Mode key of the front panel or remote to select AM/FM. 3.
Features: • Home Theater Pro Audio Receiver • High-Powered Hybrid Pre-Amplifier • Multi-Channel Source Audio Selection • Built-in BT for Wireless Music Streaming • Includes (2) UHF Wireless Handheld Microphones • FM/AM Radio with Digital LCD Display • USB Flash & SD Memory Card Readers • MP3 Audio File Playback Support • Connect & Stream Audio from External Devices • Aux (3.
Wireless BT Connectivity: • Built-in Receiver for Wireless Audio Music Streaming • Simple & Hassle-Free Pairing • Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.) • Wireless BT Version: 5.0 • Wireless BT Network Name: ‘PYLE PRO’ • Wireless Range: 40’+ ft. Technical Specs: • Power Output: 3000 Watt MAX • 900 Watt @ 2 Ohm • 450 Watt @ 4 Ohm • 300 Watt @ 8 Ohm • Frequency Response: 40Hz-15kHz, +/-2dB • S/N Ratio: >76dB • T.H.D.
Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.
