Specifications

(J) Acessories & Misc. Equipment Pg. 60

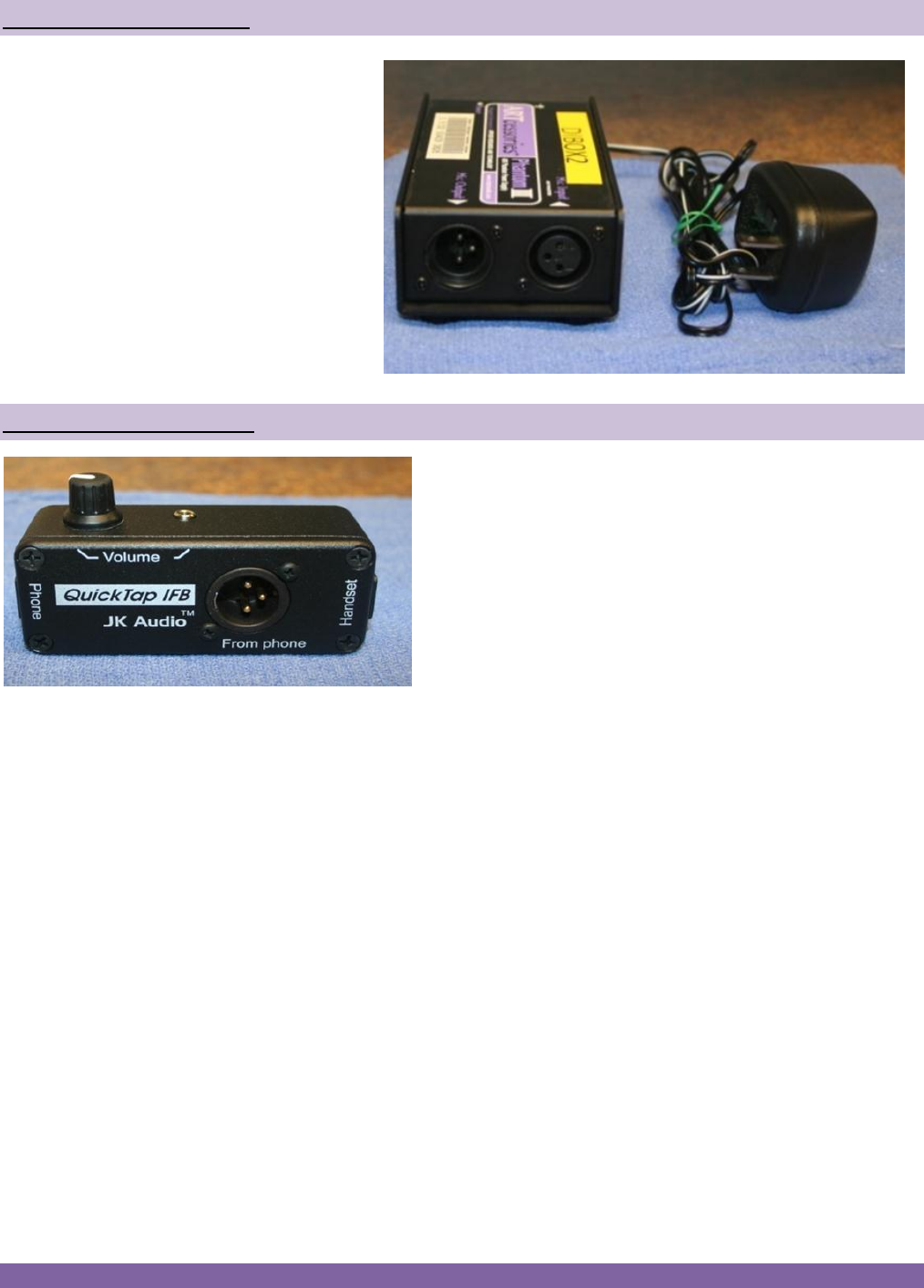

Phantom power supply
Inline external 48 volt phantom power
supply, use when a condenser type
microphone or any other device is being
used that requires this voltage and a
mixer isn’t available to provide it.
XLR male female connectors
Telephone handset TAP
Use when you need to get a good quality recording of a
phone conversation
Connect the QuickTap IFB between your telephone and
handset for quick access to audio from any telephone
system.
Simply unplug the handset coily cord from the base of
your telephone and plug it directly into the QuickTap
IFB, then, using the supplied cable, connect the QuickTap IFB to the base of the telephone.
The 600 ohm male XLR lets you take audio from the phone line and route it into a mixer or headset
amplifier. You can also plug an IFB earpiece directly into the 1/8" mini jack. However, keep in mind this
is a passive box with a 600 ohm output; the earpiece should have impedance greater than 600 ohms to
get usable output.
Both audio output jacks contain a nice mix of the audio coming from the phone line and the handset
audio going into the phone. Any conversation over the handset is sent over both audio output jacks. Or
you can leave the handset disconnected and just hear audio from the far end of the call.
The QuickTap IFB does not work with cellular telephones or any telephone with a keypad in the
handset.
