Specifications

(C) Video Pg. 14
Professional Video Recording

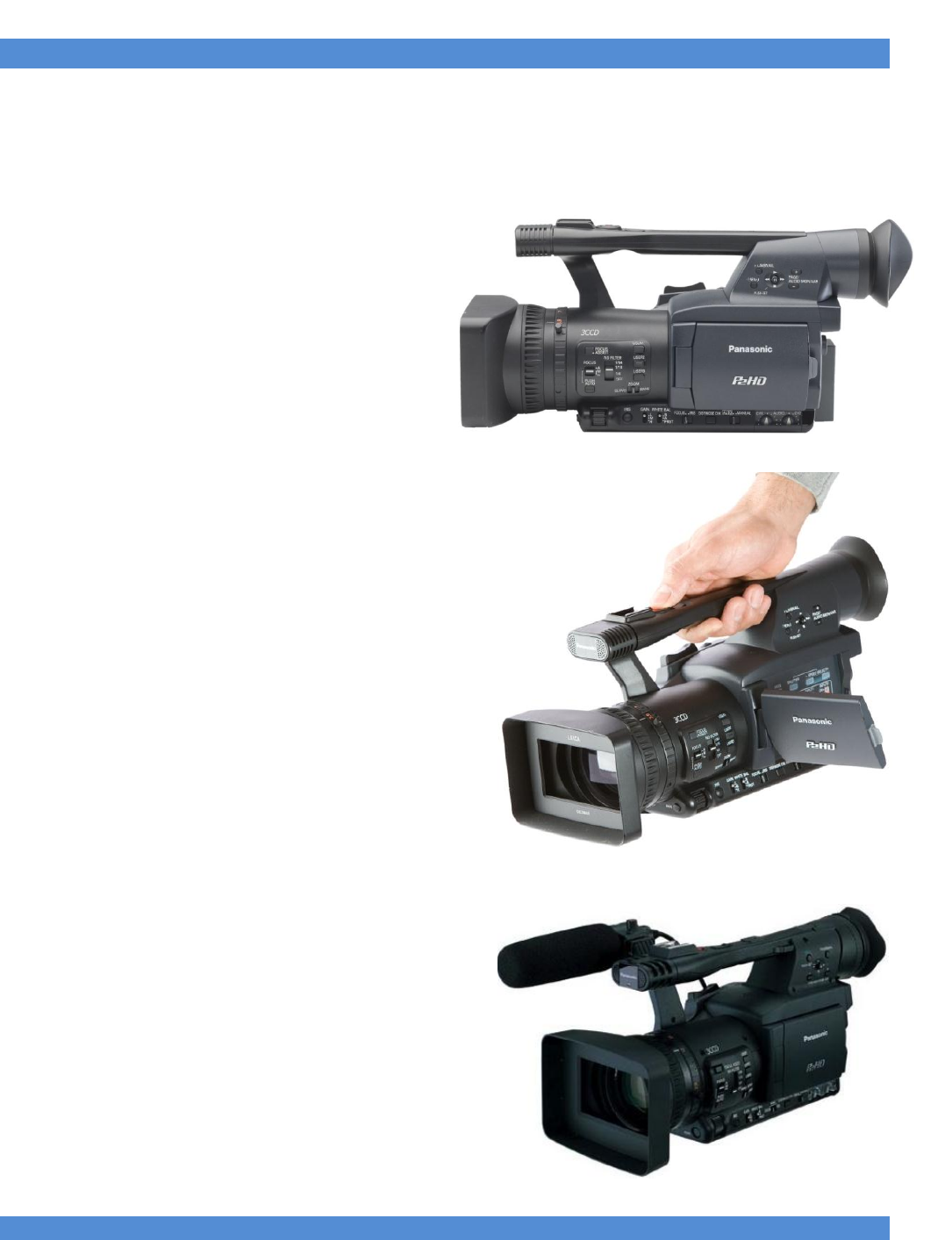

Panasonic Pro P2 – AG-HPX170 3CCD P2 High-Definition Camcorder
Summary: This camera is one of our more advanced pieces of equipment. Training from ATUS staff is
required prior to checkout. It records in High Definition with a lot of options to modify the recording.
ATUS: HDV 4, 5
Full production quality, 4:2:2 1080/ 720/ SD P2HD
Hand-Held camcorder
1-Chip or 3-Chip: 3-Chip
Card: 32 GB and 16GB P2 Card
Standard or High Def: High Definition
Firewire (DV) Port: Yes
Microphone Input: 2 XLR mic inputs / 4 Channels
(External Shotgun mic attached)
Composite In/Out Port: Yes
S-Video: No – Component Video instead
Headphone Jack: Yes
Zoom: 10X, 5X, 2x Digital Zoom (13x Optical Zoom)
Lens: Leica Dicomar 13x lens
Extras:
1GB=~1Minute of HD footage
P2 Cards: 1.2Gbps transfer speed
~140 minutes of continuous recording w/ fully
charged battery
2x P2 Card Slots for Video & 1x SD Memory Card Slot
Includes three different advanced focus assist functions
6 pin Firewire with locking connection. (no power out)
Color Bars with 1kHz Tone
WaveForm Monitor and Vectorscope
20 Variable Frame Rates: 12, 15, 18, 20, 21, 22, 24,
25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60
Security Cable Attachment Hole
Iris/focus ring assignment switch so that focus ring can
be the iris
Time & date stamp burn-in
Most cables facing rear to reduce conflicts, Audio
connections in the same place
LCD Screen can be flipped for use with 35mm adapters
---Cameras currently come with 1 16GB card and 1
32GB card.
(w/ optional Shotgun Mic attached)
