Specifications

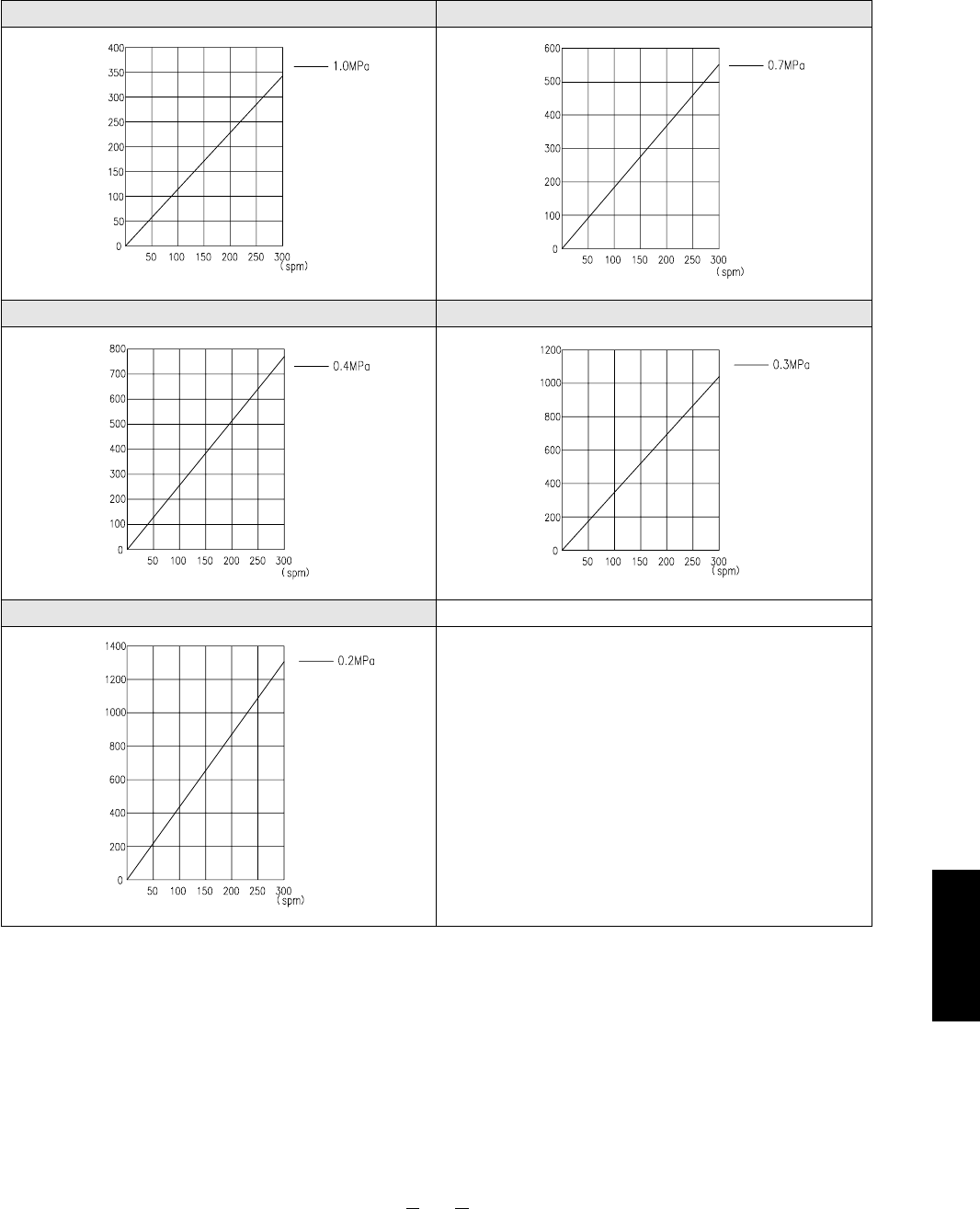

■Performance Curves
The following performance curves are measurement examples obtained by measuring on test equipment at TACMINA.
These performance curves may differ slightly depending on various on-site conditions and product differences.
Measure the discharge volume under actual operating conditions, and set the strokes according to the performance
curve that is obtained.
¡Basic specifications Conditions: clean water, room temperature
PZiG-300-VTCE-12x18-W-S PZiG-500-VTCE-12x18-W-S
Strokes setting
Discharge volume
(mL/mm)
PZiG-700-VTCE-12x18-W-S PZiG-1000-VTCE-12x18-W-S
Strokes setting
Discharge volume
(mL/mm)
Strokes setting
Discharge volume
(mL/mm)
PZiG-1300-VTCE-12x18-W-S
Strokes setting
Discharge volume
(mL/mm)
Strokes setting
Discharge volume
(mL/mm)
