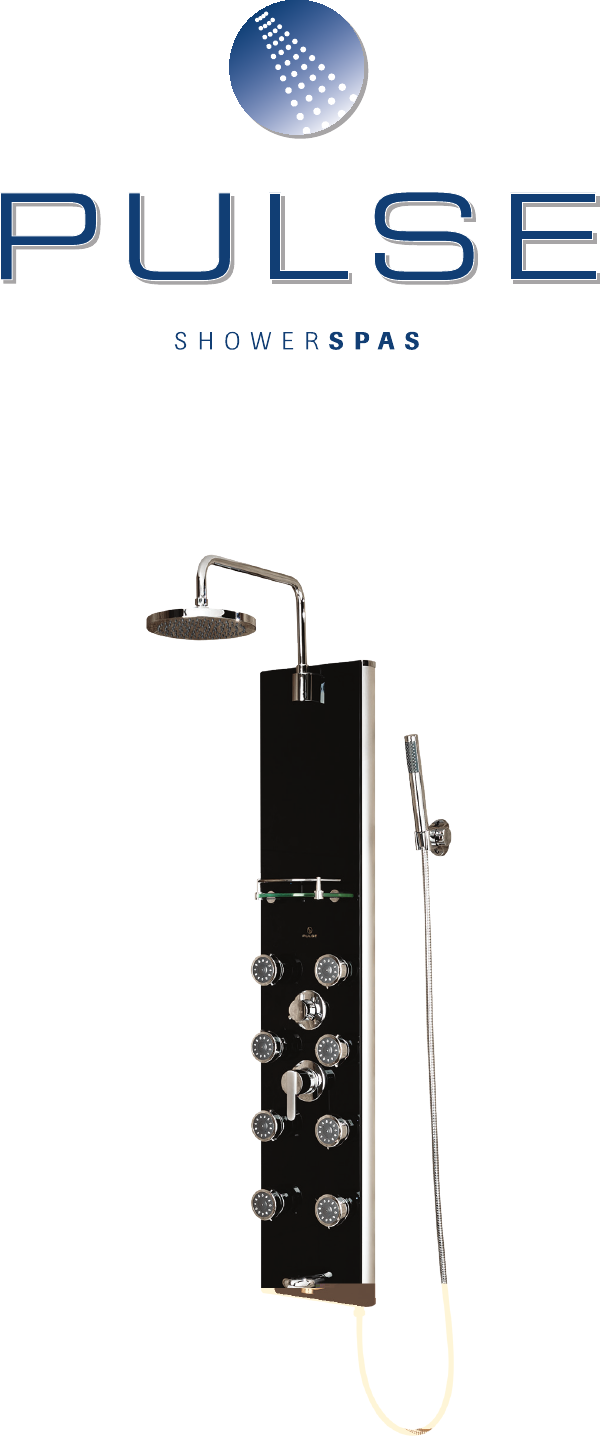

MAKENA II Makena II Showerspa Model #1015-II Installation Instructions
Makena II ShowerSpa Model #1015-II Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
Product Dimensions 3
Parts Legend 4 1. ShowerSpa 5. Handheld Shower 9. Nylon Anchor.................. (6) 2. Shower Head 6. Handheld Holder 10. Mount Bracket................ (2) 3. Shower Arm 7. Handheld Hose 11. Rubber Washer............... (3) 4. Shower Arm Bracket 8. Mounting Screw.............
Assembly After installing your ShowerSpa, some assembly is required prior to use. Handheld Holder Installation 1. Locate the desired mounting location of the handheld holder (6) and mark the holes. We recommend placing it near the height of the glass shelf. 2. Drill ¼" holes through wall surface using a masonry bit. Drill slowly through wall surface to avoid cracking and chipping. 3. Make certain the opening in the handheld holder (6) tapers toward the floor when you mount it to the wall.
Installation – Retrofit Existing Shower Replacement NOTE—In a remodel in which you are not replacing the finished wall surface (tile, or backing material) it is advisable to purchase a PULSE ShowerSpa model that covers the location of your existing valve assembly—either single handle or two-handle type. If your PULSE ShowerSpa model does not cover this area, you will need to either choose another PULSE ShowerSpa model that does or make necessary repairs with appropriate materials (i.e.
Usage Pressure Balance Mixing Valve The Makena II ShowerSpa is eqiuipped with a cUPC® pressure balance mixing valve to adjust water flow and temperature. The valve automatically adjusts to changes in water pressure (i.e. someone flushes a toilet), keeping your temerature constant and preventing accidental scalding. To turn on the ShowerSpa simply raise the handle until the desired flow rate is achieved. Rotate to the right to decrease temperature and rotate to the left to increase temperature.
Manufacturer’s Limited Warranty PULSE Shower Spas, Inc. warrants that all ShowerSpas are free from defect in workmanship and/or materials for a period of three years from the date of purchase. This warranty extends to the original purchaser only and is non-transferable.
