RSFUPS116 v.1.1/III

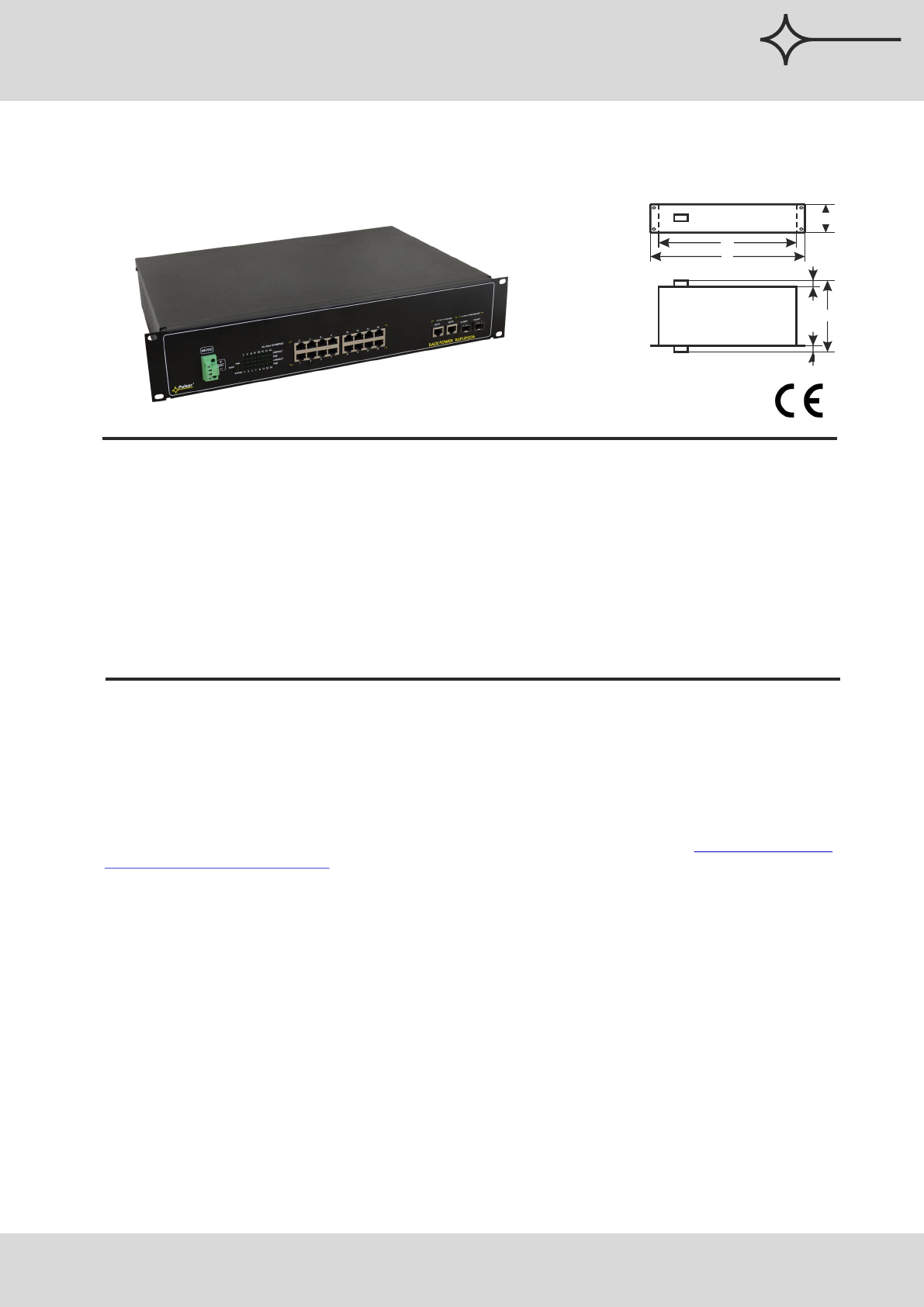

s RSFUPS116 16-port switch with buffer power supply

RACK mounted

for 16 IP cameras,

CODE

TYPE

DESCRIPTION

RSFUPS116 is a 16-ports PoE in RACK 19” enclosure, switch designed for uninterrupted supply

IP cameras operating in IEEE 802.3af/at standard.

In case of power decay, a battery back-up is activated immediately.

The approximate backup time is given assuming that all output ports are used (using typical devices and

17Ah batteries). The electricity consumption for own needs and the energy efficiency of the power intake track were

taken into account. The exact description of how to perform the calculations can be found at:

Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 16 ports of the

switch. The G1/TP, G2/TP ports is used for connection of another network device via RJ45 connector. The switch is

fitted with SFP slots; the use of fiber optic module (GBIC) allows fiber optic transmission. The LEDs at the front

panel indicate the operation status. The switch is housed in a metal enclosure (color RAL 9005).

The PoE technology ensures a network connection and reduces installation costs by eliminating the need to

supply a separate power cable for each device. This method allows supplying other network devices, such as IP

phone, wireless access point or router.

"Approximate backup

time - assumptions for calculations"

EN**

wyjście TAMPER : przewody 30cm

Tel. +48-14-610-19-40, fax: +48-14- 610-19-50, www.pulsar.pl, e-mail: sales@pulsar.pl

RSFUPS116 16-port switch with buffer power supply

for 16 IP cameras, RACK mounted

Features:

· DC 54V uninterruptible power supply of 16 IP cameras

· 16 PoE ports 10/100 Mb/s, (1÷16 ports) (data and

power supply)

· 2 ports 10/100/1000 Mb/s (G1/TP, G2/TP2 ports)

· 2 ports 10/100/1000 Mb/s SFP (G1/SFP, G2/SFP ports)

· wide range of mains supply AC: 176÷264V AC

· battery charging and maintenance control

· excessive discharging (UVP) protection

· battery charge current: 0,5A

(batteries 4x7Ah / 4x17Ah)

· Approximate backup time: 5h 15min

· battery output protection against short circuit

and reverse connection

· 30W for each PoE port, supports devices

complaint with the IEEE802.3af/at (PoE+)

standard

· Supports auto-learning and auto-aging of MAC

addresses (16K size)

· LED indication

· Metal enclosure RACK 19” 2U

- color: black RAL 9005

· warranty – 2 year from the production date

Pulsar

Summary of content (2 pages)

PAGE 1
Pulsar RSFUPS116 16-ports switch with buffer power supply for 16 IP cameras, RACK mounted CODE: TYPE: EN** RSFUPS116 v.1.
PAGE 2
RSFUPS116 16-ports switch with buffer power supply for 16 IP cameras, RACK mounted Pulsar PARAMETERS OF THE SWITCH Ports 16 x PoE (10/100 Mb/s) (RJ-45) 2 x UPLINK (10/100/1000 Mb/s) (RJ-45) 2 x UPLINK (10/100/1000 Mb/s) (SFP) with connection speed auto-negotiation and MDI/MDIX Auto Cross) IEEE 802.3af/at (1÷16 ports), 54V DC / 30W at each port * Used pairs 4/5 (+), 7/8 (-) IEEE802.3, 802.3u, 802.
