User Instructions

www.pulsar.pl ROUPS12VR RACK POWER CCTV
4
LED DVR – Green LED voltage indication at the recorder output
DVR – power supply output of the recorder
BAT – battery output
ALARM – technical output of collective failure – relay
BUZZER, micro switch, turning ON / OFF of acoustic indication
switch in the top position, indication ON
switch in the down position, indication OFF
F
DVR
, melting fuses in the recorder DVR (+) power supply circuits F5A
230V AC INPUT, power socket 230V AC, power cable 1,5m included
F
MAINS
, fuse in the supply circuit 230V AC, T 3,15A/250V

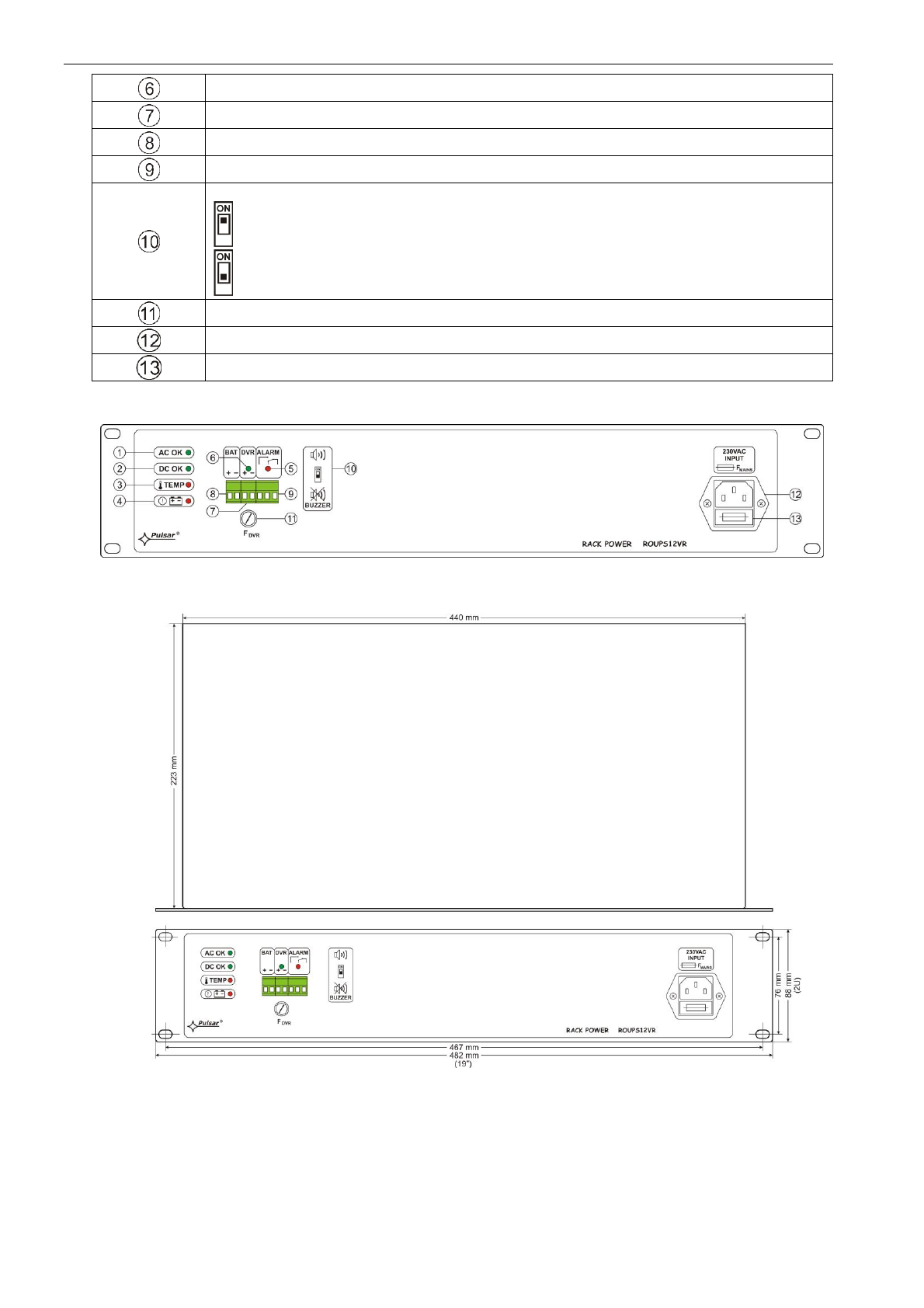

Fig. 2. The front power of the power supply unit.
Fig.3. The view of the PSU.
1.4. Specifications.
- electrical parameters (tab.2)
- mechanical parameters (tab.3)
- operation safety (tab.4)
- operating parameters (tab.5)
