User Instructions

www.pulsar.pl ROUPS12VR RACK POWER CCTV
2
Features:
 DC 12V/5A uninterruptible power supply of the
recorder
 outputs protected by 5A melting fuses
 the output voltage of 12V is supplied regardless
of the battery status
 wide range of mains supply AC: 176÷264V AC
 battery charging and maintenance control
 excessive discharging (UVP) protection
 battery output protection against short circuit
and reverse connection
 battery charge current: 1A
(batteries 1×7Ah / 1x17Ah / 1x28Ah)
 control of voltage presence at the output
 acoustic indication of failure
 LED optical indication: LED: AC, DC, TEMP, LoB,
ALARM, DVR
 the ALARM technical output of collective failure – relay
type, activated by:
 230V AC power loss
 low voltage of the PSU (<11,5V)
 activation of the output fuse
 too high temperature of the PSU (>70°C)
 the PSU failure
 protections:
 SCP short-circuit protection
 OVP overvoltage protection
 overvoltage protection
 overload protection OLP
 forced cooling (fan)
 warranty – 2 year from the production date

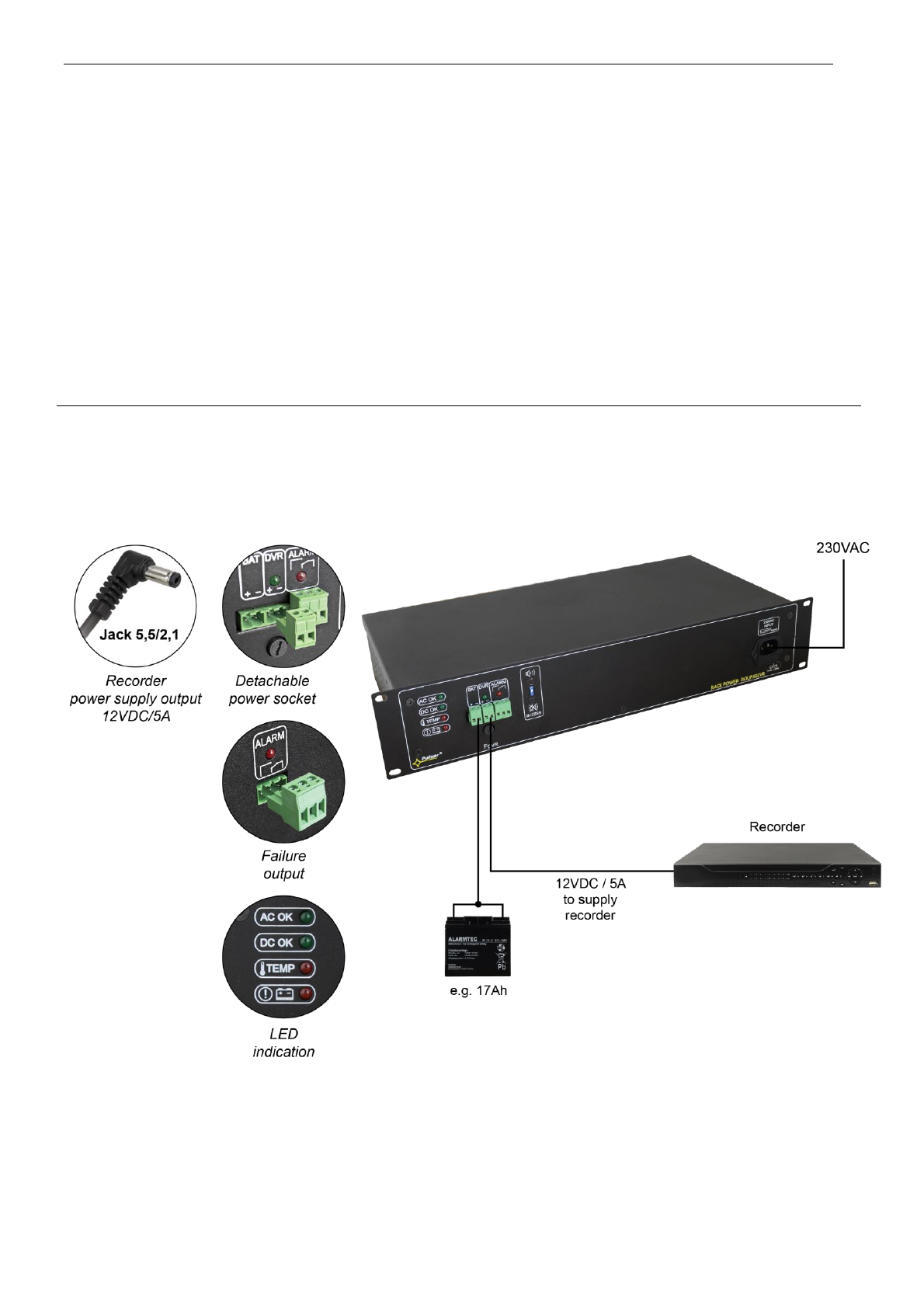

Sample application of the RACK power supply unit.
