User Instructions

www.pulsar.pl PSDC161214
2
Features:
•
the 16x0,87A/12V DC power output for powering
16 HD cameras
• output voltage adjustment 12V÷15V DC
• 16 outputs protected with 1A fuses
• jumper selectable fuses: glass fuse or polymer fuse
• wide range of supply voltage 176÷264VAC
• high efficiency 85%
• LED indication
•
FPS technical output of fuse activation indication
• protections:
• SCP short-circuit protection
• OVP over voltage protection
• surge protection
• OLP overload protection
• against tamperin
• warranty - 3 year from the production date

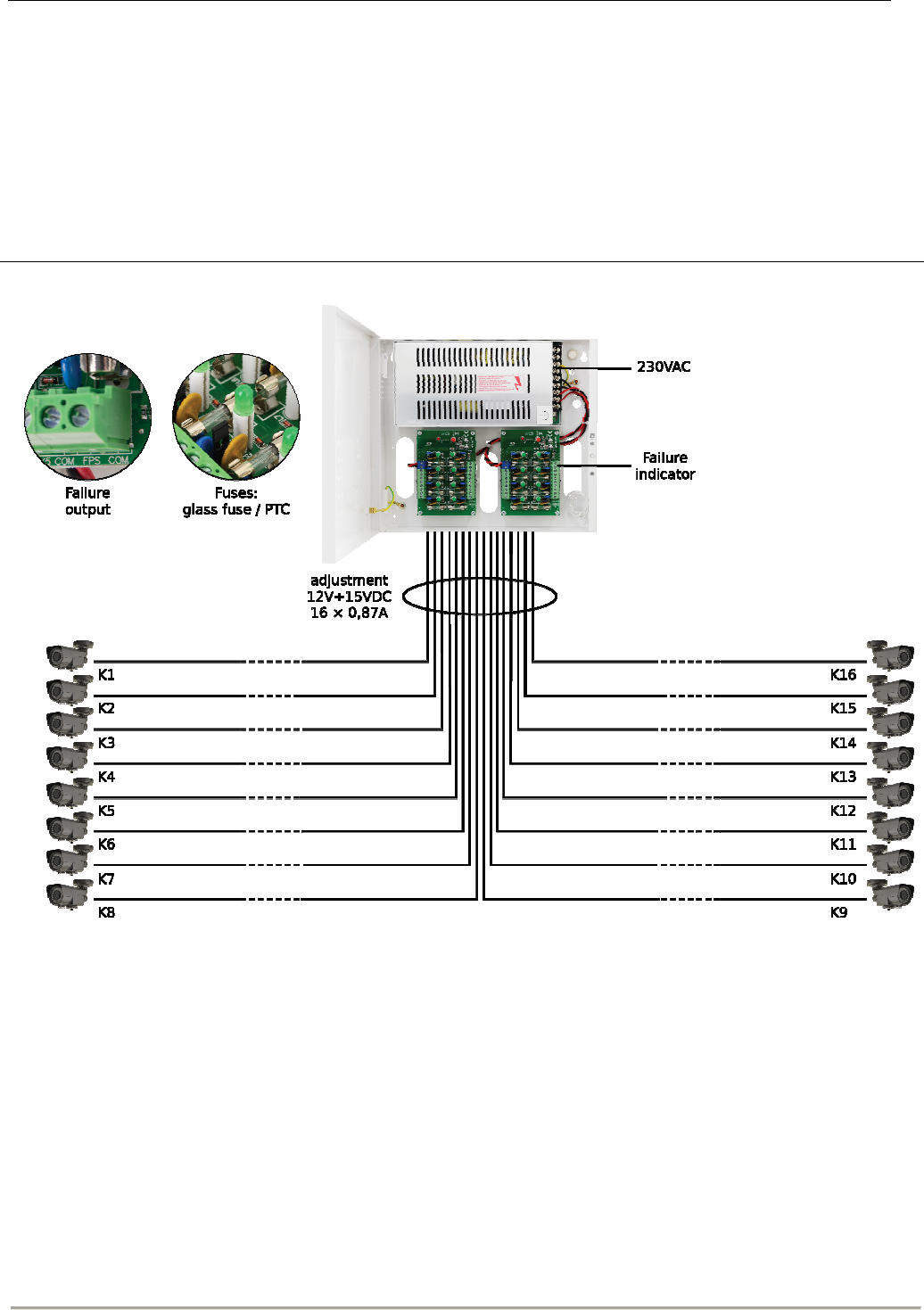

Example of power supply of up to 16 HD cameras.
All channels adjustable in the range 12V÷15V DC, 16 x 0,87A
CONTENTS:
1. Technical description.
1.1 General description
1.2 Block diagram
1.3 Description of PSU components and connectors
1.4 Specifications
2. Installation.
2.1 Requirements
2.2 Installation procedure
3. Operating status indication.
3.1 LED indication
3.2 Technical outputs
4. Operation and use.
4.1 Overload or short circuit at the PSU output
4.2 Maintenance
