4

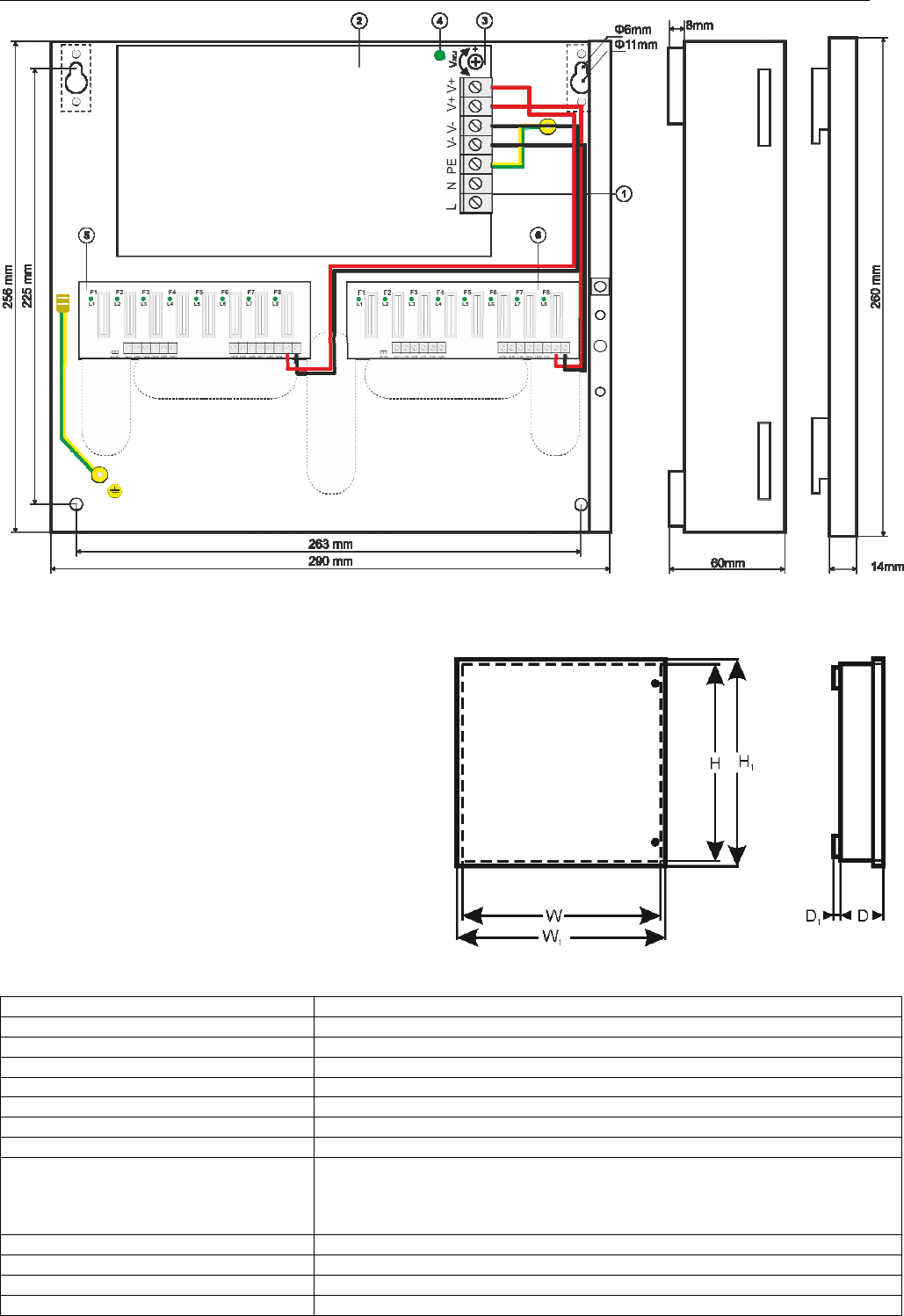

Fig.3. The view of the PSU.
1.4. Specifications:
- electrical specifications (tab.3)
- mechanical specifications (tab.4)
- operation safety (tab.5)
- operating specifications (tab.6)
Electrical specifications (tab. 3).
Supply voltage 176 ÷ 264V AC
Current consumption 1,1A @230VAC max.
PSU power 150Wmax.
Efficiency 83%
Output voltage 12V DC
Output current 16x 0,8A (Σ I = 12A) max. @12V
Output voltage adjustment range 12V÷15V DC
Ripple voltage 100mV p-p max.
Short-circuit protection SCP
LB8 STRIP (A, B)
16x F 0,8A fuse
PSU MODULE
105% ÷ 150% of PSU power, electronic current limiting
Overload protection OLP 105% ÷ 150% of PSU power, electronic current limiting
Surge protection varistors
Overvoltage protection OVP >16V (activation requires disconnecting the load or supply for about 20 s.)
F1÷ F8 fuses LB8/A, LB8/B F 0,8A/250V
