www.pulsar.pl PSDC161212T

2

Features:

•

the 16x0,8A/12V DC power output for powering

16 HD cameras

• output voltage adjustment 12V÷15V DC

• 16 outputs protected with 0,8A fuses

• wide range of supply voltage 176÷264V AC

• high efficiency 83%

• LED indication

•

protections:

• SCP short-circuit protection

• OVP over voltage protection

• surge protection

• OLP overload protection

• warranty – 2 year from the production date

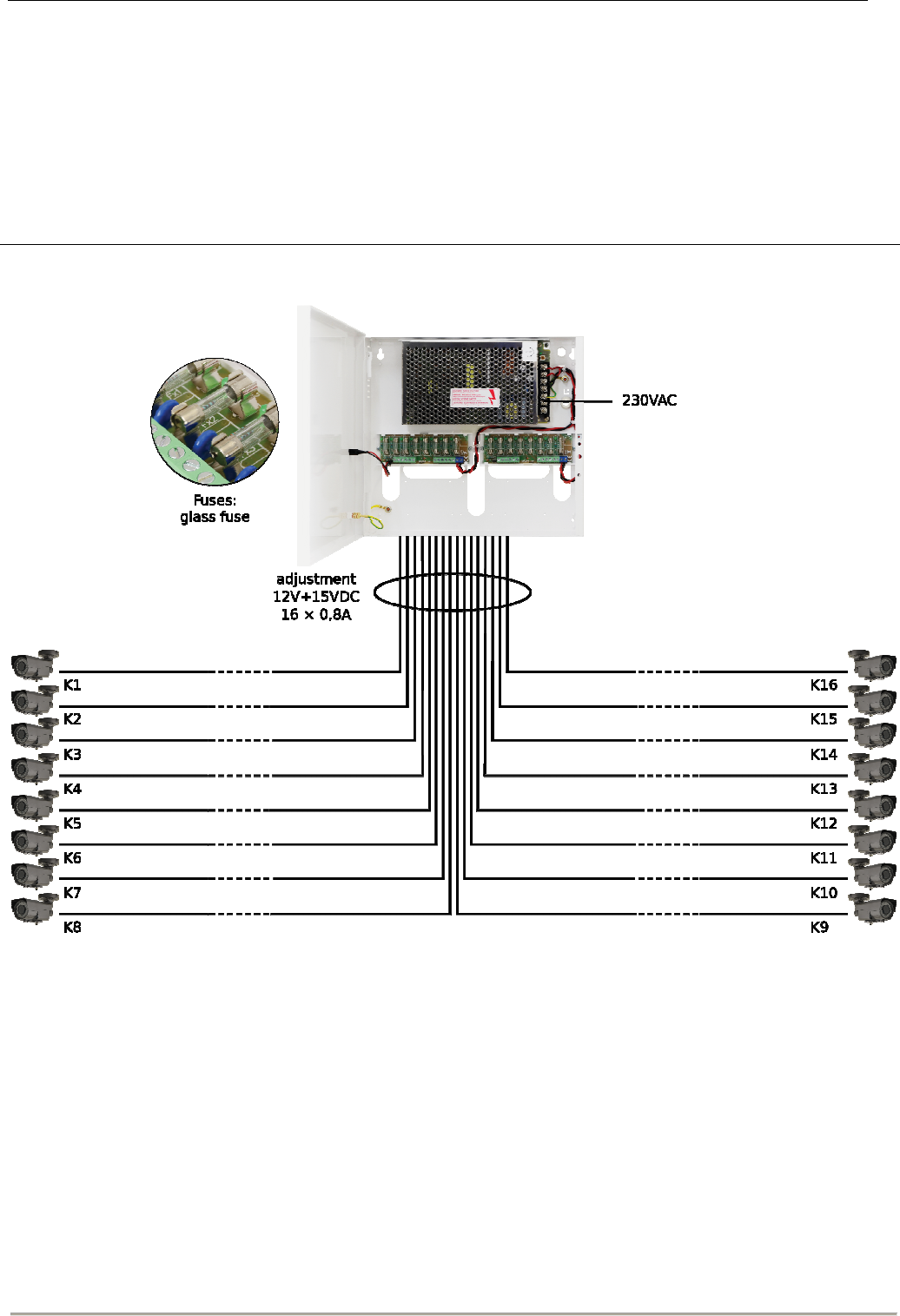

Example of power supply of up to 16 HD cameras.

All channels adjustable in the range 12V÷15V DC, 16 x 0,8A

CONTENTS:

1. Technical description.

1.1 General description

1.2 Block diagram

1.3 Description of PSU components and connectors

1.4 Specifications

2. Installation.

2.1 Requirements

2.2 Installation procedure

3. Operating status indication.

3.1 LED indication

4. Operation and use.

4.1 Overload or short circuit at the PSU output

4.2 Activation of the OVP system of the PSU

4.3 Maintenance
