The shock protection circuit shall be performed with a particular care, i.e. the yellow and

green wire coat of the power cable shall stick to one side of the ‘PE’ terminal. Using the PSU

without a properly made and fully operational shock protection circuit is UNACCEPTABLE! It

can cause a device failure or an electric shock.

4. Connect load/loads to proper output connectors of the power supply (positive pole is marked as +V,

negative pole as -V)

5. Connect the technical outputs to the central or other device.

6. Connect the battery in accordance with the signs (colours).

7. Once the tests and operation control have been completed, the enclosure/cabinet can be locked.

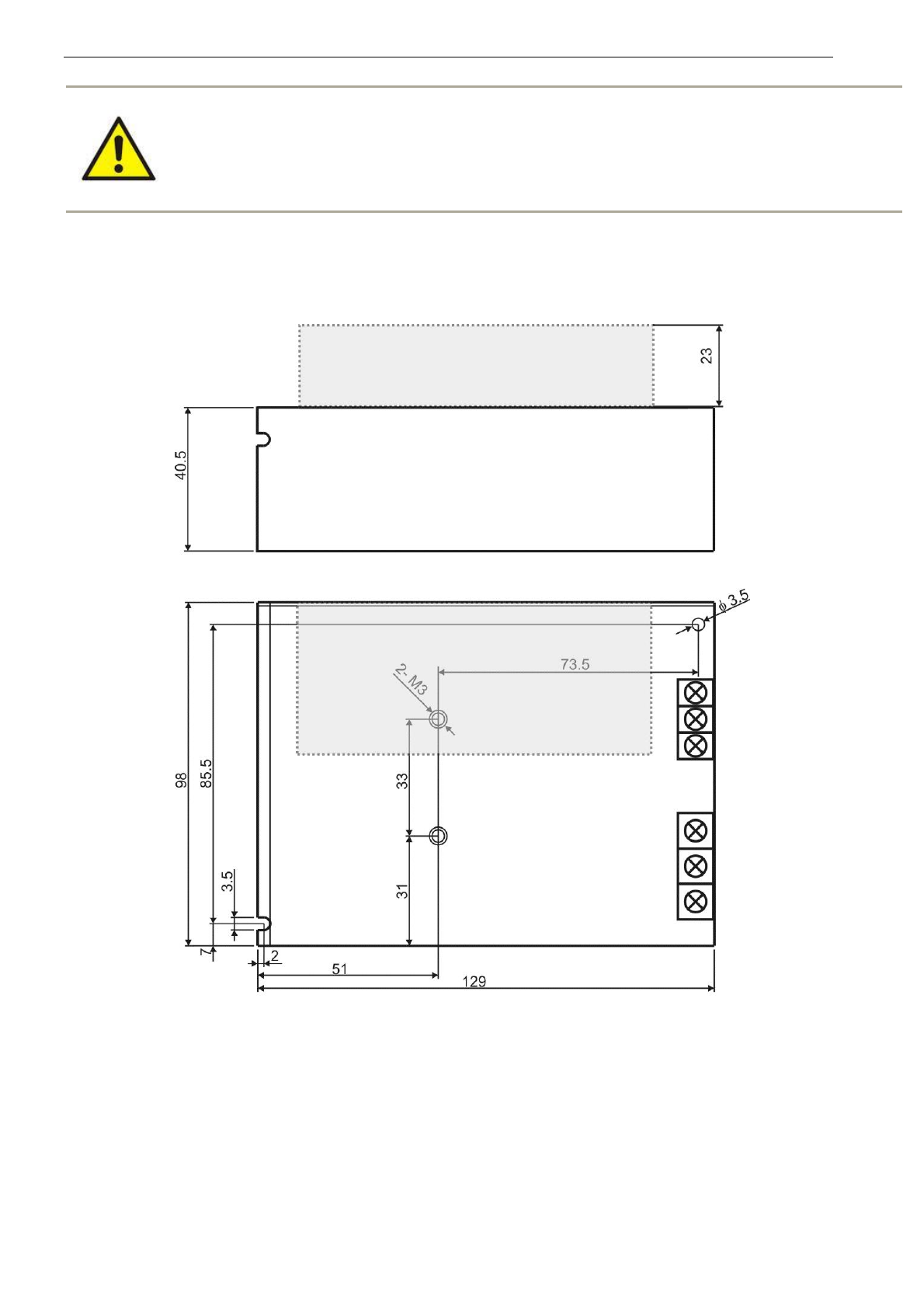

Fig 3. Mechanical view of the PSU.
