Operating instructions

2
1.2 Description components and connectors.

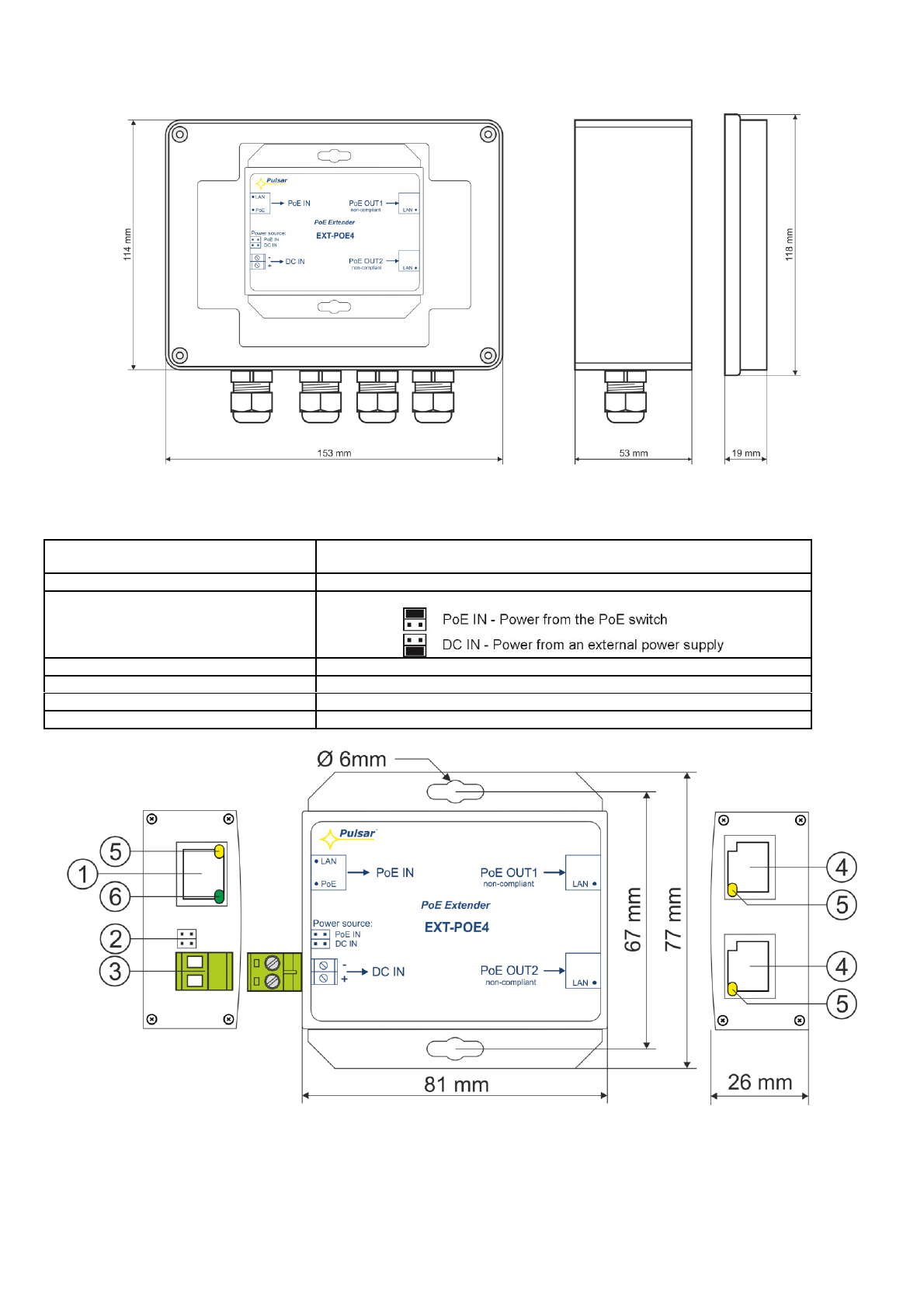

Fig. 1. View of enclosure.
Table 1. (See fig. 2)
Element no.
(Fig. 2)
Description
[1]
The PoE IN-input port
[2]
Power source - power supply selection jumper:
[3]
DC IN - power input
[4]
PoE OUT 1/2 - output ports
[5]
LED LAN (yellow)
[6]
LED PoE (green)
Fig. 2. The view of the extender.
