Operating instructions

EXT-POE4H

v1.0

Extender EXT-POE4 in hermetic enclosure

Edition: 1 from 18.01.2018

Supersedes edition: -----------

Features:

 The output voltage range 44-57VDC

 Can be powered from a PoE switch or external power

supply

 The PoE IN input compliant with the IEEE802.3af/at

standard

 2 x PoE OUT output

 Increases Ethernet and PoE power range by 100 meters

 Designed for 10Mbit/s and 100Mbit/s network

 Pole mounting option (requires the OZB1 adapter -

optional accessory)

 LED optical signalization

 protections:

 surge protection (PoE input)

 OLP overload protection

 SCP short circuit protection

 IP56 hermetic enclosure

 warranty – 1 year from the production date

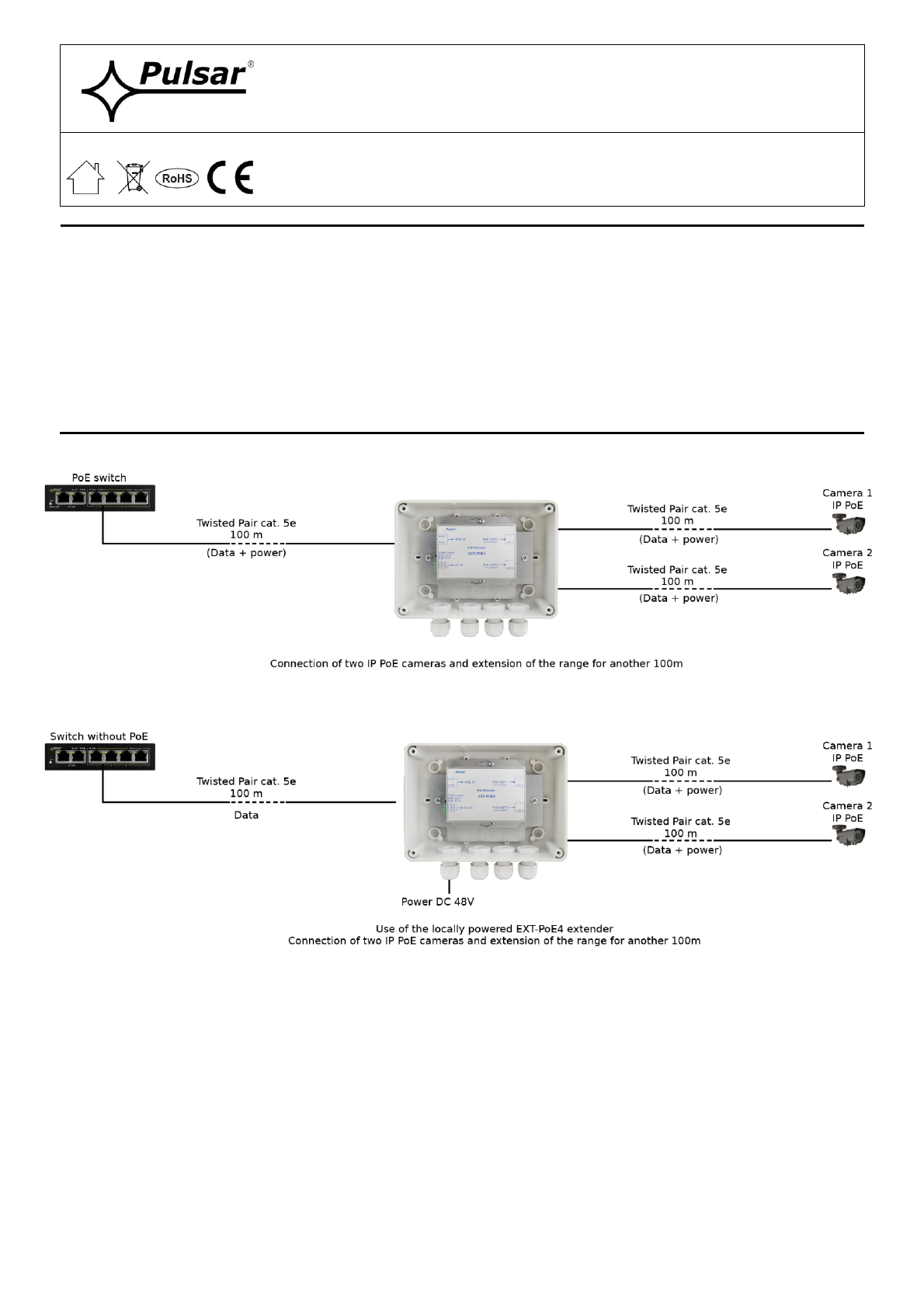

Example of use.

1. Technical description.

1.1. General description.

The EXT-POE4H extender is a device designed to increase the PoE and Ethernet range by additional 100 meters

using UTP Cat. 5 cable. The Extender can be powered using a another PoE-compliant device (PoE IN input) or an external

44-57VDC power supply unit (DC IN input). The power source is selected using the Power Source jumper (see Fig. 1). The

output voltage and data are available at the PoE OUT1 and OUT2 outputs designed for connecting cameras or other IP

devices using PoE power supply. The maximum load current is 0,3A (total =0,4A max.). The PoE OUT1 and PoE OUT2

ports are supplied over 4/5 (+) and 7/8 (-) pairs, which, according to the Ethernet standard, are not used for data

transmission (data transmission uses 1/2 and 3/6 twisted pairs).

This device cannot be used on Gigabit Ethernet networks, where all twisted pairs are involved in data

transmission.

PAGE 1
EXT-POE4H v1.0 Extender EXT-POE4 in hermetic enclosure Edition: 1 from 18.01.2018 Supersedes edition: ----------EN Features:        The output voltage range 44-57VDC Can be powered from a PoE switch or external power supply The PoE IN input compliant with the IEEE802.
PAGE 2
1.2 Description components and connectors. Fig. 1. View of enclosure. Table 1. (See fig. 2) Element no. (Fig. 2) [1] Description The PoE IN-input port Power source - power supply selection jumper: [2] [3] [4] [5] [6] DC IN - power input PoE OUT 1/2 - output ports LED LAN (yellow) LED PoE (green) Fig. 2. The view of the extender.
PAGE 3
1.3. Technical parameters. Tabla 2. 802.3af/at (44 ÷ 57VDC) <30mA 20W max. applying power 0,3A/ports (∑=0,4A max.
PAGE 4
WEEE MARK According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.
