EXT-POE1H
v1.1/II

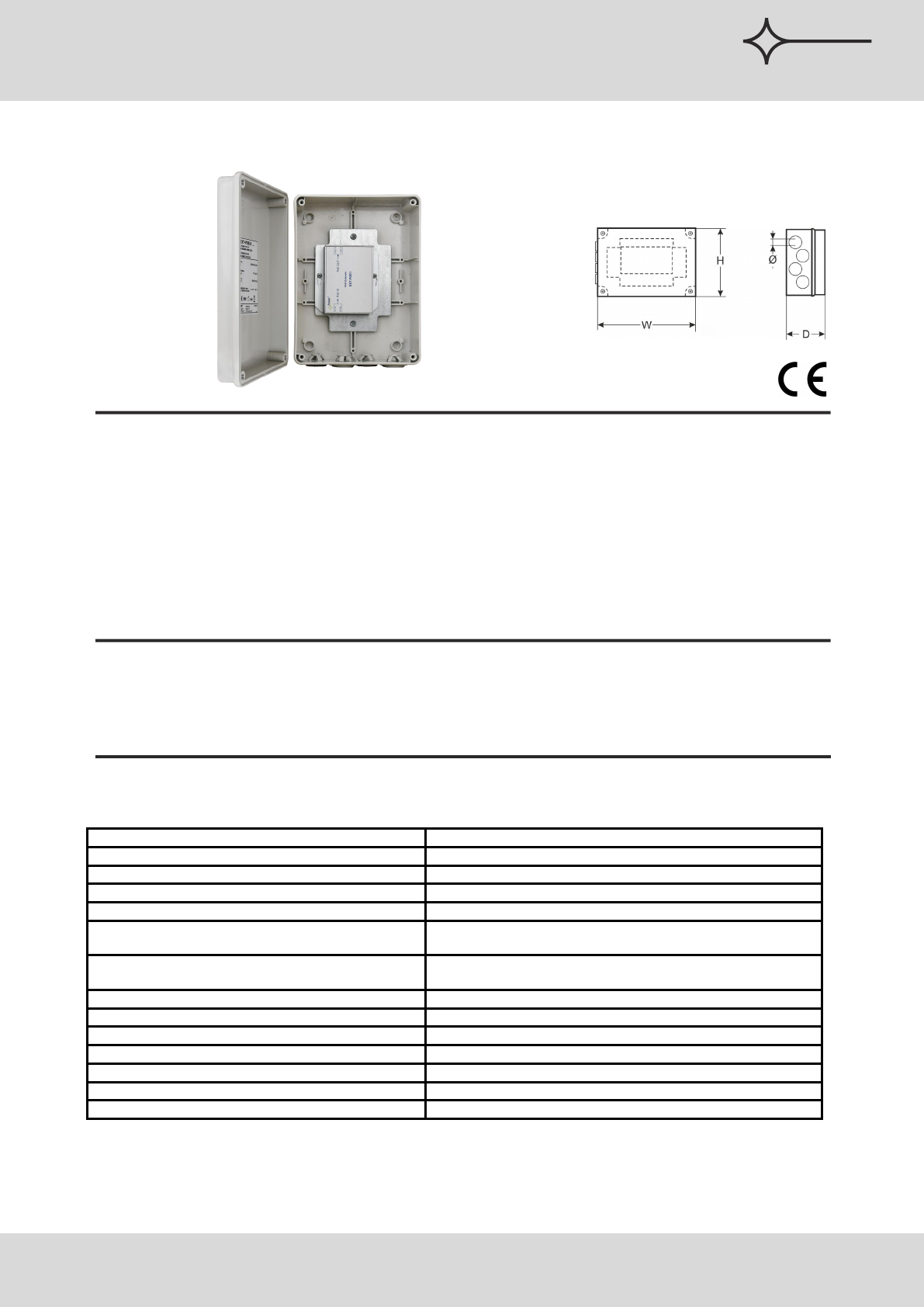

Extender EXT-POE1 in hermetic enclosure
CODE:
TYPE:
EN
DESCRIPTION
The EXT-POE1H extender is a device designed to increase the PoE and Ethernet range by additional 100 meters
using UTP Cat. 5/5e cable. The Extender can be powered using a PoE switch or another PoE-compliant device (PoE IN
input). The output voltage and data are available at the PoE OUT1 output designed for connecting cameras or other IP
devices compliance with IEEE802.3af.
TECHNICAL DATA
wyjście TAMPER : przewody 30cm
Tel. +48 14-610-19-40, fax: +48 14- 610-19-50, www.pulsar.pl, e-mail: sales@pulsar.pl
EXT-POE1H
Extender EXT-POE1 in hermetic enclosure
Pulsar
®
Features:
· The output voltage range 44-57 V DC
· Power from PoE switch
· The PoE IN input compliant with the IEEE802.3af/at
standard
· The PoE OUT output compliant with the IEEE 802.3af
standard
· Increases Ethernet and PoE power range by 100 meters
· Designed for 10 Mbit/s and 100 Mbit/s network
· Pole mounting option (requires the OZB2 adapter -
optional accessory)
· LED optical signalization
· protections:
· surge protection (PoE input)
· OLP overload protection
· SCP short circuit protection
· IP56 hermetic enclosure
· warranty – 1 year from the production
date
Supply voltage
compliant with 802.3af/at (44÷57 V DC)
Current consumption by PSU systems
<30 mA
Module power
15,4 W max.
Output voltage
compliant with 802.3af
Output current
0,3 A
Overload protection OLP
Short circuit protection SCP
150 % ÷ 200 % of nominal output current, automatic recovery
LED operation indication
Yellow LAN LED - indicating the LAN connection status
Green PoE LED - presence of input/output voltage
Range of operating temperatures
-25 ºC÷50 ºC
External dimensions
W=198, H=148, D=78 [+/- 2 mm]
Ø cables
6÷13 mm
Connectors: - IN/OUT PoE
RJ45 8P8C
Net/gross weight
0,55 kg / 0,62 kg
Storage temperature
-25 ºC...+60 ºC
Declarations, warranty
CE, 1 year from the production date
