Operating instructions

www.pulsar.pl EN54-3A28 RED POWER
25

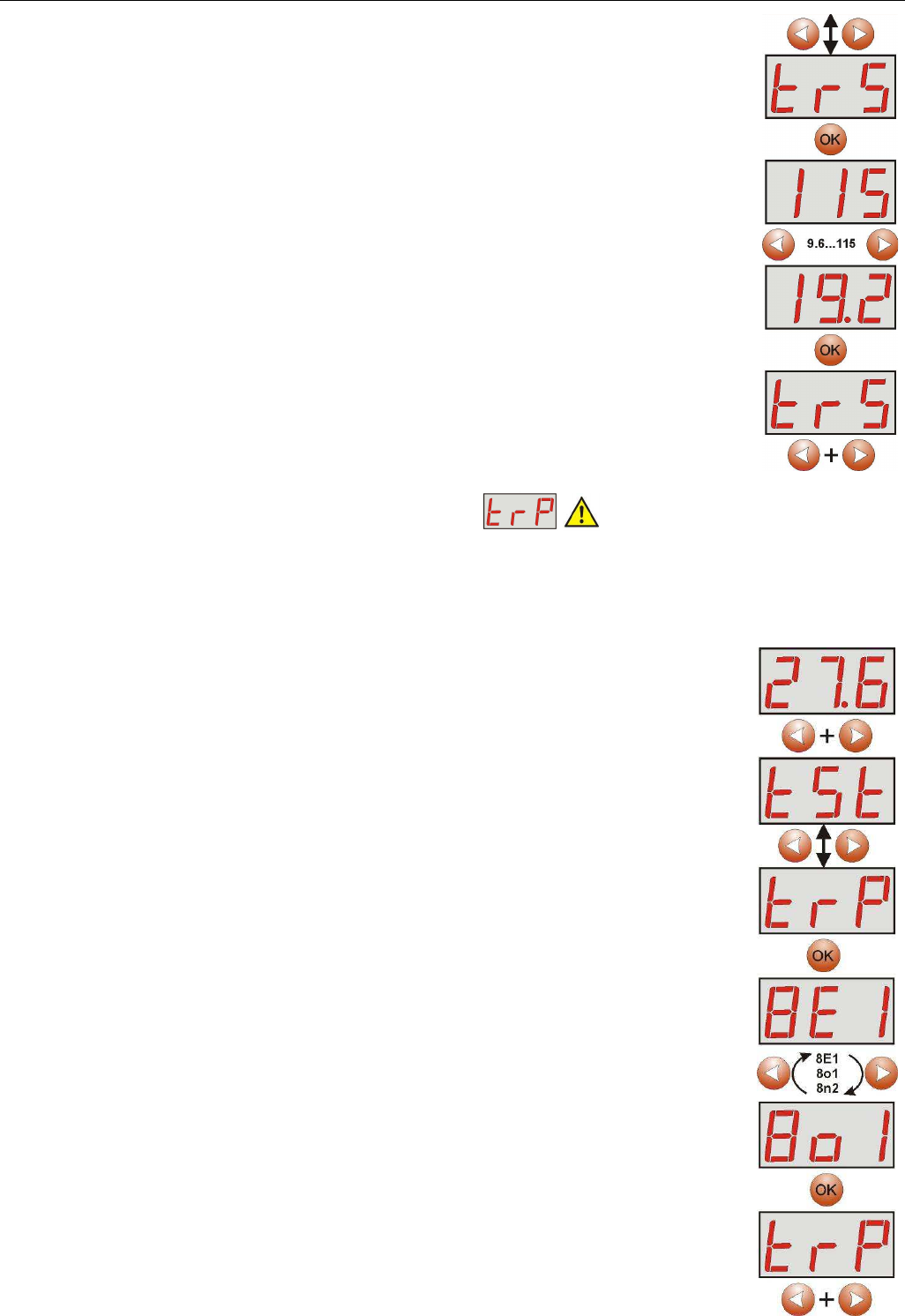

- use the „<” or „>” buttons to display the „trS” parameter
- press „OK”
- The information about the transmission speed will be displayed
- use the „<” or „>” buttons in order to set the required transmission speed,
- 9.6k
:
- 115.2k (factory setting)
- confirm by pressing „OK”
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
6.3.8. Setting the parity of the transmission “trP” applies to cooperation with
PowerSecurity
All the parameters responsible for communication between the PSU and the computer, namely the
address, parity and speed should have the same settings for both the PSU and the PowerSecurity program.
The PSU has preset transmission parameters of 115200 baud 8E1; if these values were changed, they
should be restored to original settings.
- simultaneously press the „<,>” rightmost and leftmost buttons
- The „tSt” parameter will be displayed
- use the „<” or „>” buttons to display the „trP” parameter
- press „OK”
- The information about the parity of the transmission will be displayed on the panel
- use the „<” or „>” buttons in order to set the required communication mode,
- 8N2
- 8E1 (factory setting)
- 8O1
- confirm by pressing „OK”
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
