User Instructions

AWZ591
v1.0
LBC8/8x1A/FTA fuse module with housing
Edition: 2 from 10.04.2018
Supersedes edition: 1 from 04.07.2014
Technical description.
The LBC8 fuse module is designed for power distribution in CCTV systems requiring the voltage in the range 10V
÷ 30V DC. It is equipped with two power inputs: screw connection and DC jack 5.5/2.1 and eight AUX1 ÷ AUX8 power
outputs independently protected with 1A melting fuses. PTC fuse activation is indicated by switching off the
corresponding LED of the module: L1 for AUX1, L2 for AUX2 etc. Additionally, the module’s input is protected by a
varistor, protecting the power supply against surges in the power supply system.

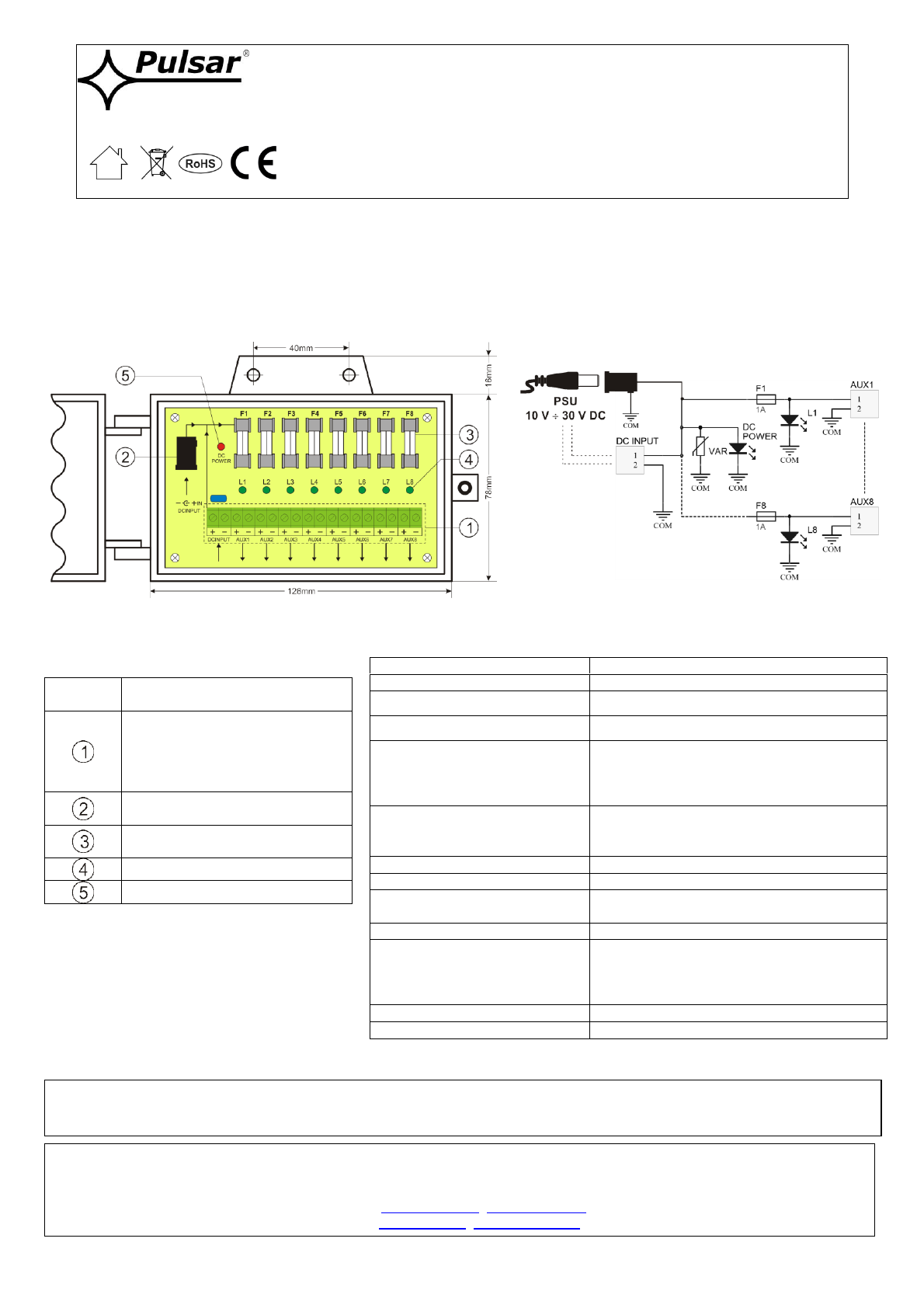

Fig.1. The scheme of the module.
Fig.2. Block diagram.
Table 1. The description of components and
module connectors.
Part no.
[Fig. 2]
Description
Terminals:
DC INPUT DC power input
AUX1 ÷ AUX8 independently
protected outputs,
(common terminal „–”)
DC INPUT additional power input–
DC jack 5,5/2,1
F1 ÷ F8 fuses in the AUX (+)
circuit
L1 ÷ L8 green LEDs
DC POWER red LED
Table 2. Technical parameters.
Supply voltage
10V ÷ 30V DC
Current consumption
8 mA ÷ 70 mA @ U
IN
= 10V ÷ 30V DC
Number of power inputs
2: DC jack 5,5/2,1 or screw connection
Number of power outputs
8 (AUX terminals)
Protection types:
- short-circuit protection SCP
- overload protection OLP
- surge protection
- 8 x 1A
- 8 x 1A
- varistor
Optical indication
Red LED – DC supply voltage indicator
Green L1 ÷ L8 LEDs –AUX1 ÷ AUX8
outputs status
Fuses F1 ÷ F8
8 x F1A
Operation conditions
2nd environmental class, -10°C ÷40°C
Dimensions
W=150, H=94, D=42 (+/-2mm)
W1=126, H1=78 (+/-2mm)
Mounting
Mounting screws x2 (Ø4mm holes)
Connectors:
- supply outputs
- supply inputs
- screw connection Ф0,51÷2,05 (AWG 24-12)
- DC jack 5,5/2,1
- screw connection Ф0,51÷2,05 (AWG 24-12)
Net/gross weight
0,17kg / 0,24kg
Declarations, warranty
CE, 2 year from the production date
EN**
Pulsar
Siedlec 150, 32-744 Łapczyca, Poland
Phone [phone], Fax [phone]
E-mail: [e-mail], [e-mail]
http:// www.pulsar.pl, www.zasilacze.pl
