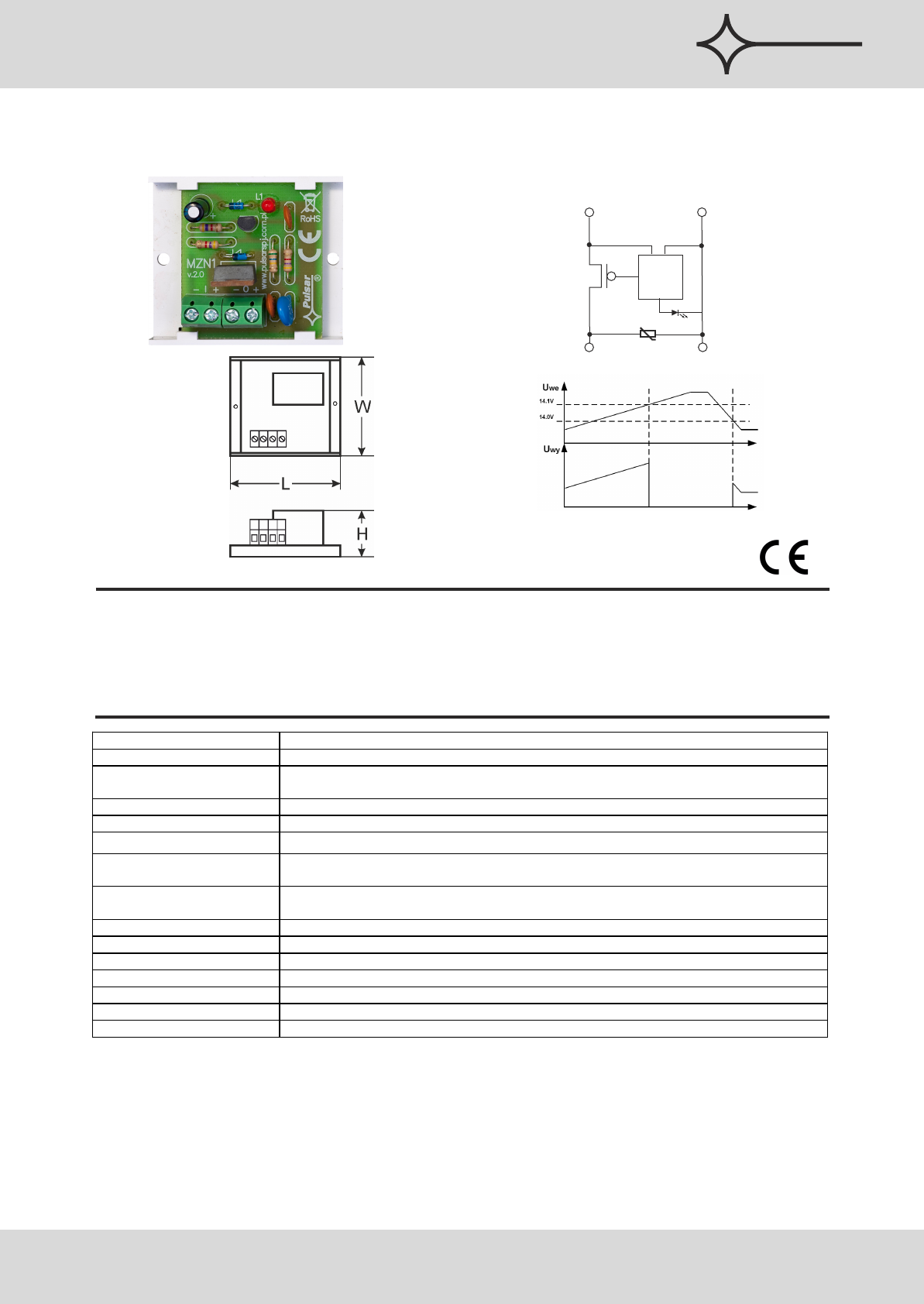

Data Sheet

AWZ540 v.2.0/V
MZN1 Over voltage protection module
CODE:
NAME:
DESCRIPTION
The over voltage protection module is intended for protecting systems powered with 12V DC against being
supplied with too high supply power (e.g. as a result of damaged stabilising system of a PSU). When the maximum
accessible input voltage is detected, the output is cut off protecting the receivers from damaging. Activation of the system
is indicated by the red LED – L1.
SPECIFICATIONS
EN
Tel. [phone], fax: [phone], www.pulsar.pl, e-mail:[e-mail]
Over voltage module
Protection
Pulsar
®
Supply voltage
9V ÷ 40V DC
Output voltage
9V ÷ 14,1V DC (+/-0,4V)
Output disconnection
voltage
14,1V (+/-0,4V)
Switching hysteresis
+/-0,1V
Load current
4A max
Voltage drop
ΔU=0,2V max @4A
Approximate time of
voltage disconnection
100us @ I=1,7A
Approximate time of
voltage connection
250us @ I=1,7A
LED indication
Rred LED - L1- (indicates activation of the system that cuts off the output voltage)
Operating conditions
II environmental class, -10°C ÷ 50°C
Dimensions
L=50, W=43, H=26 (+/-2mm)
Installation:
Iinstallation tape or installation bolt x2
Connectors
Screw connectors Ф0,41÷1,63 (AWG 26-14)
Net/gross weight
0,02kg / 0,04kg
Declarations, warranty
CE, 2 year from the production date
CTRL
IN
OUT
GND
GND
