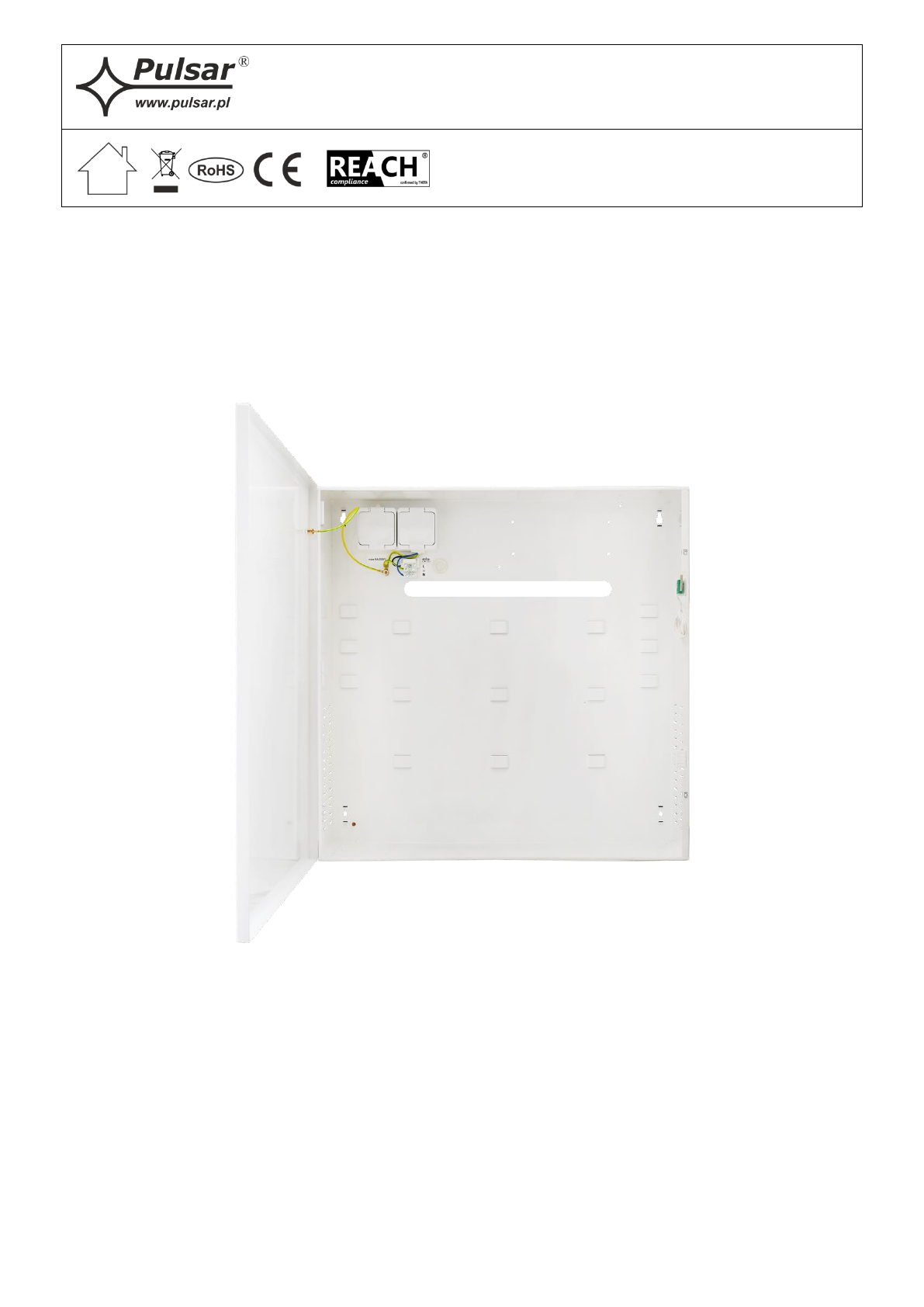

AWO532W

V1.0

RACK 3U vertical withe housing

Edition: 1 from 15.03.2021

Supercedes the edition: ------------

1. Product description.

Vertical surface-mounted RACK 3U enclosure is universal solution for organizing and protecting against unauthorized

access or theft of devices in RACK 19 ” standard with total height of up to 3U. It has special system for hanging devices with

possibility of choosing 3 mounting heights and convenient way to remove devices from enclosure. There are also special

holders for mounting straps for devices without RACK mounting standard. Inside is double ~ 230 V power socket with power

connector equipped with glass fuse.

Enclosures construction is compliant with requirements of General Data Protection Regulation (GDPR), as personal

data must be protected and stored securely (possibility of installing two locks with different codes).

Possibility of install inside:

 RACK switches e.g.: SF, RSFUPS series - back enclosure

 switche desktop e.g.: S, SG, SF series sing adapter RACK RAPDS

 recorder – back enclosure – straps – ZPR / RACK bracket

 Power supply units: PS-12V10A, PS-12V15A, PS-48V3A, PSB-12V10A, PSB-12V15A, PSB-24V5A, PSB-24V7A,

PSB-48V3A.

 Batteries

 Mounting space: 530x380x155 [mm +/-2] (WxHxD)

Main features:

 Surface mounted construction - compact and convenient solution

 Removable door (convenient installation of wiring and other equipment)

 RACK brackets – 3U, ith adjustable mounting height on 3 levels

 Knock-outs and holes in the back of enclosure.

 Enclosure screwed with M4 screws or closed with key locks (option)

Summary of content (4 pages)

PAGE 1
AWO532W V1.0 RACK 3U vertical withe housing Edition: 1 from 15.03.2021 Supercedes the edition: ------------ EN 1. Product description. Vertical surface-mounted RACK 3U enclosure is universal solution for organizing and protecting against unauthorized access or theft of devices in RACK 19 ” standard with total height of up to 3U. It has special system for hanging devices with possibility of choosing 3 mounting heights and convenient way to remove devices from enclosure.
PAGE 2
. Technical parameters Dimensions: Mounting space: Position of RACK 19" profiles Fitting battery: Net / Gross weight: Operation conditions: Made of: Antisabotage protection: Destination: Components: Deklaracje, gwarancja: Uwagi: W=535, H=540, D=165 [mm, +/-2] W1=540 H1=545, D1=14 [mm, +/-2] W2=530 H2=380, D2=155 [mm, +/-2] H3=380 or 324 or 268 [mm, +/-2] 4x7 Ah; 2x17 Ah 8,16 / 9,14 [kg] 2nd environmental class, -10°C ÷ 40°C DC01 sheet, thickness: 1mm, colour: RAL9003 (white) - anticorrosion protection mic
PAGE 3
Table 2. (See Fig. 1) Component No. (Fig. 1) [1] [2] [3] [4] [5] Description Power Socket of ~230 V Power supply connector – L, N Protective conductor connector Space for power supply (see: possibility of install inside) Brackets for mounting RACK Holders for mounting straps 4. Installation. 4.1 Requirements. The enclosure should be mounted by a qualified installer, holding relevant permits and licenses (applicable and required fora given country) for 230 V and low-voltage installations.
PAGE 4
5. Examples of configurations. (presented devices are not part of equipment). Pulsar Siedlec 150, 32-744 Łapczyca, Polska Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.
