QS3.241
Q-Series
24V, 3.4A, SINGLE PHASE INPUT
20. USED SUBSTANCES
The unit does not release any silicone and is suitable for use in paint shops.
The unit conforms to the RoHS directives 2002/95/EC and 2011/65/EC.
Electrolytic capacitors included in this unit do not use electrolytes such as Quaternary Ammonium Salt Systems.
Plastic housings and other molded plastic materials are free of halogens, wires and cables are not PVC insulated.
The production material within our production does not include following toxic chemicals:
Polychlorized Biphenyl (PCB), Polychlorized Terphenyl (PCT), Pentachlorophenol (PCP), Polychlorinated naphthalene
(PCN), Polybrom Biphenyll (PBB), Polybrom Bipheny-oxyd (PBO), Polybrominated Diphenylether (PBDE), Polychlorinated
Diphenylether (PCDE), Polydibromphenyl Oxyd (PBDO), Cadmium, Asbestos, Mercury, Silicia
21. PHYSICAL DIMENSIONS AND WEIGHT
Weight 440g / 0.97lb
DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
The DIN-rail height must be added to the unit depth (102mm) to calculate the total required
installation depth.
Installation Clearances See chapter 2

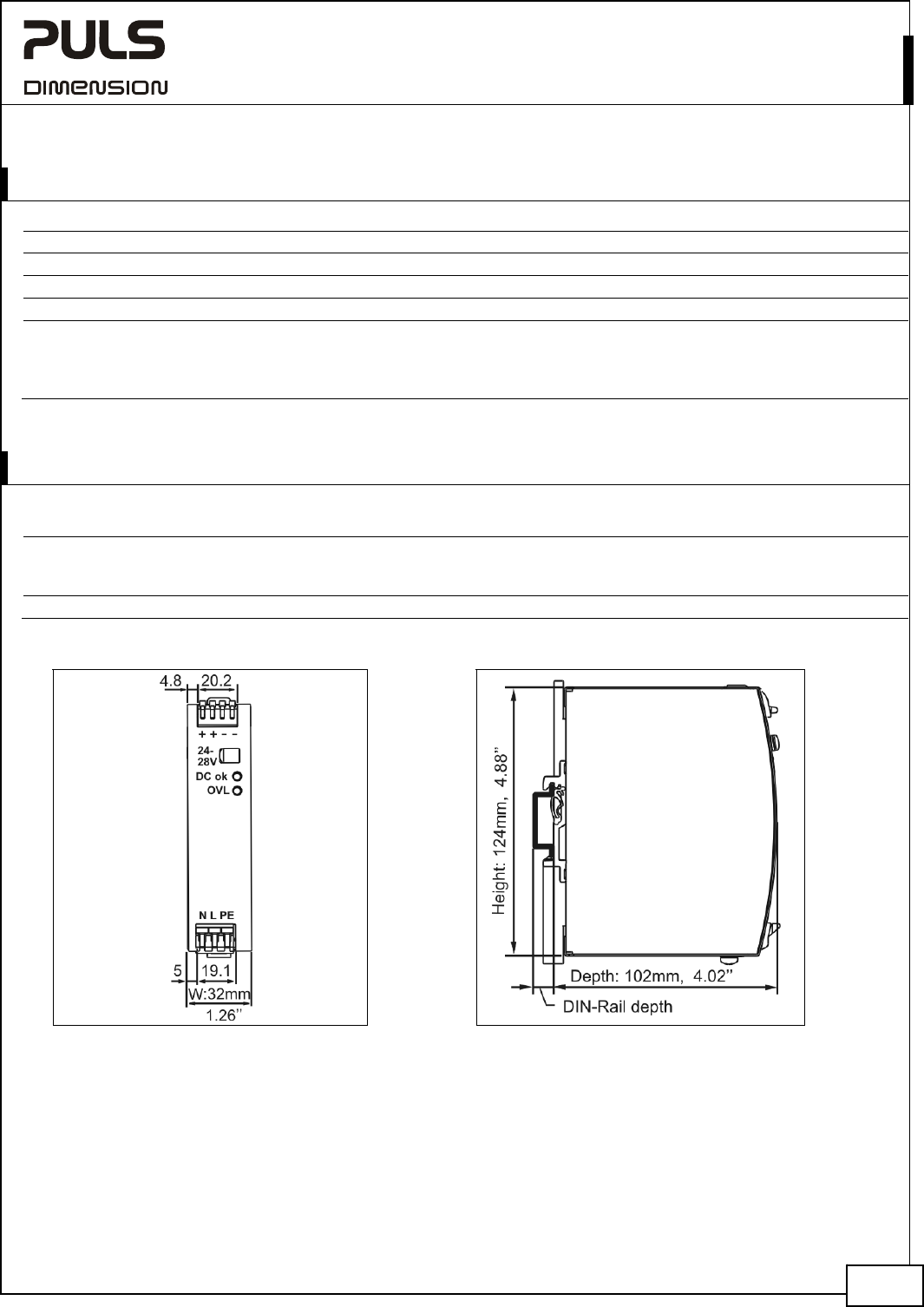

Fig. 21-1 Front view Fig. 21-2 Side view
