24V, 3.4A, SINGLE PHASE INPUT
12. FRONT SIDE AND USER ELEMENTS

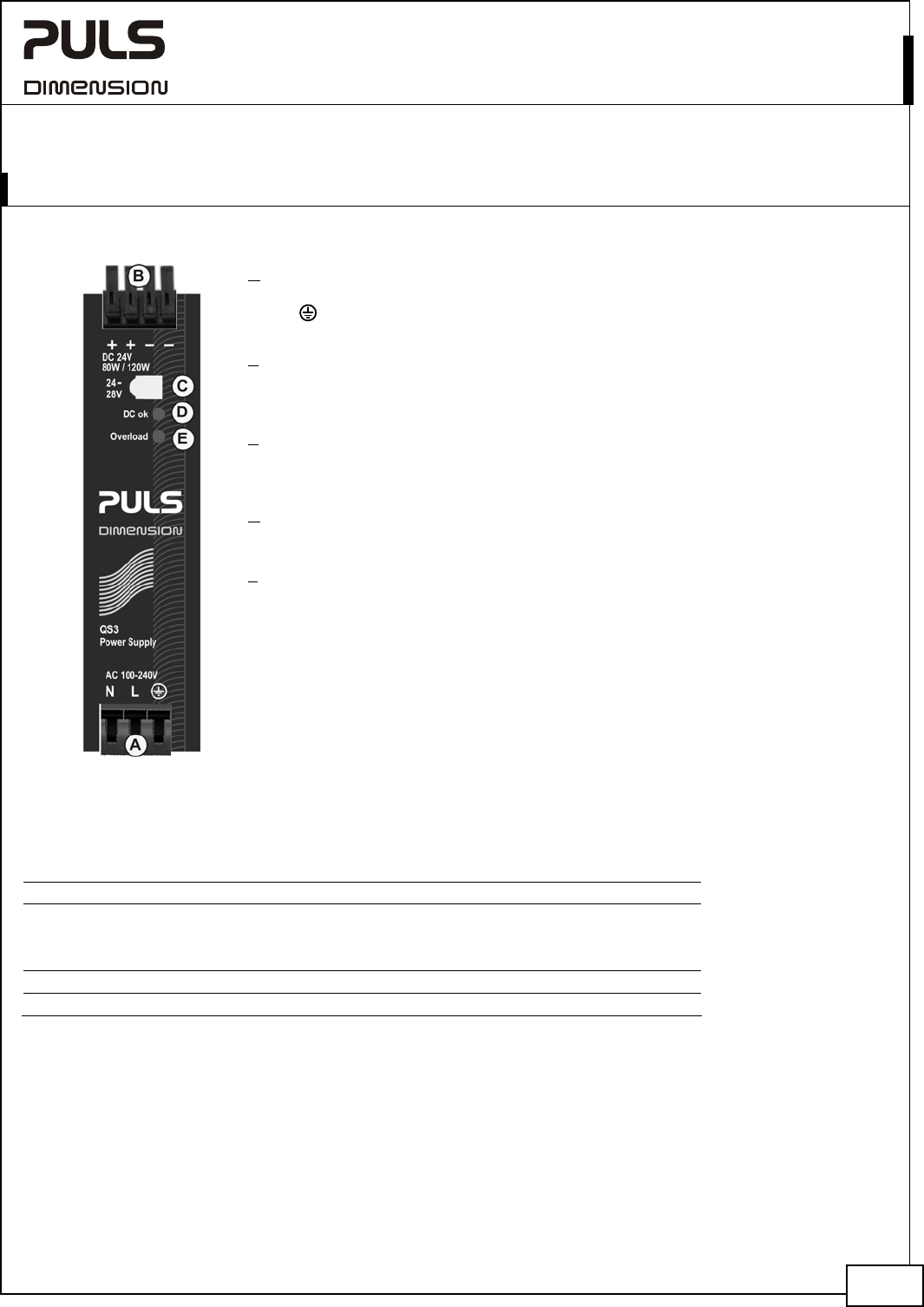

Fig. 12-1 Front side
A
Input Terminals (Quick-connect spring-clamp terminals)
N, L Line input
PE (Protective Earth) input
B
Output Terminals (Quick-connect spring-clamp terminals, two pins per pole)
+ Positive output
– Negative (return) output
C
Output voltage potentiometer
Multi turn potentiometer;
Open the flap to adjust the output voltage. Factory set: 24.1V
D DC-OK LED (green)
On, when the output voltage is >90% of the adjusted output voltage
E Overload LED (red)
On, when the voltage on the output terminals is <90% of the adjusted output
voltage, or in case of a short circuit in the output.
Input voltage is required
Flashing, when the unit has switched off due to over-temperature.
Indicators, LEDs
Overload LED DC-OK LED
Normal mode OFF ON
During BonusPower
®
OFF ON
Overload (VOUT < 90%) ON OFF
Output short circuit ON OFF
Temperature Shut-down Intermitted Intermitted
No input power OFF OFF
