18 Psion Teklogix 7530 G2 Hand-Held Computer Quick Reference Guide

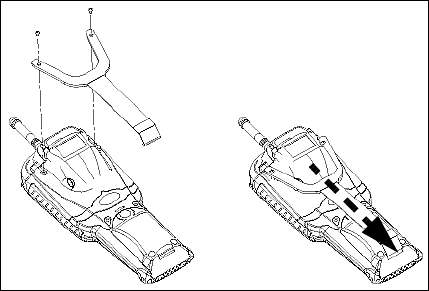

1.2 Attaching The Handstrap
Important: Do not use adhesives such as Loctite to secure the
screws on the carrying accessories. These chemicals
may damage the plastic casing.
Two Phillips head screws are provided with the handstrap.
• Use a Phillips screwdriver to attach the strap to the two
threaded inserts at the back of the 7530 G2 at the top of
the unit.
• Stretch the handstrap toward the base of the 7530 G2, and
hook the bottom of the handstrap into the slot near the base of
the battery pack.
1.3 Attaching A Pistol Grip
The pistol grip is attached to the back of the 7530 G2 using the four
threaded inserts in the upper part of the 7530 G2 casing. Four black
#4-40 Phillips head screws are provided with this accessory.
