WORKABOUT PRO Hand-Held Computer With Windows Mobile 6 Classic & Professional User Manual 223
Chapter 5: Settings
Proxy Server Setup
When you use programs such as Internet Explorer, your WORKABOUT PRO
automatically connects using private network settings under My Work Network or
Internet settings under My ISP, depending on specifications. You can determine how
your WORKABOUT PRO connects.
•Tap Start>Settings. Tap on the Connections tab followed by the Connec-
tions icon.

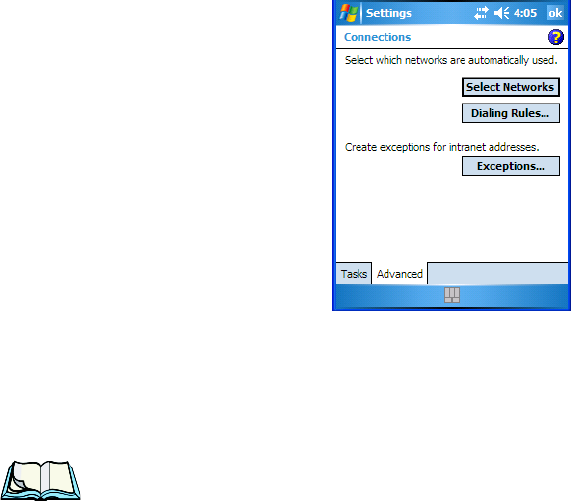

• Tap on the Advanced tab.
• Tap on Select Networks.
• In the appropriate lists, choose My ISP or My Work Network.
5.33.8 Proxy Server Setup
Note: If you are connected to your ISP or private network during synchroniza-
tion, the WORKABOUT PRO will download the appropriate settings dur-
ing synchronization from your PC. If these settings are not on your PC, or
if they need to be changed, you’ll need to set up the proxy server connec-
tion manually.
To set up the proxy server connection manually, you’ll need the following
information: proxy server name, server type, port, type of Socks protocol used and
the user name and password.
•Tap Start>Settings. Tap on the Connections tab followed by the Connec-
tions icon.
